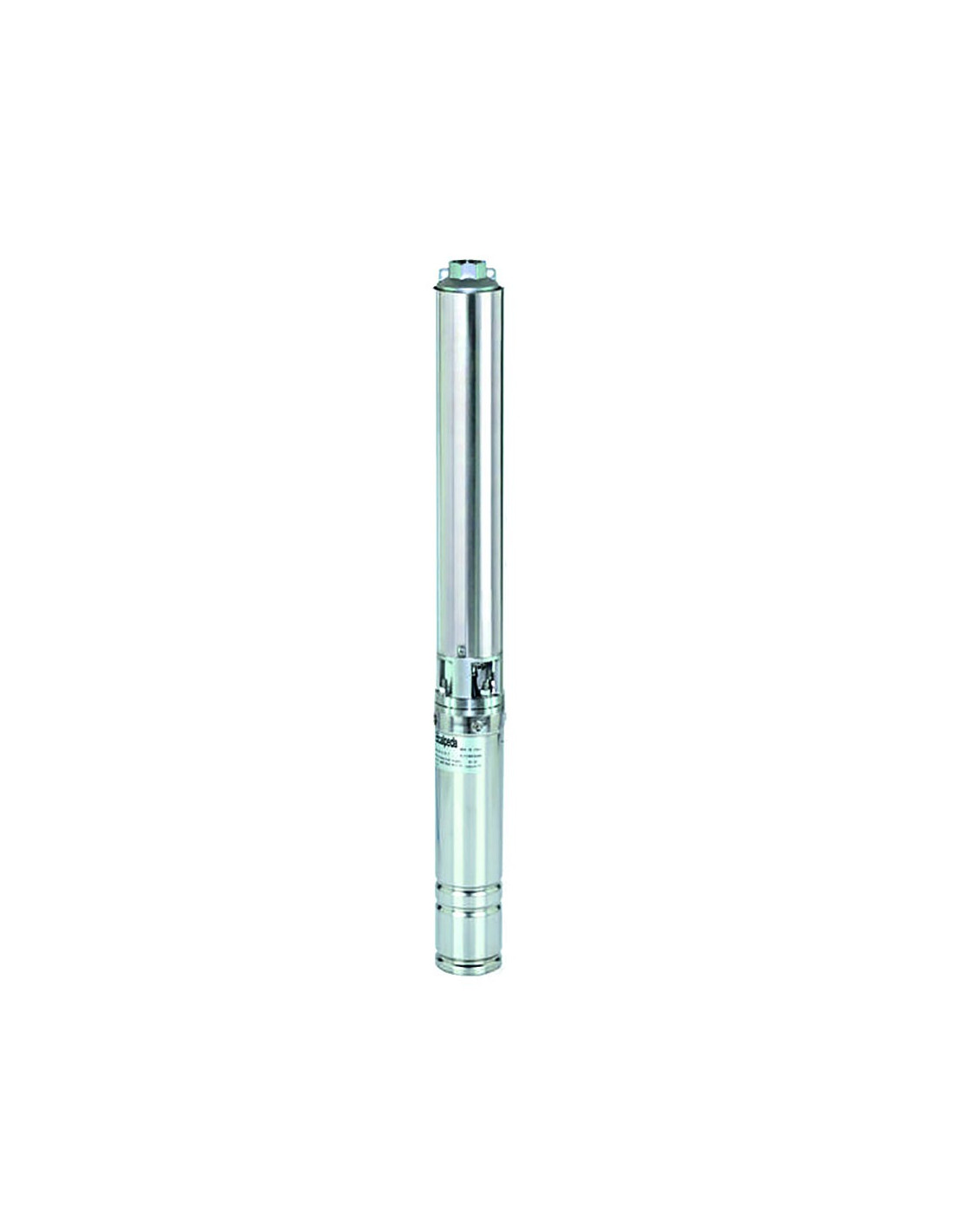

CALPEDA 4SDF 16 stainless steel 4" borehole pump - 400V - 1.2 m3/h View full size

CALPEDA 4SDF 16 stainless steel 4" borehole pump - 400V - 1.2 m3/h

Calpeda 4SDF 16 stainless steel borehole pump 4", with a flow from 1 to 1.5 m3/h, DN 100 for pumping in deep wells. NEMA standard. Power from 0.37 kw to 2.20 kw. Three-phase 400V.


More details

Availability: Less than 10 days


Notify me when available

563,88 € TTC

6 other products in the same category:

Pump with floating turbines for drilling 4". Use for clean liquids, with a quantity of sand to 150g/m3 in the body pump.

Characteristics of 4SDF pump :
- CALPEDA 4" encapsulated motor (DN 100) - 2900 rpm - IP 68 (continuous service)
- Three-phase 400V - 50Hz
- CALPEDA hydraulics 4" multi-stages, (all made in stainless steel)
- impeller and diffusor in NORYL
- Maxi start-up to 20/h (at regular interval)
- Temperature of liquid until + 30°C

- In-built non-return valve.

Characteristics of 4SDF 16 submersible pump for dilling 4" - 400V
 Model Reference Power
(kw)
Intensity
(A)
Voltage
400 (V)
Stages
(nomber)
4SDF 16/6 504 229 0.37 1.2 Three-phase 6
4SDF 16/9 504 230 0.37 1.2 Three-phase 9
4SDF 16/14 504 231 0.55 1.5 Three-phase 14
4SDF 16/19 504 232 0.75 2.0 Three-phase 19
4SDF 16/27 504 233 1.10 2.9 Three-phase 27
4SDS 16/37 504 234 1.50 4.2 Three-phase 37
4SDF 16/46 504 235 2.20 5.5 Three-phase 46
4SDF 16/55 504 236 2.20 5.5 Three-phase 55





Flow rate of 4SDF 16 pump - Discharge heighter
Flow m3/h  0.3  0.6 0.9  1.2  1.5 1.8 2.1 2.4
l/min 5 10 15 20 25 30 35 40

16/6
Total discharge heighter
in meter

35.1 33.6 31.5 28.6 25.1 21 16.3 11.1
16/9 52.7 50.4 47.5 42.9 37.6 31.4 24.4 16.6
16/14 82 78.5 73.4 66.8 58.5 48.9 38 25.8
16/19 111 106 100 90.6 79.6 66.4 51.5 35.1
16/27 158 151 142 129 113 94.3 73.2 49.8
16/37 217 207 194 176 155 129 100 68.3
16/46 269 258 241 219 192 161 125 84.9
16/55 322 308 288 262 230 192 149 102
