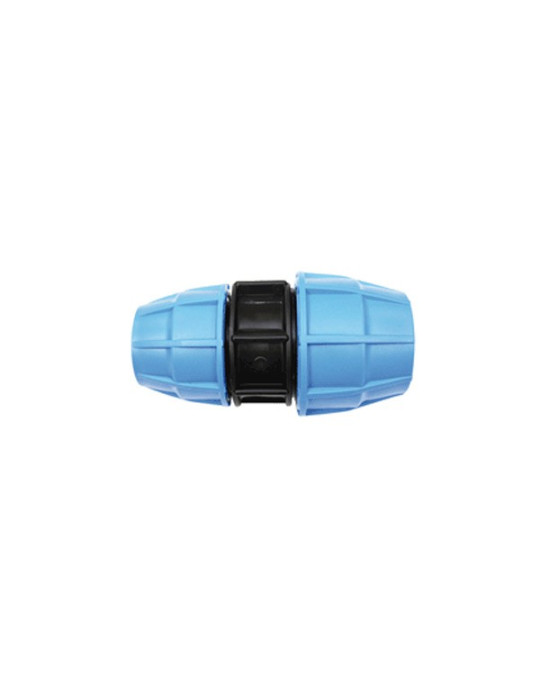

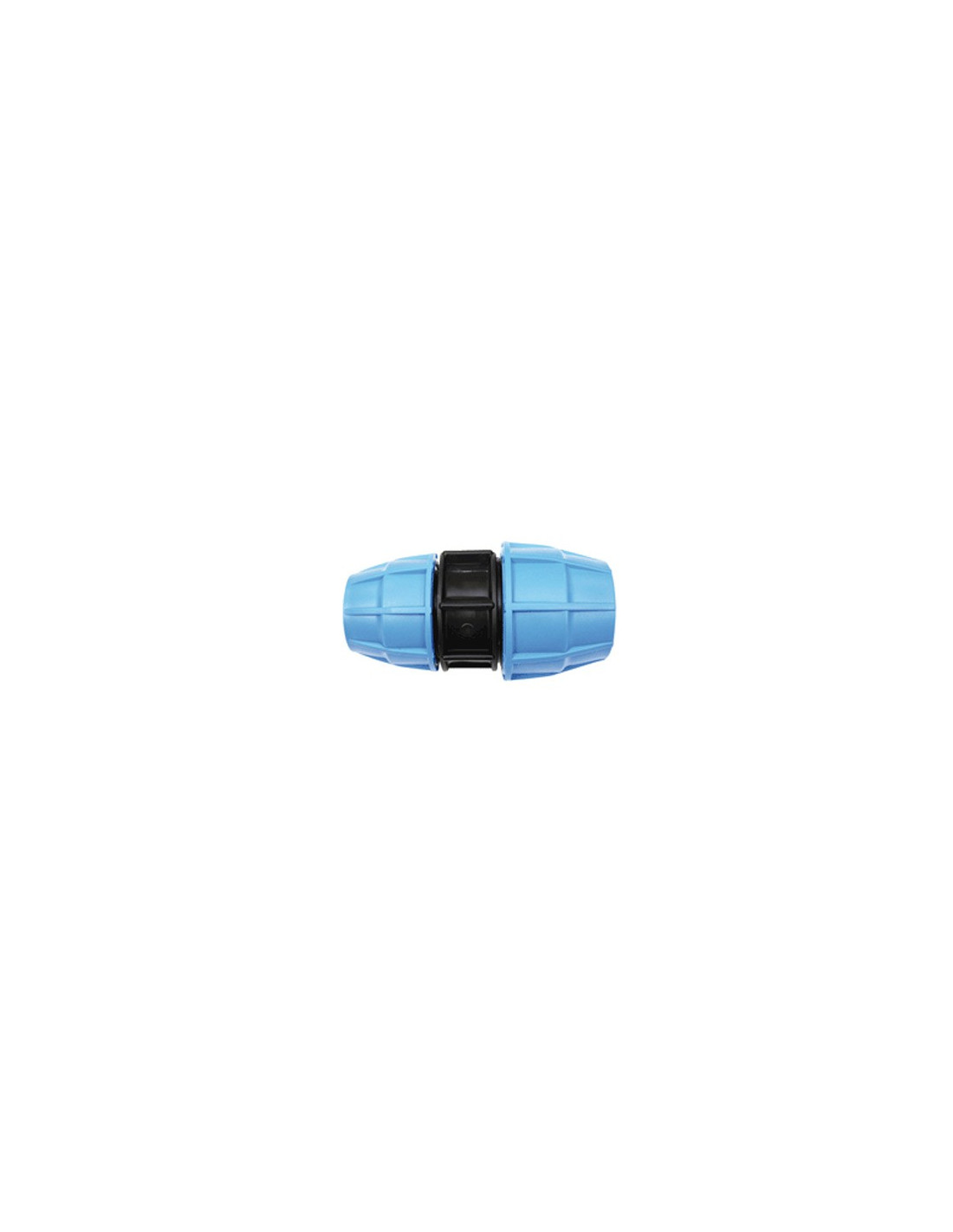

Manchon d'accouplement

Reducing coupling for PE pipe

170043

Reducing coupling, for PE pipe, polypropylene fitting with external clamping, NBR lip seal - pipe fitted without dismantling the fitting.

Model
Attributs
The product is not available for order.
Image Ref. Model
Reducing coupling for PE pipe
170043 DN 20/16
Reducing coupling for PE pipe
170044 DN 25/20
Reducing coupling for PE pipe
170045 DN 32/25
Reducing coupling for PE pipe
170046 DN 40/32
Total: 0,0
All prices with tax included.
Description

Fittings that clamp onto the outside of the pipe.

Use :
water distribution and supply networks.

Construction:
 - Polypropylene end connector and retaining ring.
- Nylon clamping ring.
- NBR lip seal.
- Tapered threaded connection.
- TS: - 10 °C to + 45 °C.

Advantages:
 - Tube fitting without dismantling the fitting (NBR lip seal).
- ACS quality.
- Very good pressure resistance.

Reference Nominal Diameter Length (mm) Weight (Kg)
170043 20/16 98.5 0.058
170044 25/20 106 0.090
170045 32/25 120 0.130
170046 40/32 144 0.224
