Manchon d'accouplement polypropylène serrage extérieur PN16

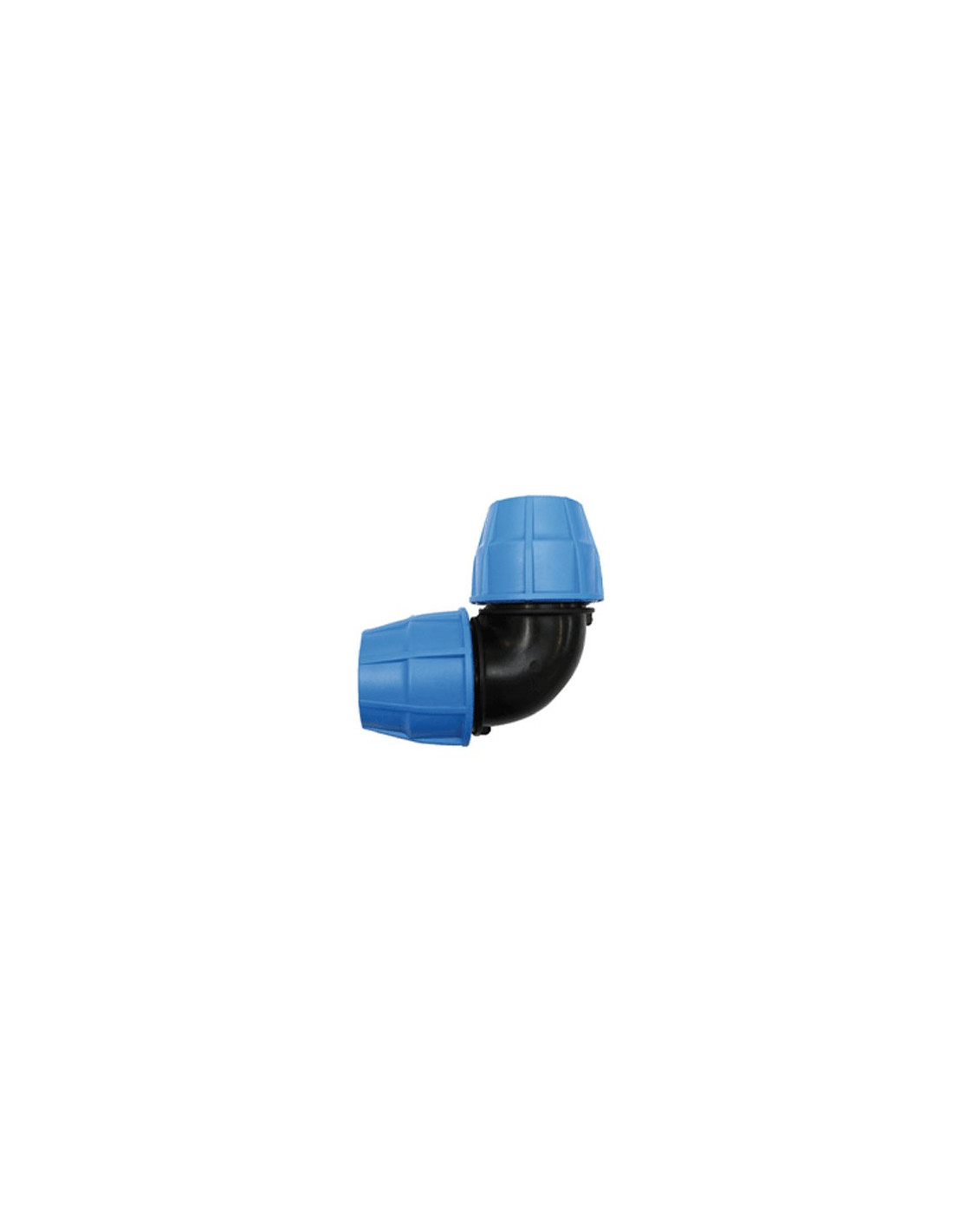

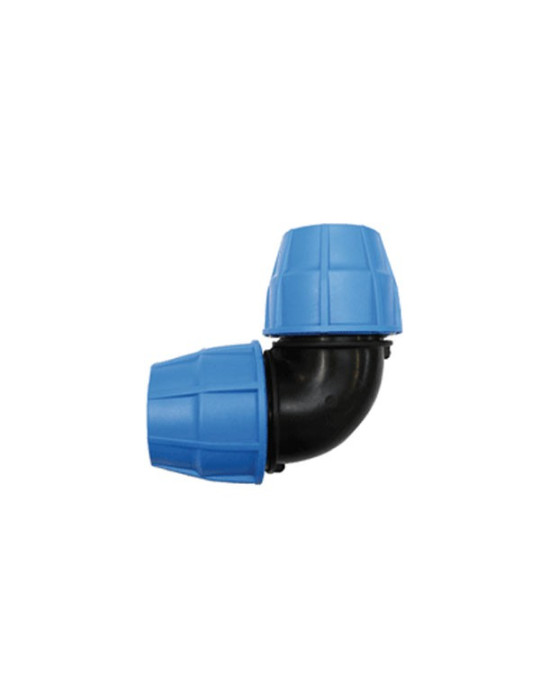

90° elbow, socket, for PE pipe

170068
Delivery 2 to 4 days
€3.50

€3.50 tax excl.

90° elbow coupling for PE tube, polypropylene compression fitting, NBR lip seal - tube fitting without dismantling the fitting.

Model

Attributs
Image Ref. Model Unit price Avail. Buy
90° elbow, socket, for PE pipe
170068 DN 20
€3.50
Available
90° elbow, socket, for PE pipe
170069 DN 25
€4.52
Available
90° elbow, socket, for PE pipe
170070 DN 32
€4.87
Available
90° elbow, socket, for PE pipe
170071 DN 40
€6.28
Available
90° elbow, socket, for PE pipe
170072 DN 50
€8.61
Available
90° elbow, socket, for PE pipe
170073 DN 63
€11.64
Available
90° elbow, socket, for PE pipe
170074 DN 75
€18.78
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Fittings that clamp onto the outside of the pipe.

Use : water distribution and supply networks.

Construction:
- Polypropylene end piece and retaining ring.
- Nylon clamping ring.
- NBR lip seal.
- Tapered threaded connection.
- TS: - 10 °C to + 45 °C.

Advantages:
- Pipe can be fitted without dismantling the fitting (NBR lip seal).
- ACS quality.
- Very good pressure resistance.

Reference Diameter
Nominal		 Length
Height
(mm)		 Weight
(Kg)
170067 16 77 0.046
170068 20 100  0.084
170069 25 110 0.116
170070 32 140 0.194
170071 40 160 0.336
170072 50 190 0.512
170073 63 215 0.864
170074 75 245 1.336



90° elbow, socket, for PE pipe









Product Details
3598781110690
