Vanne sphérique laiton 3 voies passage réduit - Lumière en L

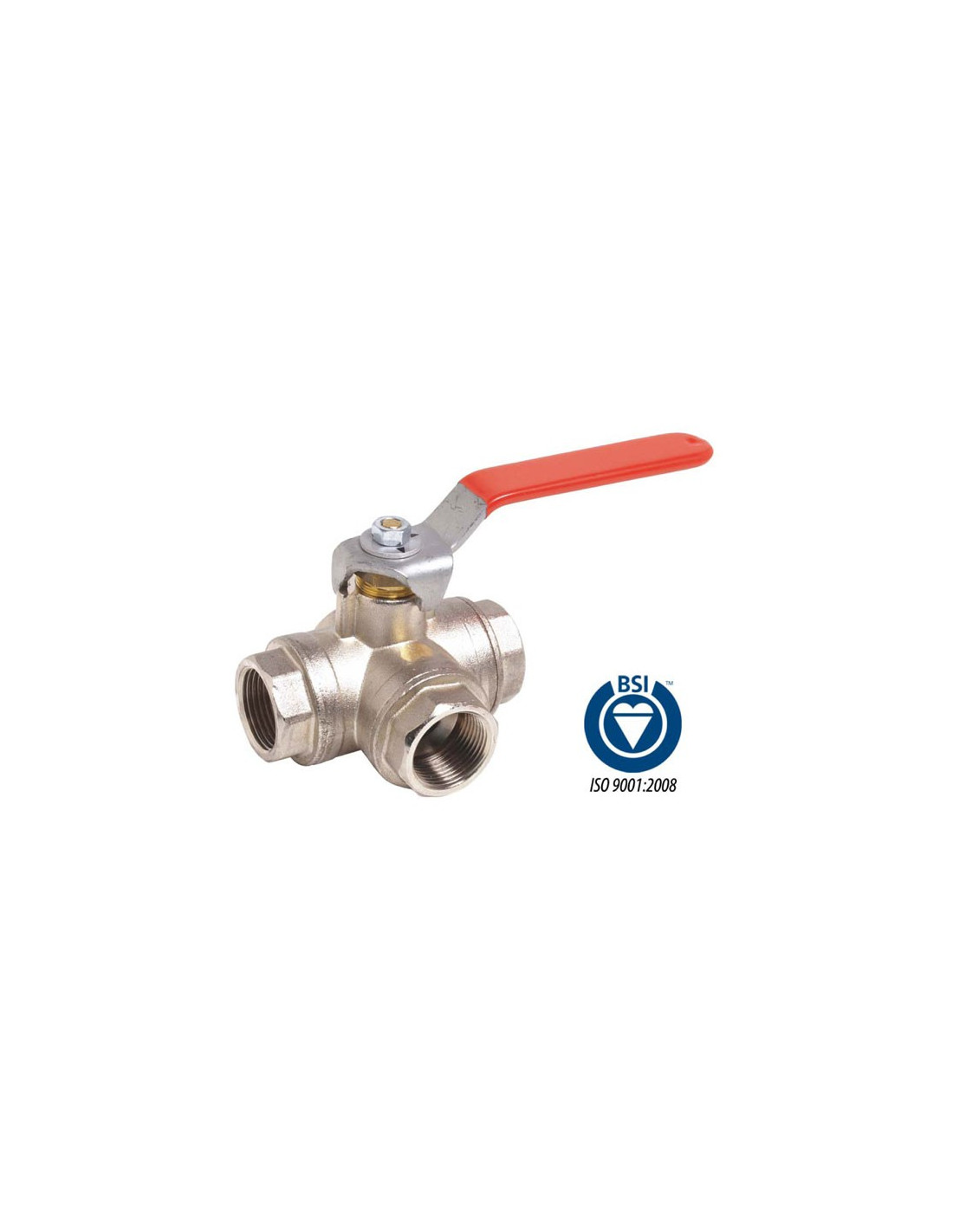

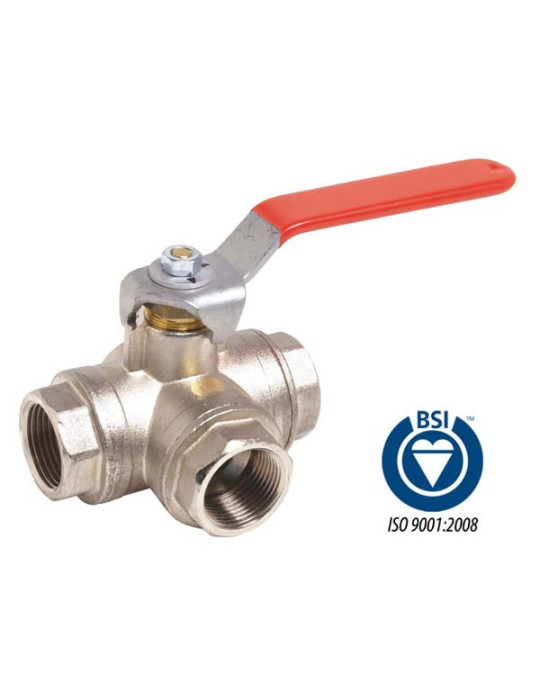

Brass 3-way ball valve reduced bore - T-port

110363
Delivery 2 to 4 days
$59.22

$59.22 tax excl.

Brass 3-way ball valve PN16 threaded, reduced bore, 2 positions, T-port, for compatible fluids, available from 1/2" to 1".

Model

Attributs
Image Ref. Model Unit price Avail. Buy
Brass 3-way ball valve reduced bore - T-port
110363 1/2"
$59.22
Available
Brass 3-way ball valve reduced bore - T-port
110365 1"
$110.52
Available
Brass 3-way ball valve reduced bore - T-port
110364 3/4"
$82.31
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Use:
- Compatible with common fluids.

Construction:
- Brass body and ball.
- Reduced bore.
- PTFE gland.
- Two NBR O-rings.
- PTFE ball seals.
- Parallel female BSP connection.

Model 1/2" 3/4" 1"
Reference 110363 110364 110365
Bore (mm) 10 15 20
Face-to-face (mm) 82 90.5 105
PN (bar) 16
Max temp. -10 °C to +120 °C
Weight (Kg) 0.60 0.90 1.12
