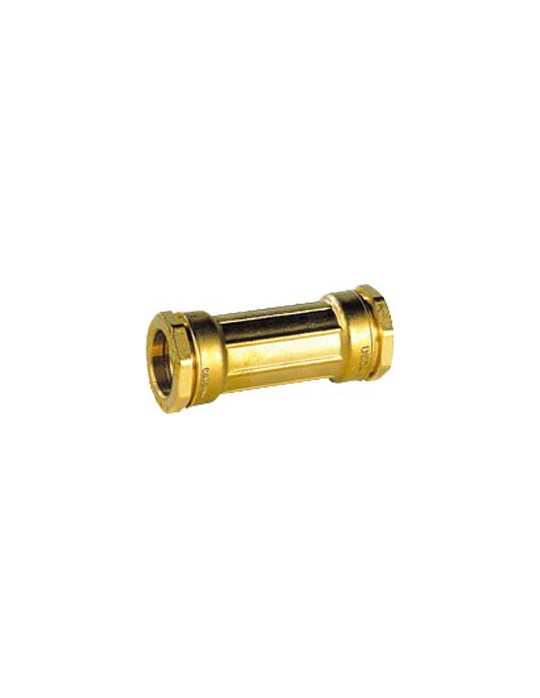

Manchon de réparation laiton pour tube PE- PN16

DECA brass equal repair coupling

153085
Delivery 3 to 5 days
€24.58

€24.58 tax excl.

Repair coupling for PE hoses, CW617N brass clamping coupling.

Ø nominal

Attributs
Image Ref. Ø nominal Unit price Avail. Buy

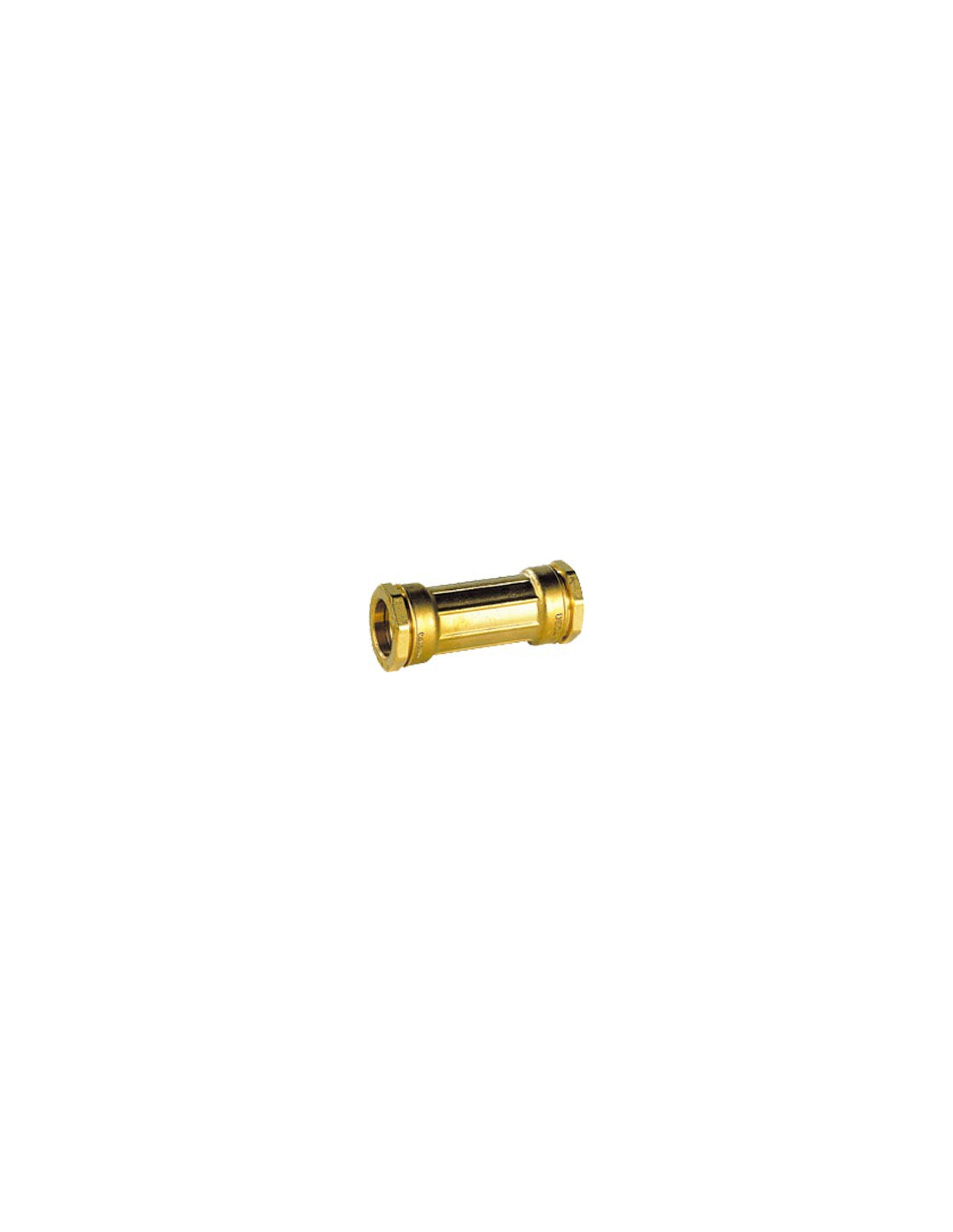

DECA brass equal repair coupling
153085 25
€24.58
Available
DECA brass equal repair coupling
153086 32
€31.42
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- 2 equal PE outlets.
- Compensation ring, grip ring, end piece and fitting in CW617N brass to EN 12165.
- NBR O-ring.
- Deep tube insertion.
- High grip ring with 3 ridges.
- Nominal pressure: PN 16 bar.
- Service temperature: TS 40°C.

Diameter
Nominal
 25 32
Length
(mm)		 125 127
Weight
(Kg)		 0.367 0.524
Reference 153085 153086
