Vanne sphérique Inox 304 sans rétention alimentaire DIN M/F

DIN M/F food-grade 304 stainless steel ball valve with no product retention

Reference 114066

Delivery 2 to 3 days

£129.77

£129.77 tax excl.

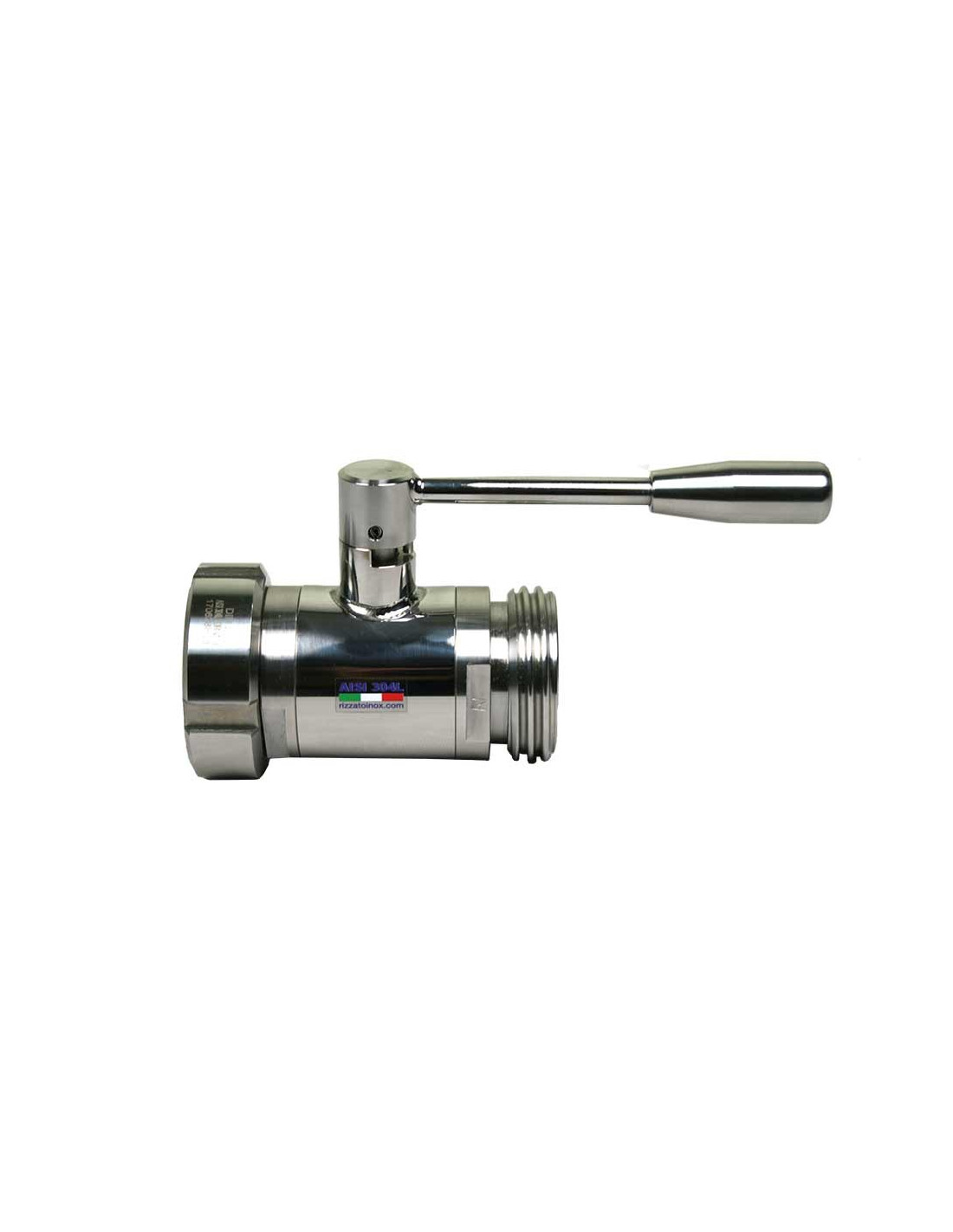

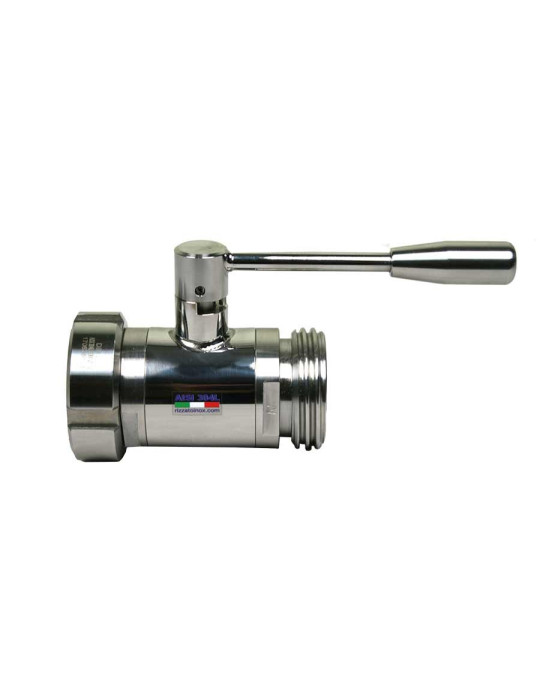

Ball valve with DIN threaded / male/female nut, PTFE gasket and seal guaranteeing no product retention, entirely made of AISI 304 stainless steel. The valve is certified for food products and liquids and complies with standard DIN 11851 for use in the food, brewing and wine-making industries. Available in DIN 25 and 40 diameters.

Diameter

Attributs

Image	Ref.	Diameter	Unit price	Buy
	114066	25	£129.77	Sum.:
	114067	40	£176.52	Sum.:
Total: 0,0 All prices with tax included.

Product is available
Out of stock

Product is no longer in stock
Can be back-ordered

Product is no in stock, but is allowed to be back-ordered

Description

Ball valve made of 304 stainless steel, DIN threaded/nut connection - male/female. The no-retention valve stands out from standard valves thanks to a PTFE and EPDM seal that prevents products from stagnating inside. This valve is certified for food products and liquids and is widely used in breweries, distilleries, the food industry and many other sectors that require equipment that ensures food safety.

Certification:
- DIN11851 certifies that the product is suitable for use in the food and chemical industries.
- FDA standard, title 21 CFR and related parts.
- MOCA certified.
- European Regulation EC 1935/2004.

DN (mm)	Reference	Material	Temperature °C	Max pressure (bar)
25	114066	Aisi 304	-10°C / +90°C	20
40	114067	Aisi 304	-10°C / +90°C	15

Part	Material	Description
1	Aisi 304	Handle
2	Aisi 304	Stem
3	EPDM	O-ring
4	Aisi 304	End
5	Aisi 304	Ball
6	PTFE	Gasket
7	EPDM	O-ring
8	Aisi 304	Body
