Application:
- Suction up to 7 m below the pump level.
- Clear water pumping.
- Fire-fighting and fire prevention.
- Water transfer, irrigation, dewatering.

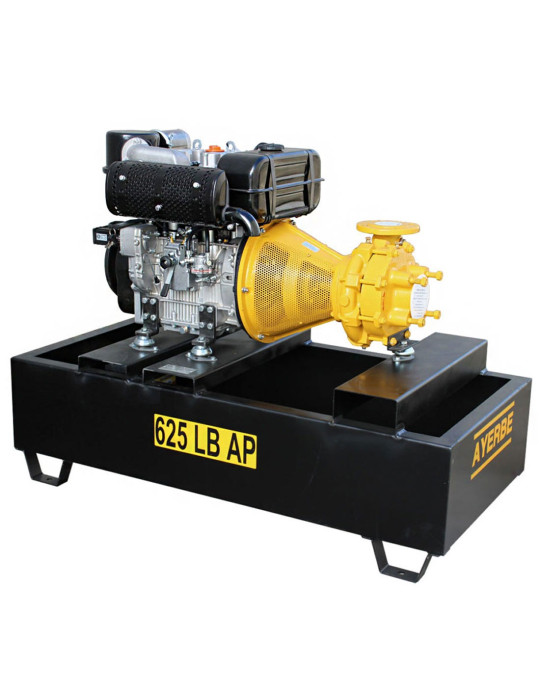

Motor and pump specifications:
- LOMBARDINI KOHLER diesel engine.
- Cast iron pump body.
- Cast iron impeller and diffuser.
- Electric start, battery supplied.
Supplied:
- With installation and maintenance instructions, CE certificate.
| Model | AY - 820 AP | AY - 477 AP | AY - 625 BP | AY - 625 AP |
|---|---|---|---|---|
| Reference | 225262 | 225263 | 225264 | 225265 |
| Power (HP) | 15 | 22.8 | 28.5 | 28.5 |
| KOHLER engine DIESEL |
4 LD 820 | 12 LD 477.2 | 9 LD 625.2 | 9 LD 625.2 |
| Max flow rate (m3/h) | 78 | 82 | 130 | 78 |
| Min. flow rate (m3/h) | 10 | 10 | 60 | 27 |
| Max pressure (bar) | 7.6 | 8.5 | 6.0 | 12.0 |
| Pressure (mWC) | 76 - 10 | 85 - 17 | 60 - 30 | 120 - 10 |
| Suction diameter (mm) |
DN65 | DN65 | DN100 | DN80 |
| Diameter Delivery (mm) |
DN65 | DN50 | DN80 | DN65 |
| Tank (L) | 25 | 37 | 37 | 37 |
| Dimensions (mm) | 700 x 648 x 500 | 1050 x 595 x 565 | ||
| Weight (Kg) | 160 | 190 | 164 | 170 |
