Flexible FDA NBR refoulement alimentaire 1" BSP F inox 316 - ALFAFOOD

FDA NBR food-grade delivery hose 1" BSP F 316 stainless steel - ALFAFOOD

137036
Delivery 2 to 4 days
$128.49

$128.49 tax excl.

rating Read the review
Average rating: 10/10 Number of reviews: 1

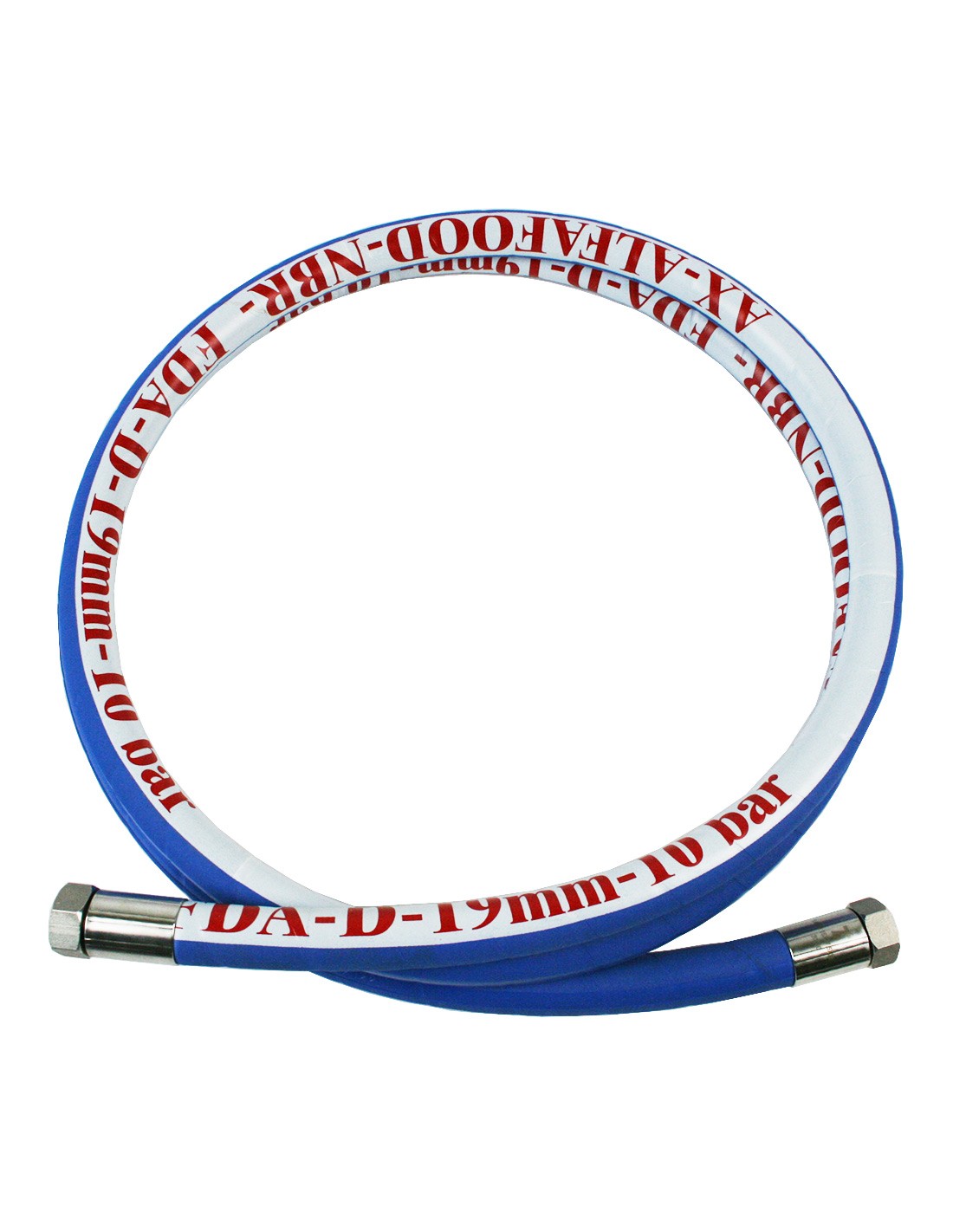

ALFAFODD FDA delivery hose, fitted with two 1" BSP female 316 stainless steel couplings with 316 stainless steel swivel nut, PTFE gasket, crimped stainless steel ring. Universal hose for the food industry, dairies, oil, hot water up to 85°C, white NBR inner lining, homogeneous, non-porous, odour neutral. Working pressure up to 10 bar, FDA compliant.

Length

Attributs
Image Ref. Length Unit price Avail. Buy
FDA NBR food-grade delivery hose 1" BSP F 316 stainless steel - ALFAFOOD
137036 1 m
$128.49
Available
FDA NBR food-grade delivery hose 1" BSP F 316 stainless steel - ALFAFOOD
137037 2 m
$150.83
Available
FDA NBR food-grade delivery hose 1" BSP F 316 stainless steel - ALFAFOOD
137038 3 m
$171.31
Available
FDA NBR food-grade delivery hose 1" BSP F 316 stainless steel - ALFAFOOD
137039 5 m
$229.05
Available
FDA NBR food-grade delivery hose 1" BSP F 316 stainless steel - ALFAFOOD
137040 10 m
$340.77
Available
FDA NBR food-grade delivery hose 1" BSP F 316 stainless steel - ALFAFOOD
137041 15 m
$441.33
Available
FDA NBR food-grade delivery hose 1" BSP F 316 stainless steel - ALFAFOOD
137042 20 m
$541.89
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

The ALFAFODD FDA hose is a universal hose for discharge in the food industry, slaughterhouses, dairies, cheese factories, the fish processing industry, oil mills, milk transport, large butchers, whey, hot water up to +85°C, or for any other food product, not containing alcohol.

Specifications:
- Inner lining, smooth white NBR, synthetic thread reinforcement, resistant to oil and grease, resistant to abrasion.
- Outer lining , smooth white NBR, resistant to ozone, weather, UV, oil and grease; resistant to abrasion.
- MARKING: FDA.
- Use: -30°C to + 85°C.
- Female fittings with 1" 316 stainless steel swivel nuts, crimped with stainless steel rings.

BSP
Female		 Hose
(mm)
 Reference Length
(m) 		PS
(bar)		 Weight
(kg)
1" 25 137036 1 10 1.0
137037 2 1.3
137038 3 1.6
137039 5 2.2
137040 10 3.7
137041 15 5.2
137042 20 8.2

- Strongly not recommended for hydrocarbons and derivatives.
