Flexible EPDM FDA DN40 CLAMP 64 - ALCOMIL 140°
Flexible EPDM FDA DN40 CLAMP 64 - ALCOMIL 140°

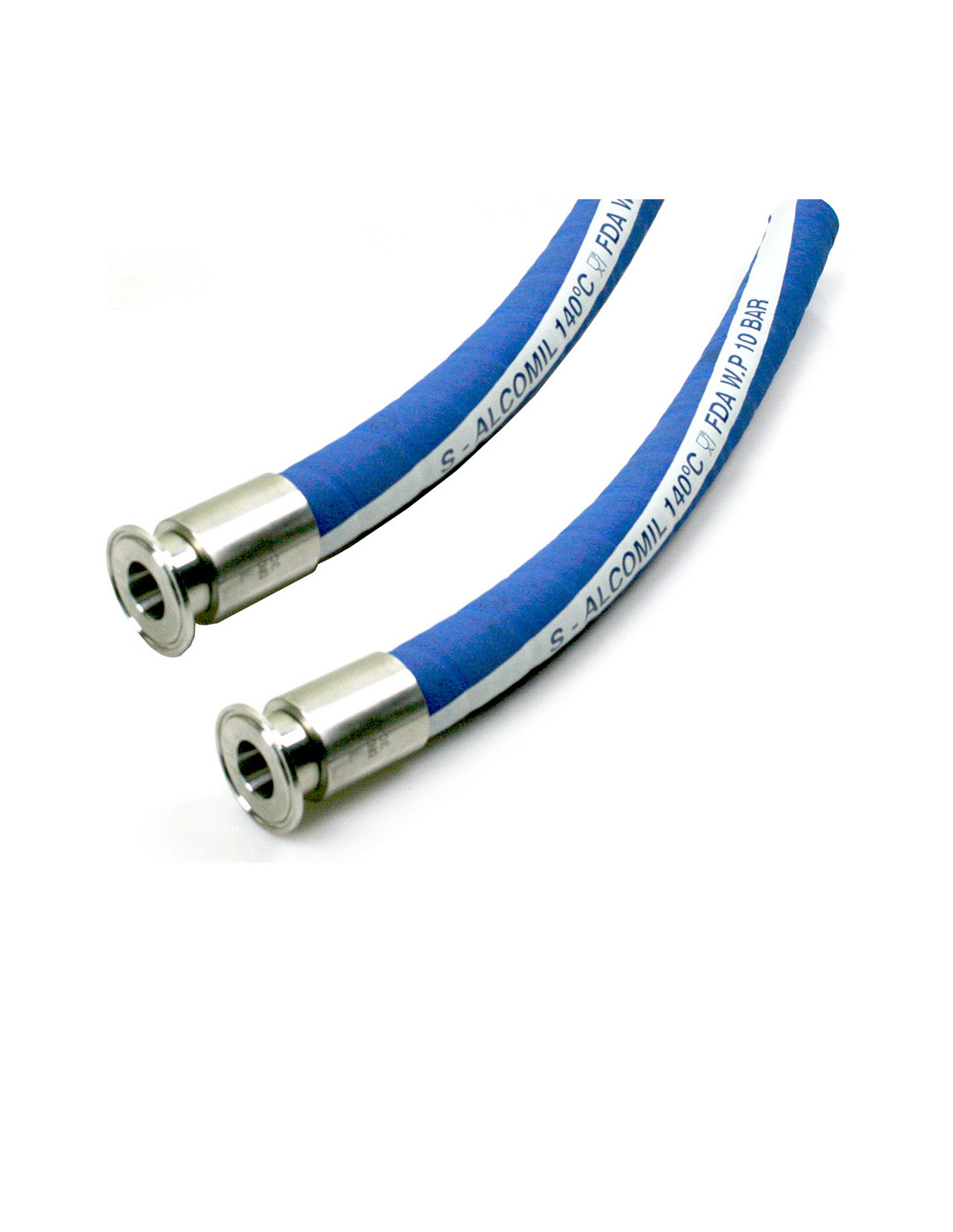

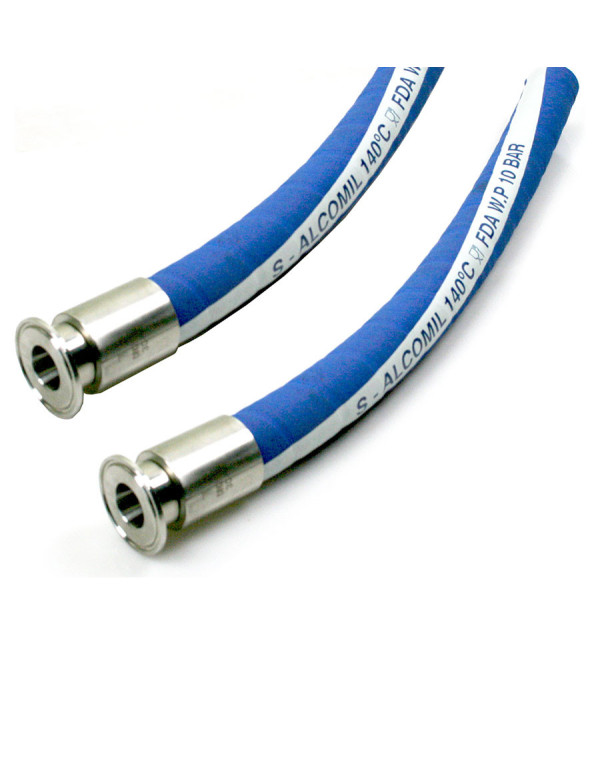

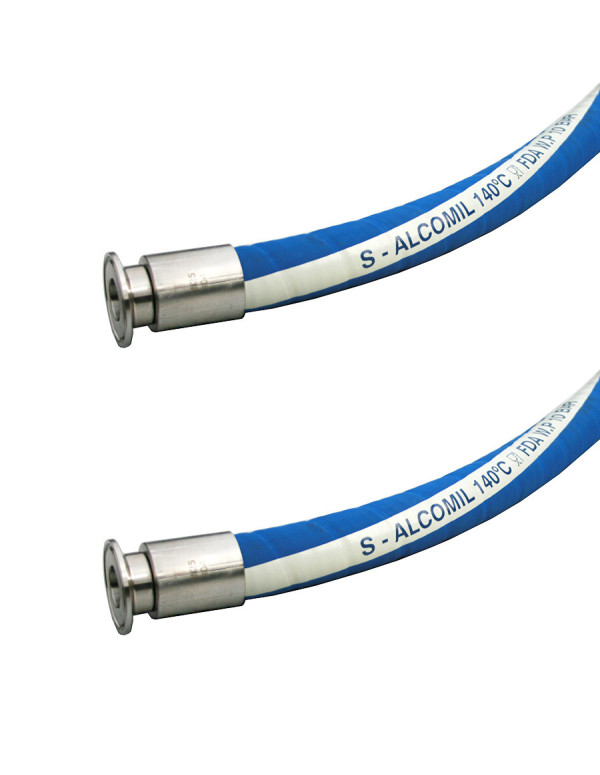

EPDM food-grade hose DN40 CLAMP 64 - ALCOMIL 140°

137398
Delivery 3 to 5 days
$201.11

$201.11 tax excl.

D38 EPDM hose, white with smooth interior, for suction and delivery of food liquids such as milk, wine, beer, cider, fruit juices, drinking water, alcohol up to 50% (not suitable for fatty products). Fitted with two Clamp 1" 1/2 64mm ferrule 316 stainless steel fittings crimped with a stainless steel ring.

Length

Attributs
Image Ref. Length Unit price Avail. Buy
EPDM food-grade hose DN40 CLAMP 64 - ALCOMIL 140°
137398 1 m
$201.11
Available
EPDM food-grade hose DN40 CLAMP 64 - ALCOMIL 140°
137399 2 m
$236.49
Available
No image 137400 3 m
$269.08
Available
EPDM food-grade hose DN40 CLAMP 64 - ALCOMIL 140°
137401 5 m
$338.91
Available
EPDM food-grade hose DN40 CLAMP 64 - ALCOMIL 140°
137402 8 m
$442.26
Available
EPDM food-grade hose DN40 CLAMP 64 - ALCOMIL 140°
137403 10 m
$510.23
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- Multilayer inner tube in smooth white food-grade EPDM, reinforced with a double embedded metal helix, odourless, high-strength synthetic plies, outer blue EPDM, fabric-impression finish, resistant to weathering, ozone and abrasion,
- Marking: S - ALCOMIL 140° + + FDA W.P 10 BAR.
- Temperature: - 30°C + 100°C (Sterilisation at 140° for 30 min).
- Standards: According to FDA 21 CFR 177 2600 and EU no. 1935/2004 and 2023/2006.
- 2 CLAMP 316 stainless steel fittings with DN38 socket, 64 mm ferrule, crimped with serrated stainless steel skirts.

Diameter
nominal		 Diameter
ferrule (mm)		 Reference Length (m) Max temp.
(°C)		 PS
(bar)
CLAMP
1" 1/2 - DN38		 64 137398 1 100 10
137399 2
137400 3
137401 5
137402 8
137403 10
