Use:
- AGRICULTURE with abrasion-resistance requirements, for use on front boom or in spreading techniques without a towed slurry tanker.
- Delivery of water, loaded water, slurry or waste water...
Composition:

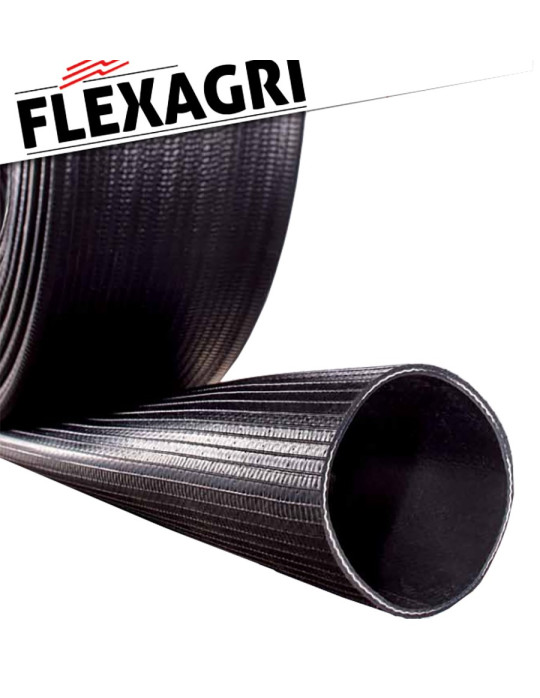

- WOVEN JACKET made of 100% synthetic yarns.
- INNER LINING in Nitrile elastomer.
- OUTER COVER in Nitrile elastomer, with external anti-abrasion grooves.
- COLOUR: black.
Specific features:
- Abrasion resistant thanks to the reinforced thickness of the hose outer cover.
- Resistant to weather conditions, protected against ozone and U.V., and retains all its technical characteristics at low or high ambient temperatures (-20°C to +80°C).
- Heat resistant up to +150°C.
- Flexible hose that is easy to handle. Compact when stored flat.
| Int. Ø (mm) |
Length (m) | Reference | Thickness (mm) | Weight (gr/m) |
PS max (bar) |
Tensile strength at break (tonnes) |
|---|---|---|---|---|---|---|
| 75 | 20 | 135690 | 3.2 | 850 | 16.5 | 8.8 |
| 90 | 20 | 135691 | 3.2 | 1100 | 16.5 | 10.9 |
| 102 | 20 | 135692 | 3.2 | 1350 | 15 | 13.2 |
| 127 | 20 | 135693 | 3.3 | 1700 | 15 | 17.0 |
| 152 | 20 | 135694 | 3.4 | 1900 | 15 | 17.6 |
| 204 | 20 | 135695 | 3.8 | 3500 | 10 | 28.2 |
| 254 | 20 | 135696 | 3.4 | 4600 | 10 | 43.2 |
