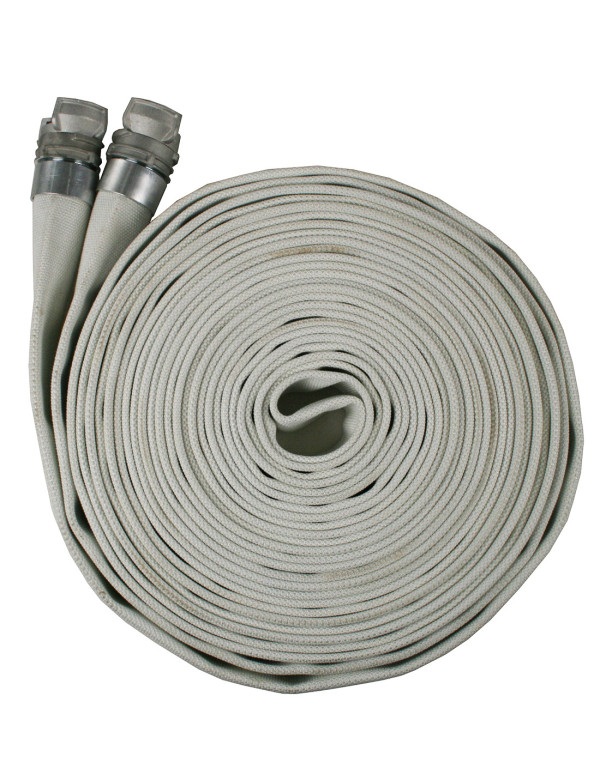

Kit tuyau plat incendie raccords Guillemin DN65 sertis (lg 20 ou 40 m)
Kit tuyau plat incendie raccords Guillemin DN65 sertis (lg 20 ou 40 m)
Kit tuyau plat incendie raccords Guillemin DN65 sertis (lg 20 ou 40 m)
Kit tuyau plat incendie raccords Guillemin DN65 sertis (lg 20 ou 40 m)

Flat fire hose DN65/70 Guillemin crimped - PS 15 bar

153994
Delivery 2 to 4 days
€240.00

€240.00 tax excl.

DN70 class A fire hose, with 2 Guillemin DN65 couplings, 70 mm serrations, aluminium ring crimped. Sold in lengths of 20 or 40 metres, PS 15 bar.

Length

Attributs
Image Ref. Length Unit price Avail. Buy
Flat fire hose DN65/70 Guillemin crimped - PS 15 bar
153994 20 m
€240.00
Available
Flat fire hose DN65/70 Guillemin crimped - PS 15 bar
153995 40 m
€397.50
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- Roll-up lay-flat water delivery hose, for fire-fighting and industry.
- Outer: polyester weft and warp.
- Inner: EPDM synthetic rubber.
- Very light and easy to handle.
- Operating temperature: -20 °C to +70°C.
- Coil: 20m and 40m - Colour: White.
- Standards: NF S61112, Class A.
- Supplied with two Guillemin DN65 couplings, 70 mm ferrule, crimped with aluminium skirt.

Uses:
- Discharge and transport of water under pressure

Fittings
Guillemin		 Hose
 Reference Length
(m) 		PS
(bar)		 Pressure
Test pressure (bar)		 Weight
coil (kg)
65 70 153994 20 15 30 10.5
153995 40 20.0
