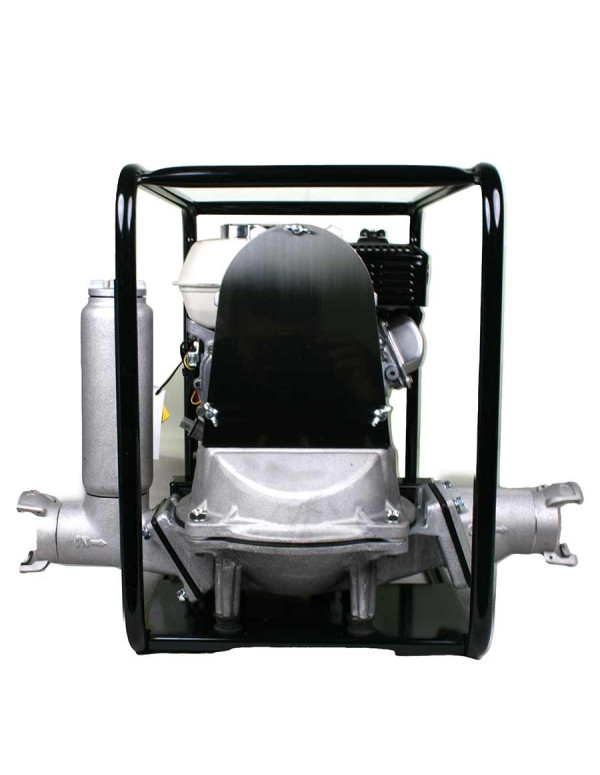

Motopompe essence 5.5 CV (à membrane) Tsurumi TD 300 HA
Motopompe essence 5.5 CV (à membrane) Tsurumi TD 300 HA
Motopompe essence 5.5 CV (à membrane) Tsurumi TD 300 HA
Motopompe essence 5.5 CV (à membrane) Tsurumi TD 300 HA
Motopompe essence 5.5 CV (à membrane) Tsurumi TD 300 HA
Motopompe essence 5.5 CV (à membrane) Tsurumi TD 300 HA

Engine-driven pump for loaded water Tsurumi TD 200-300 HA

225243
Delivery 3 to 5 days
$3,193.60

$3,193.60 tax excl.

Petrol engine-driven, self-priming pump up to 8m, for pumping loaded liquids, viscous liquids, slurry, septic tank pumping and viscous sludge. 4-stroke petrol engine, neoprene diaphragm pump. Particle size 40 mm.

Diameter

Attributs
Image Ref. Diameter Unit price Avail. Buy
Engine-driven pump for loaded water Tsurumi TD 200-300 HA
225160 DN 50
$2,569.78
Available
Engine-driven pump for loaded water Tsurumi TD 200-300 HA
225243 DN 80
$3,193.60
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Applications:
- Very high suction capacity for pumping loaded water, waste water, viscous liquids, slurry, septic tank emptying, liquid silt and viscous sludge.
- Water: loaded, dirty and waste water that may contain viscous matter, maximum particle size 40 mm.
- Self-priming up to 7/8 m water column height.

Construction:
- Pump body in pressure die-cast aluminium.
- Neoprene diaphragm.
- Rigid connecting rod, compensation bell, reduction gear.
- Rubber ball check valve.
- Enclosing tubular frame.

Engine:
- Unleaded petrol engine, HONDA 4-stroke, compliant with environmental exhaust gas standard no. 2002-88-EC, with low oil safety cut-out.

Delivery:
- In an individual reinforced carton with instructions, CE certificate, spark plug spanner, hose fittings, clamps and strainer.

Options:
- Hoses, fire-fighting couplings, transport trolleys, floats.

Model TD 200 HA TD 300 HA
Reference 225160 225243
4-stroke petrol engine HONDA GX120 HONDA GX160
Power (HP) 4 5.5
Inlet/outlet diameter (mm) 50 80
Running time (h) 2H00 2h30
Max flow rate (m3/h) 7.2 14.4
Max. pressure (m) 15 15
Max pressure (bar) 1.5 1.5
Particle size (mm) 40 40
Dimensions (cm) 65 x75 x 687 66 x 42 x 51
Weight (Kg) 42 45
