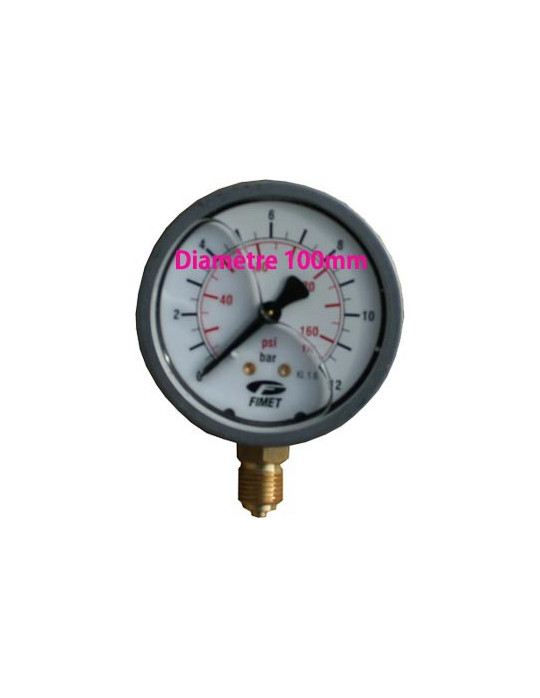

Manomètre radial Ø100 inox à glycérine

Radial manometer Ø100 stainless steel glycerin

100023
Delivery 2 to 4 days
€37.33

€37.33 tax excl.

Radial manometer Ø100 stainless steel casing with glycerin bath manometers. Instrument used for measuring the pressure of liquids and gases.

Pressure

Attributs
Image Ref. Pressure Unit price Avail. Buy
Radial manometer Ø100 stainless steel glycerin
100023 0 - 6 bars
€37.33
Available
Radial manometer Ø100 stainless steel glycerin
100024 0 - 10 bars
€37.33
Available
Radial manometer Ø100 stainless steel glycerin
100025 0 - 16 bars
€37.33
Available
Radial manometer Ø100 stainless steel glycerin
100026 0 à 25 bars
€37.33
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

It measures the pressure of any fluid and gas that is not highly viscous, crystallising, or corrosive to copper and tin alloys. Specially designed to withstand high vibration.

Use:
- For all gaseous fluids and non-viscous or non-crystallising liquids that do not attack copper alloys.
- Hydraulics, compressors and shipbuilding.
- Minimum and maximum permissible temperature Ts: 0°C to +60°C.

Specifications:
- 304 stainless steel case.
- Brass Bourdon tube tin-soldered.
- Brass fitting.
- Polycarbonate window.
- Glycerine filled.
- IP65 protection.
- BSP fittings.



Range
(bar)		Reference Pressure
(bar)		Graduation
(bar)		Connection
0 - 6 100023 0 to 6 0.1 1/2"
0 -10 100024 0 to 10
0 - 16 100025 0 to 16 0.2
0 - 25 100026 0 to 25 0.5


Standards:
- Manufactured to ISO 9001: 2008.
- Designed to EN 837-1.
- DIRECTIVE 97/23/EC: products excluded from the directive (article 3, § 3 ).
