FDA food hose - brewery - distillery - alcohol - (cut to length)

135192

UPE hose, very handy and light, FDA compliant, special for breweries, wineries, resistant to liquids with an alcohol concentration of up to 100%, for the food industry in general, patented red EPDM exterior, smooth white UPE interior made of synthetic fibre, ozone, UV and weather resistant, up to 40 m in one length

Diameter
Attributs
The product is not available for order.
Image Ref. Diameter
FDA food hose - brewery - distillery - alcohol - (cut to length)
135192 25
FDA food hose - brewery - distillery - alcohol - (cut to length)
135193 32
Total: 0,0
All prices with tax included.
Description

Uses:
- Discharge.
- Breweries, wine-making.
- Distilleries, presses, beverages.
- Food industry, bottling plants.
- Food liquids.
- Resistant to common detergents and disinfectants.

Specifications :

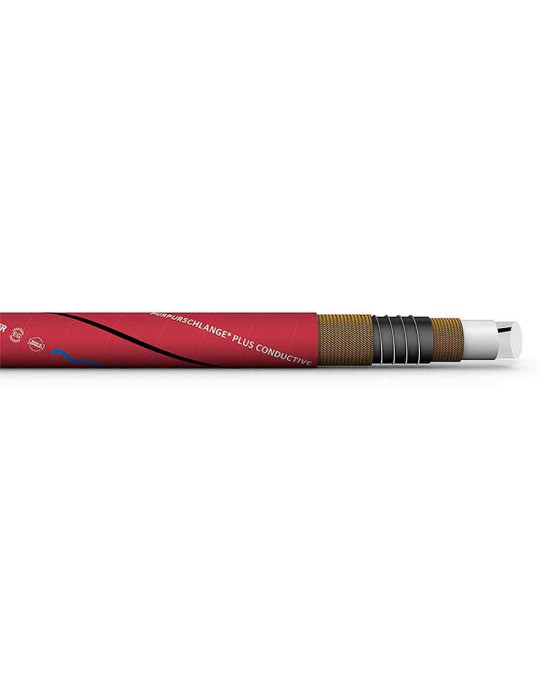

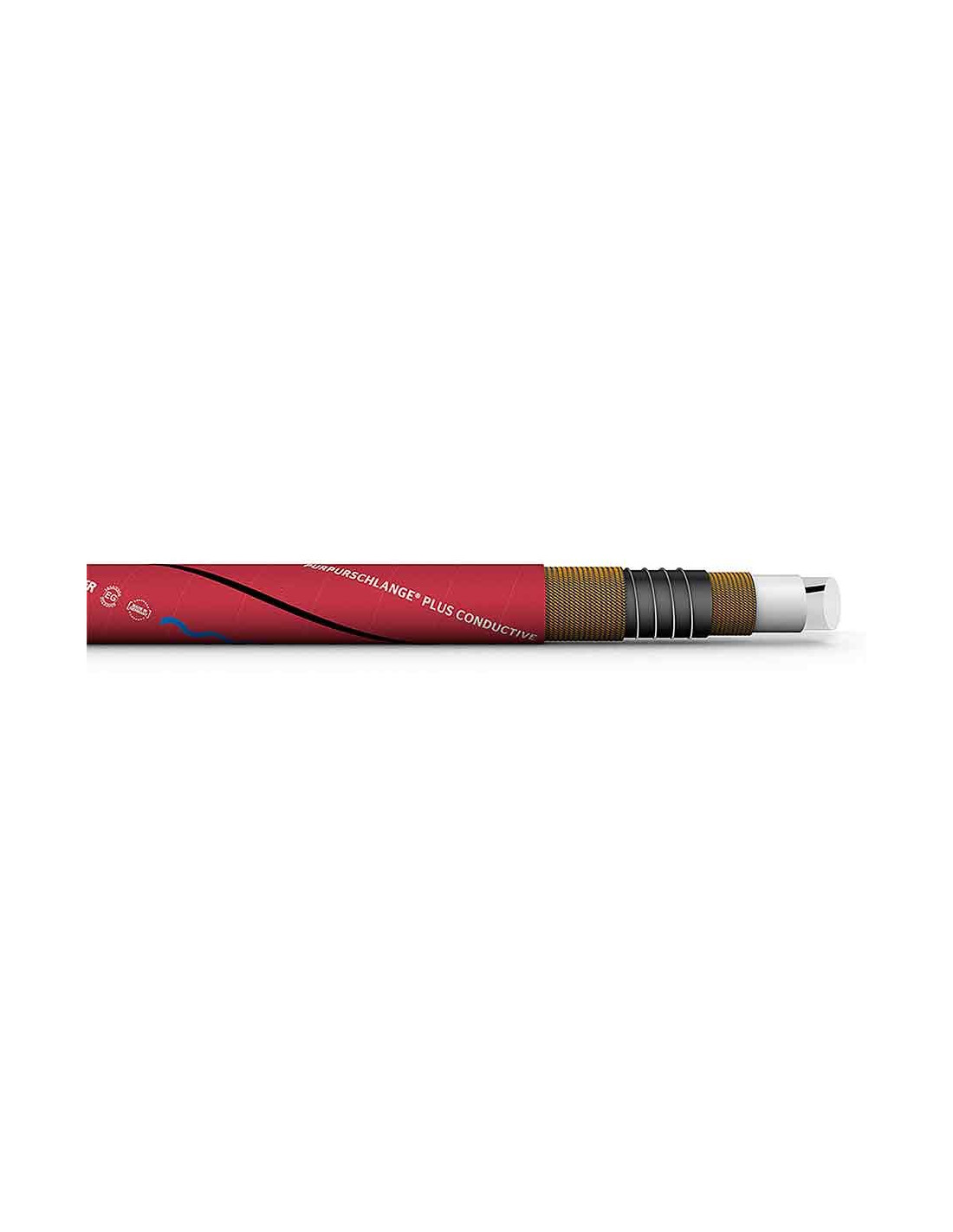

- Model: PURPLE SNAKE PLUS CONDUCTIVE.
- Smooth white UPE inner lining in synthetic fibres.
- Patented red EPDM outer layer, designed for the food industry.
- Specially designed for breweries, wine presses, bottling, and various processes in the beverage and food liquid industries.
- Resistant to alcohol-concentrated liquids up to 100%.
- Resistant to ozone, UV and weathering.
- Very easy to handle and lightweight.
- Compliant with recommendations EG 1935/2004 and EG 2023/2006, as well as XXI cat 2 standards. BFR and FDA (21 CFR 177.2600).
- 3-year warranty.
- Jup to 40 m in a single length.

Inside diameter
(mm & inch)		 Outer diameter
(mm)
 Reference Max temp.
(°C)		 PS
(bar)
25 - 1"
 37 135192 130 16
32 - 1" 1/4 46 135193 130 16


Other diameters available on request (see catalogue).
