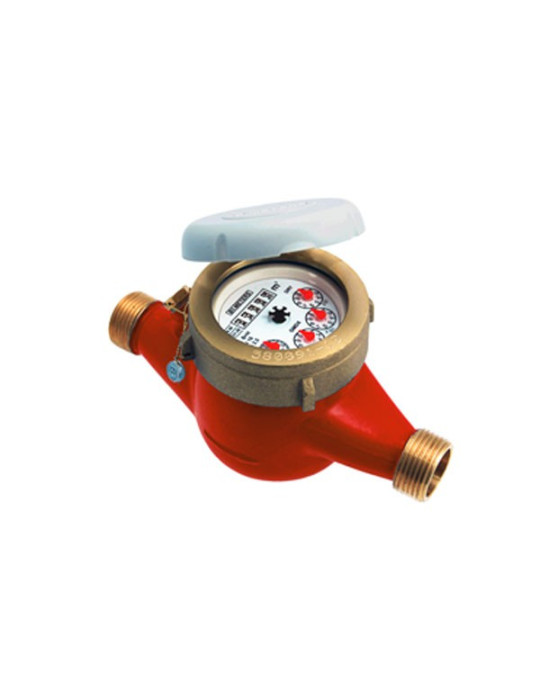

Compteur première prise eau chaude

First-connection multi-jet meter - Hot water

110184
Delivery 3 to 5 days
$175.04

$175.04 tax excl.

Hot water main meter, multi-jet, size 15 to 50, BSP male thread, dry dial, magnetic drive. ACS certified.

Model

Attributs
Image Ref. Model Unit price Avail. Buy
First-connection multi-jet meter - Hot water
110184 Calibre 15
$175.04
Available
First-connection multi-jet meter - Hot water
110185 Calibre 20
$192.27
Available
First-connection multi-jet meter - Hot water
110186 Calibre 25
$239.01
Available
First-connection multi-jet meter - Hot water
110187 Calibre 30
$257.82
Available
First-connection multi-jet meter - Hot water
110188 Calibre 40
$400.18
Available
First-connection multi-jet meter - Hot water
110189 Calibre 50
$421.67
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- Multi-jet turbine
- MID R50 in horizontal position only (observe the direction of flow shown by an arrow on the body)
- Dry dial (non-rotatable dial)
- Magnetic drive
- Direct roller reading
- Protective cover
- Brass body

Size152025304050
Reference 110184 110185 110186 110187 110188 110189
Connection 3/4" 1" 1" 1/4 1" 1/2 2" 2" 1:2
Face-to-face (mm) 165 190 260 260 300 300
Nominal flow rate (m3/h) 2.5 4 6.3 10 16 25
Max. flow rate (m3/h) 3.12 5 7.87 12.5 20 31.25
Min. flow rate (l/h)
 50 80 126 200 320 500
Sensitivity (l/h) 10 14 17 27 46 75
Max pressure (bar) 16
Min. reading (m3) 0.05
Max. reading (m3) 100.000
G (inch) 3/4" 1" 1" 1/4 1" 1/2 2" 2" 1/2
L (mm)
 165 190 260 260 300 300
Ø B (mm) 100 100 104 104 126 160
H (mm) 109 111 117 117 153 172
Weight (Kg) 1.35 1.45 2.04 2.11 4.58 7.25



First-connection multi-jet meter - Hot water



Standards:
- Manufactured to ISO 9001 : 2000 ICIM and IQNET standard
- DIRECTIVE 97/23/EC: Products excluded from the directive (article 1, § 3.2)
- MID 2004/22/EC approval in accordance with the European measuring instruments directive.
- Health conformity certificate A.C.S. N° 11 ACC LY 221
- Meters compliant with the Ukrainian standard UKRSEPRO
- Meters compliant with the food standard TIFQ DM 174/2004
