Specifications:

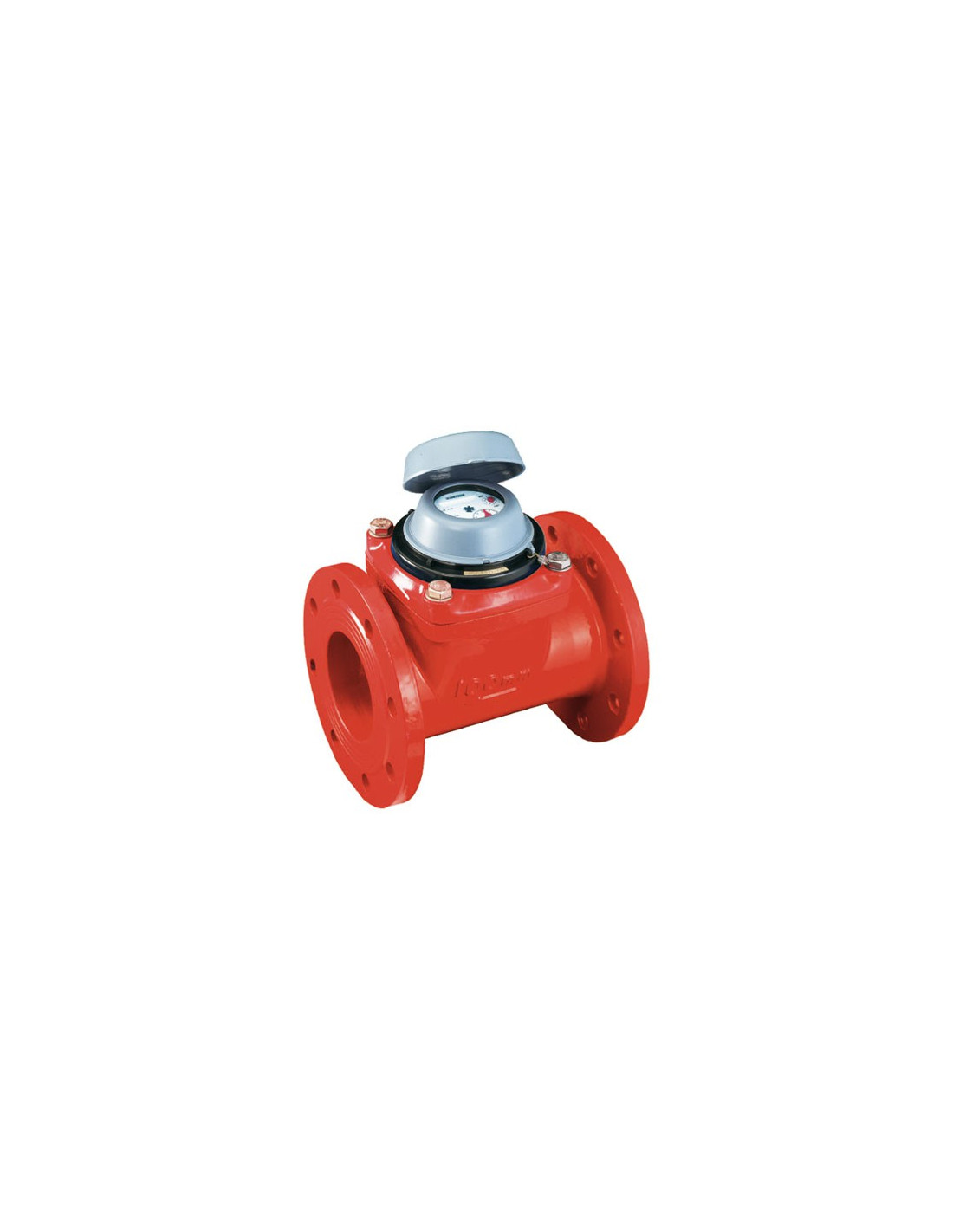

- Woltmann-type horizontal propeller with removable drum
- Class B in horizontal installation (observe the direction of flow shown by an arrow on the body)
- Class A in vertical installation and in horizontal installation with vertical dial (observe the direction of flow shown by an arrow on the body)
- Rotatable dry dial
- Magnetic drive
- Direct roller reading
- Protective cover
- Cast iron body
Uses:
- Water distribution networks.
- Min. and max. permissible temperature Ts: 30°C to + 90°C.
- Max. permissible pressure PN: 16 bar.
| Size | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
|---|---|---|---|---|---|---|---|
| Reference | 110234 | 110235 | 110236 | 110237 | 110238 | 110239 | 110240 |
| Face-to-face (mm) | 200 | 200 | 225 | 250 | 250 | 300 | 350 |
| Nominal flow rate (m3/h) | 15 | 25 | 40 | 60 | 100 | 150 | 250 |
| Max. flow rate (m3/h) | 30 | 50 | 80 | 120 | 200 | 300 | 500 |
| Min. flow rate Class B ± 5% error ( m3/h ) |
1 | 2 | 3.2 | 4.8 | 8 | 12 | 20 |
| Min. flow rate Class A ± 5% error ( m3/h ) |
3 | 5 | 8 | 12 | 20 | 30 | 50 |
| Transitional flow rate Class B / Class A ± 2% error ( m3/h ) |
3 | 5 | 8 | 12 | 20 | 30 | 50 |
| Max pressure (bar) | 16 | ||||||
| Min. reading (m3) | 0.002 | 0.02 | |||||
| Max. reading (m3) | 9999999 | ||||||
| Flange DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| Flange dimension (mm) | 165 | 185 | 200 | 220 | 250 | 285 | 340 |
| Number of holes | 4 | 8 | 12 | ||||
| Ø holes (mm) | 18 | 22 | |||||
| L (mm) | 200 | 200 | 225 | 250 | 250 | 300 | 350 |
| h (mm) | 75 | 83 | 95 | 105 | 120 | 135 | 160 |
| H (mm) | 125 | 126 | 172 | 172 | 172 | 172 | 201 |
| Weight (Kg) | 12.5 | 14 | 15 | 18 | 20 | 31.5 | 46 |
Standards:
- Manufactured to ISO 9001 -2000 ICIM and IQNET standard
- Flanges to EN 1092-1 PN16 standard
- DIRECTIVE 97/23/EC: Products excluded from the directive (article 1, § 3.2)
- EEC approval 75/33 ISO 4064
- Meters compliant with the Ukrainian standard UKRSEPRO
- Meters compliant with the Russian standard GOST-R
