Specifications :
- Used for suction and delivery of water, fire hydrants, loaded liquids, sea water, in public works, industry, agriculture, mining and various industrial applications, hot water up to 100°C with 316 stainless steel fittings.
- Inner tube: smooth black EPDM.
- Reinforcement: steel spiral + textile plies.
- Cover: black EPDM with cloth impression.
- Marking: EPDM WATER S/D PN 10 BAR.
- Liquid temperature: -20° +60°C with ALUMINIUM fittings.
- Liquid temperature: -20° +100°C with 316 STAINLESS STEEL fittings.
- Vacuum: 0.9 .
- P.L.N.E: Coef. 3 at 20°C.

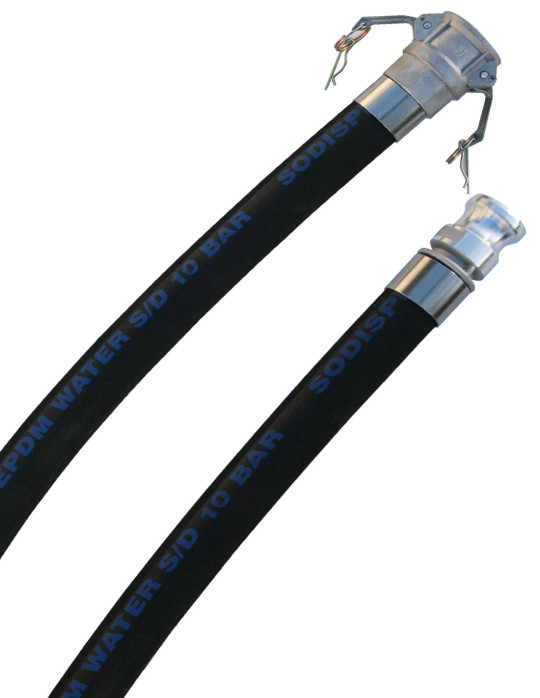

- With two DN65 Camlock couplings, adapter and coupler in aluminium or 316 stainless steel, aluminium or 316 stainless steel, crimped with stainless steel ring.
| Camlock coupling Aluminium |
Hose (mm) |
Reference | Length (m) |
PS at 20°C (bar) |
Weight (kg) |
|---|---|---|---|---|---|
| DN65 | 63 | 112475 | 2 | 10 | 5.0 |
| 112476 | 3 | 7.2 | |||
| 112477 | 4 | 9.3 | |||
| 112478 | 8 | 17.2 | |||
| 112479 | 10 | 21.1 | |||
| 112480 | 20 | 40.0 |
| Camlock coupling 316 STAINLESS STEEL |
Hose (mm) |
Reference | Length (m) |
PS at 20°C (bar) |
Weight (kg) |
|---|---|---|---|---|---|
| DN65 | 63 | 112483 | 2 | 10 | 5.4 |
| 112484 | 3 | 7.6 | |||
| 112485 | 4 | 9.7 | |||
| 112486 | 8 | 17.6 | |||
| 112487 | 10 | 21.6 | |||
| 112488 | 20 | 40.5 |
