Kit aspiration pompe inox - liquides alimentaire - eau potable - DN32 - 1" 1/4

Stainless steel 316 suction kit for drinking water - DN25 - 1"

112086
Delivery 2 to 4 days
€133.33

€133.33 tax excl.

rating Read the review
Average rating: 10/10 Number of reviews: 1

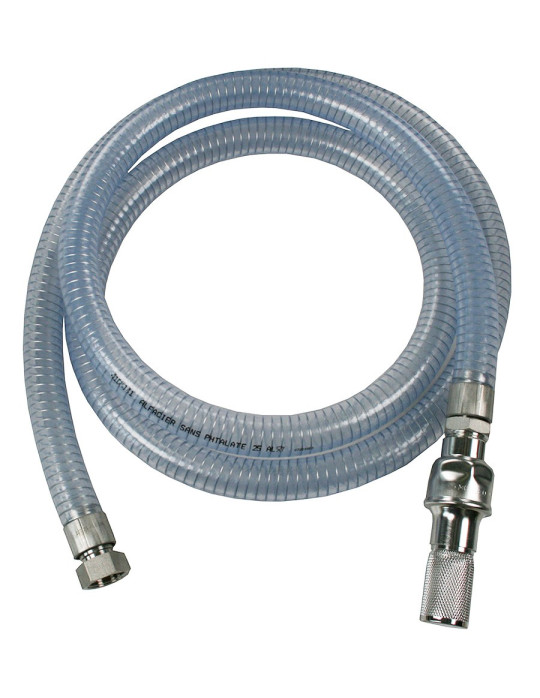

Reinforced flexible PVC hose kit, with check valve strainer and 316 stainless steel fittings, suction of food liquids up to 15°, drinking water, clean liquids... Except liquids and fats. 1" connection, DN25 hose (inside), available in 3 m, 5 m, 7 m and 10 m kits. Supplied crimped with stainless steel ring.

Length

Attributs
Image Ref. Length Unit price Avail. Buy
Stainless steel 316 suction kit for drinking water - DN25 - 1"
112086 3 m
€133.33
Available
Stainless steel 316 suction kit for drinking water - DN25 - 1"
112087 5 m
€149.00
Available
Stainless steel 316 suction kit for drinking water - DN25 - 1"
112088 7 m
€164.33
Available
Stainless steel 316 suction kit for drinking water - DN25 - 1"
112089 10 m
€187.33
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Use:
- Suction of drinking water.
- Suction of food liquids according to simulants A, B and C, up to 15° alcohol, drinking water, clean liquids...
- Strictly prohibited for transporting fatty products (vegetable oils - milk).

Composition of the kit:
- 1 length of PVC STEEL SPIRAL hose 25 mm (inside), plasticised and reinforced with a galvanised steel spiral, very flexible, even at low temperatures.
- 1 Threaded male barbed fitting 1" BSP-M, 316 stainless steel.
- 1 Female barbed fitting with swivel nut 1" BSP-F, 316 stainless steel, PTFE sealing gasket.
- 2 crimp rings, 316 stainless steel.
- 1 Spring-loaded non-return valve, any position, 316 stainless steel construction.
- 1 all 316 stainless steel strainer, 12/10th mesh (screwed onto the check valve).



Model KAS-0325 KAS-0525 KAS-0725 KAS-1025
Reference 112086 112087 112088 112089
Hose length (m) 3 5 7 10
Hose int. Ø (mm) 25
PS at 23 °C (bar) 4
Nominal Ø 1" - DN25
Weight (Kg) 3.8 4.4 5.0 6.0
