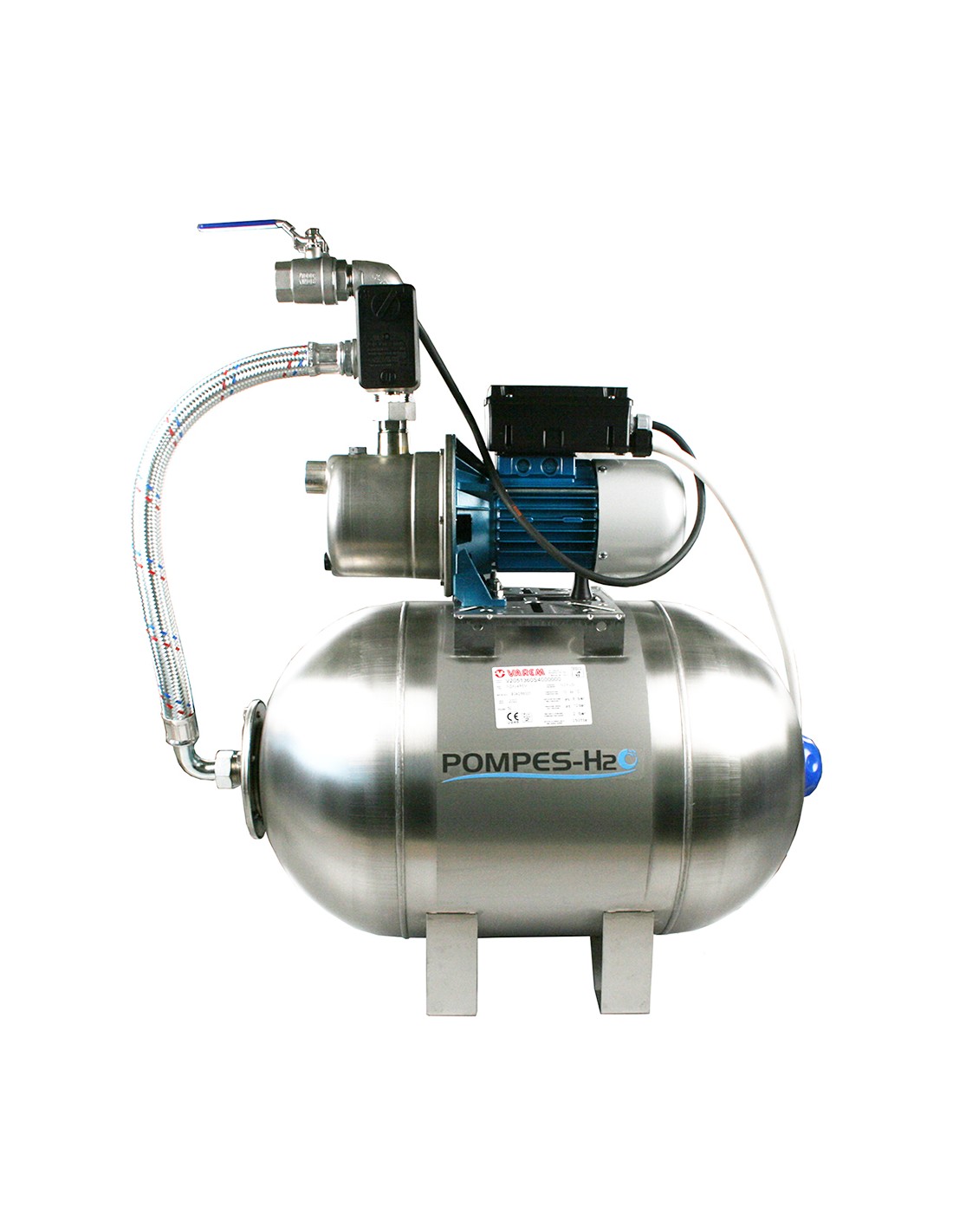

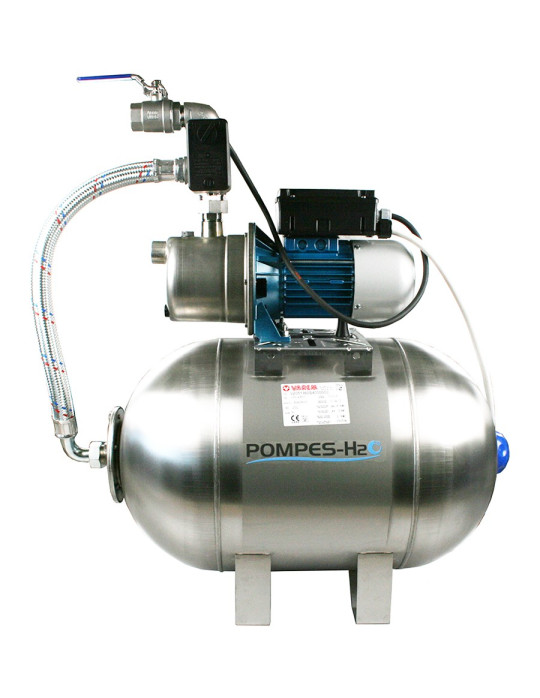

PRESSINOX 50 L 12-24V booster set

Ideal for supplying a dwelling not connected to the public network, for use as a stand-alone distribution set, for mobile applications on an equipped vehicle. High self-priming capacity up to 7 m.

Use:
- Suction and transfer of drinking water, well water, water from watercourses, rainwater.
- Water suction, also in the presence of dissolved air, slightly aggressive water.
- Stand-alone booster set for a site not connected to the public water network.

Contents of the PRESSINOX 50 set:
- 1 304 stainless steel bladder pressure tank, horizontal 50 L.
- 1 JET ECC self-priming electric pump 12Vdc or 24Vdc.
- 1 XMP Telemecanique pressure switch 0-6 bar.
- 1 axial pressure gauge 0-6 bar, stainless steel case and glycerine bath.
- 1 M/F 1" stainless steel connecting hose, length 800mm, 304 stainless steel.
- 1 M/F 1" ball valve, 316 stainless steel.
- 1 1" elbow, 316 stainless steel.
- 1 316 stainless steel multi-way non-return valve.
- A2 and A4 stainless steel screws and fixings.
- Power cable, HO7RN-F 3G4 m, length 2 m.
- Assembly and setting in the workshop.
