Applications:
- Automatic drinking water supply pump for chalets, remote sites, motorhomes, boating, mobile homes, lorries, 4x4s, etc.

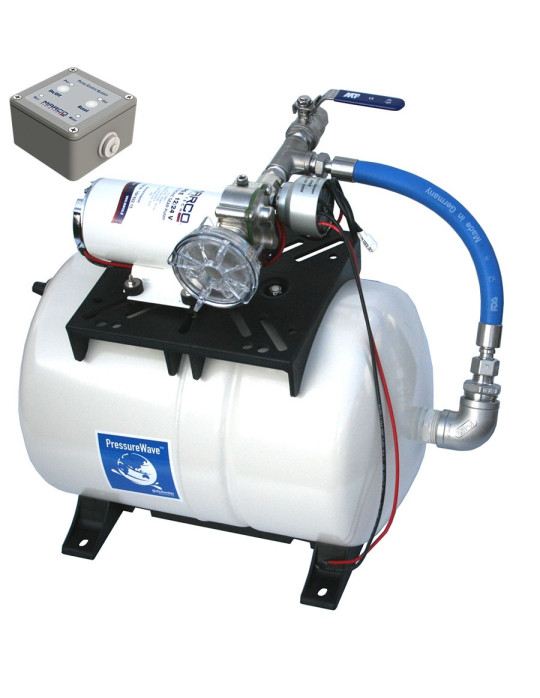

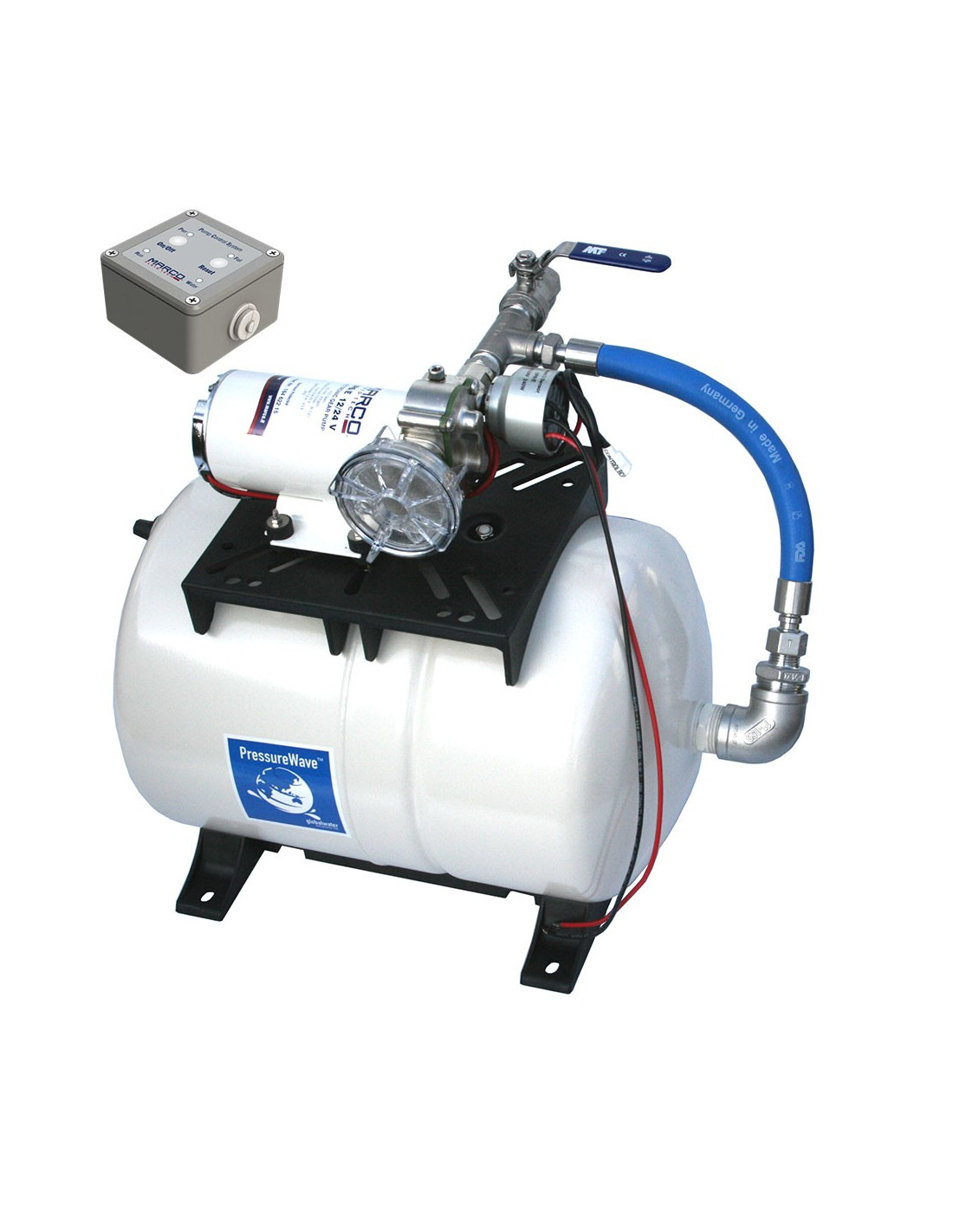

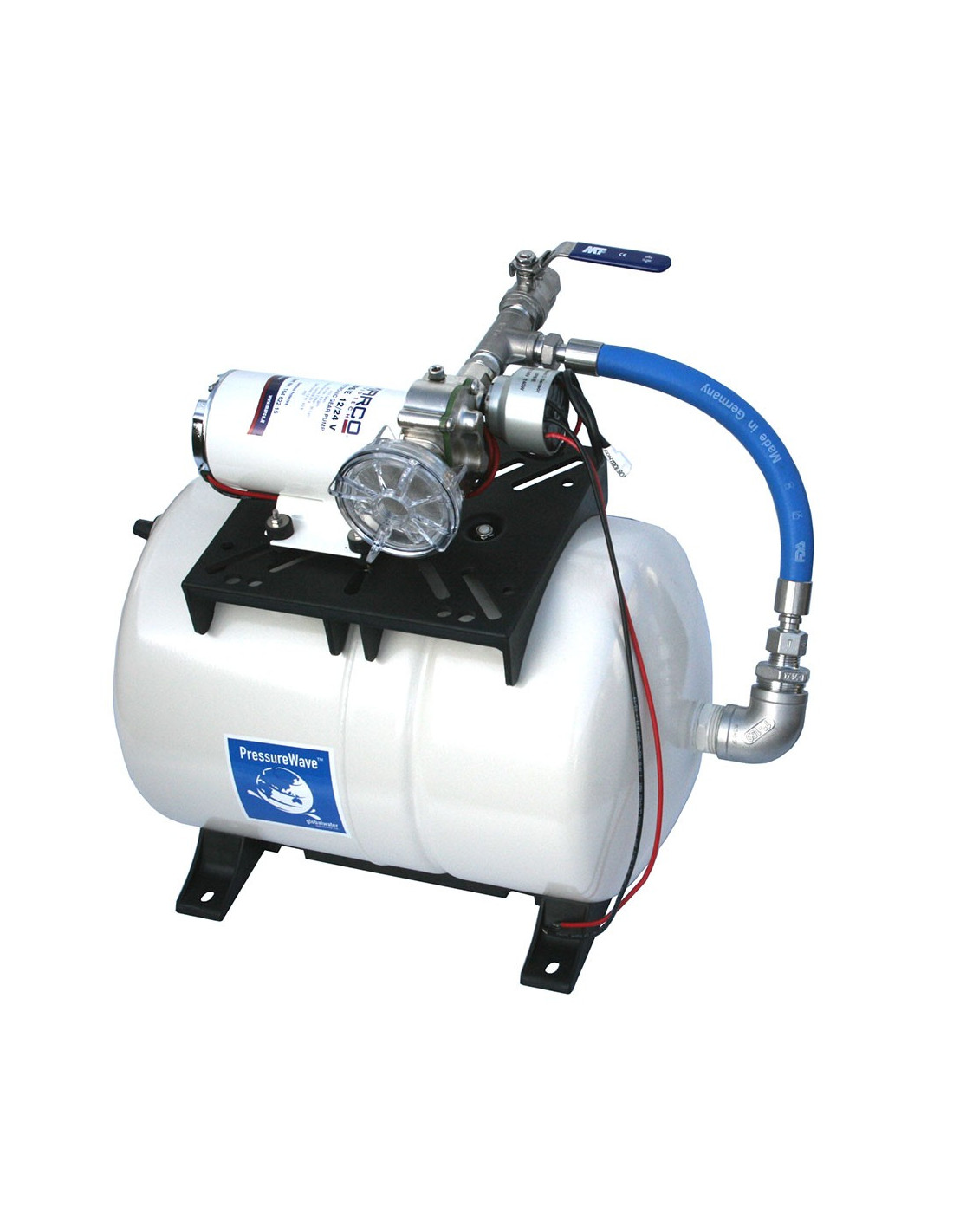

Marco UP6/E pump specifications:
- Nickel-plated brass body and fittings.
- 316 stainless steel shaft.
- PTFE helical gears.
- Check valve.
- Horizontal 20L diaphragm tank.
- Electronic control of the motor speed according to the flow rate.
- 12-24 or 24 volt DC power supply, depending on model.
- PCS control box, with connector, 3 m cable (allows remote monitoring of pump operation and interaction with it). (Model G-UP6/E + PCS).
| Models |
(1) |
(2) G-UP6/E 12-24-PCS |
(3) G-UP6/E 24 |
(4) G-UP6/E 24-PCS |
|---|---|---|---|---|
| Reference | 605627 | 605628 | 605629 | 605630 |
| Supply (V DC) | 12-24 | 24 | ||
| Power (W) | 180 | |||
| Consumption (A) |
10 - 5 | 5 | ||
| Fuse (A) | 20 | 10 | ||
| PCS box | WITHOUT | WITH | WITHOUT | WITH |
| Flow rate (l/min) | 0 to 26 | |||
| Pressure (bar) | 2.5 | 3.5 | ||
| Priming (m) | -1.5 | |||
| Ports | 1/2" | |||
| Hose (mm) | 16 | |||
| Max. liquid temperature (°C) |
40 | |||
| Protection rating | IP67 | |||
| Weight (Kg) | 9.5 | |||
