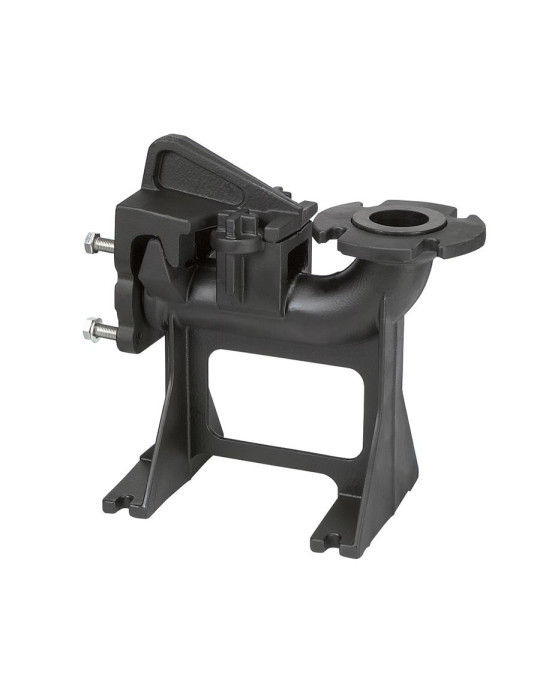

Pied d'assise en fonte sortie horizontale DAC 32-50/G50H

Elbow cast iron base stand for ZENIT pump coupling - DAC V

112522
Delivery 2 to 4 days
€300.83

€300.83 tax excl.

Vertical delivery bottom coupling devices for Zenit pumps (DRN - SBN - SBP - MAN - SMN - SMP - DGO - DGN - DGP - GRN).

Model

Attributs
Image Ref. Model Unit price Avail. Buy
Elbow cast iron base stand for ZENIT pump coupling - DAC V
112522 DN 50
€300.83
Available
Elbow cast iron base stand for ZENIT pump coupling - DAC V
112508 DN 65
€358.33
Available
Elbow cast iron base stand for ZENIT pump coupling - DAC V
112509 DN 80
€389.17
Available
Elbow cast iron base stand for ZENIT pump coupling - DAC V
112510 DN 100
€610.00
Available
Elbow cast iron base stand for ZENIT pump coupling - DAC V
112511 DN 150
€1,366.67
Available
Elbow cast iron base stand for ZENIT pump coupling - DAC V
112512 DN 200
€2,274.17
Available
Elbow cast iron base stand for ZENIT pump coupling - DAC V
112513 DN 250
€3,004.17
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Allows ZENIT lift pumps to be coupled (DRN - SBN - SBP - MAN - SMN - SMP - DGO - DGN - DGP -  GRN).

General specifications :
- GJL-250 cast iron body.
- NBR rubber gasket.
- Epoxy-vinyl paint.
- Full bore.

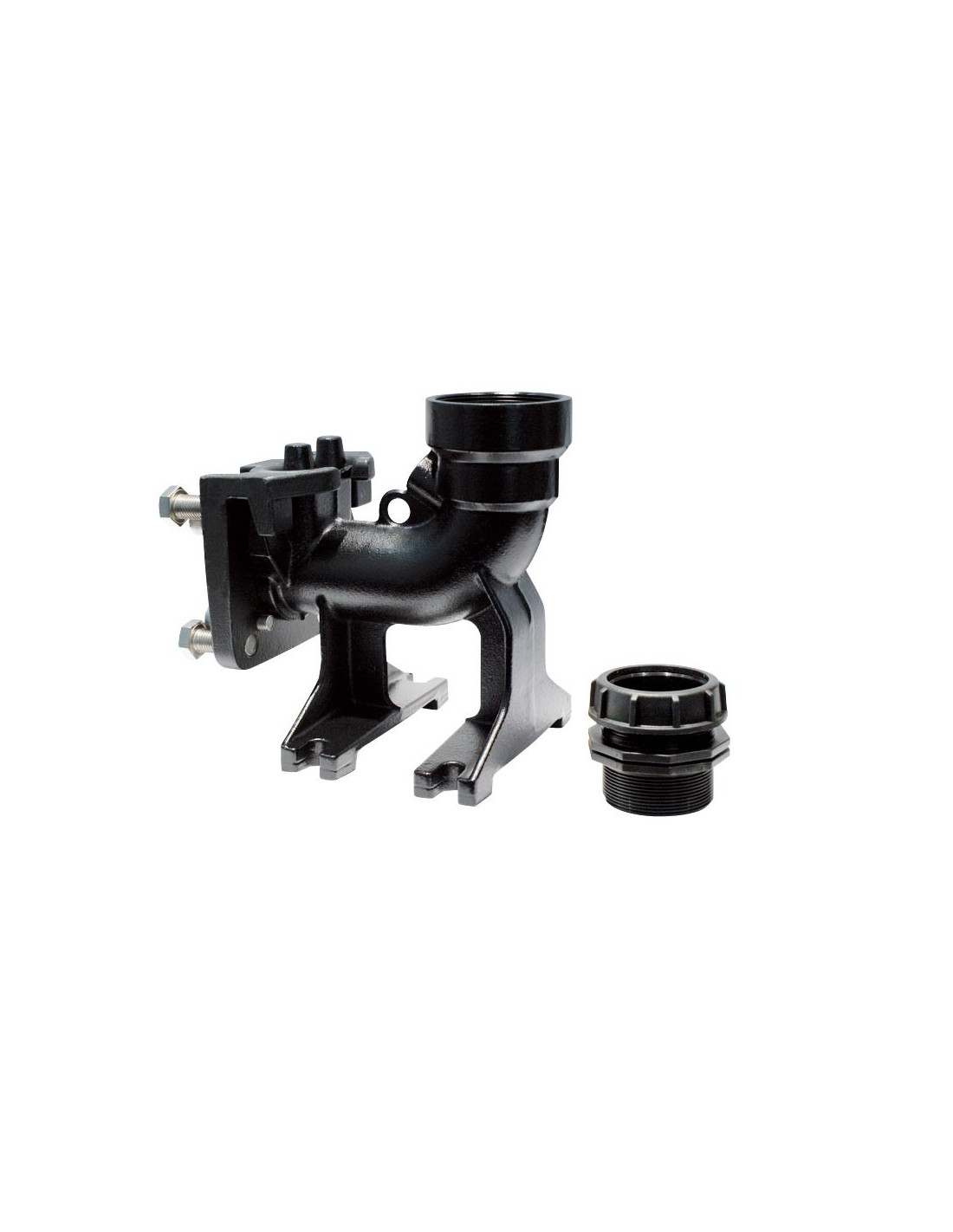

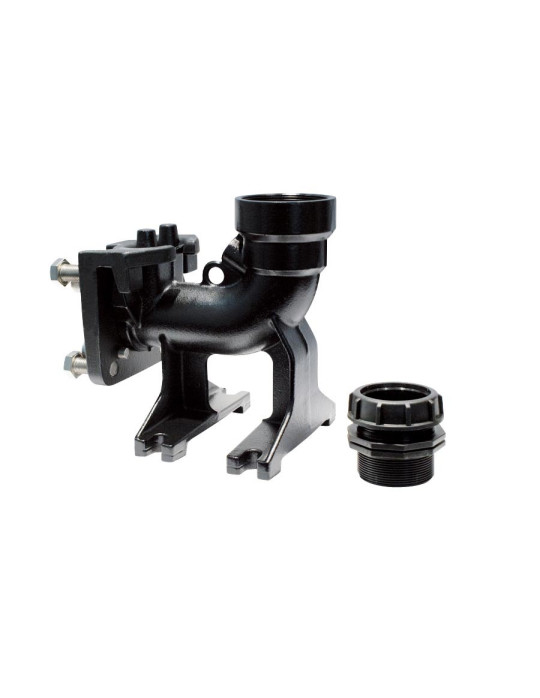

- Fitted with a fitting for coupling to a polyethylene pipe (Ø 63 mm).
- GAS 2” and GAS 2" 1/2 threaded outlet.
- Fitted with guide rails and sliding flange with STAINLESS STEEL bolts and screws.
- Model supplied with an integrated relief valve for air release.
- Keeps the pump suction inlet at an optimal height, so there is no need to provide a step at the bottom of the tank; version with ball check valve directly on the outlet.
- For correct operation, the DAC body includes an automatic air vent.



Model Reference Inlet Discharge Weight
(Kg)
DAC V 50
 112522 DN50 2" 9
DAC V 65
 112508 DN65 DN65
PN10-16		 26
DAC V 80 112509 DN80 DN80
PN10-16		 28
DAC V 100
 112510 DN100 DN100
PN10-16		 31
DAC V 150
 112511 DN150 DN150
PN10		 117
DAC V 200
 112512 DN200 DN200
PN10		 149
DAC V 250
 112513 DN250 DN250
PN10		 192
DAC V 300
 112514 DN300 DN350
PN10		 293
