Raccord à Cames type A adaptateur femelle

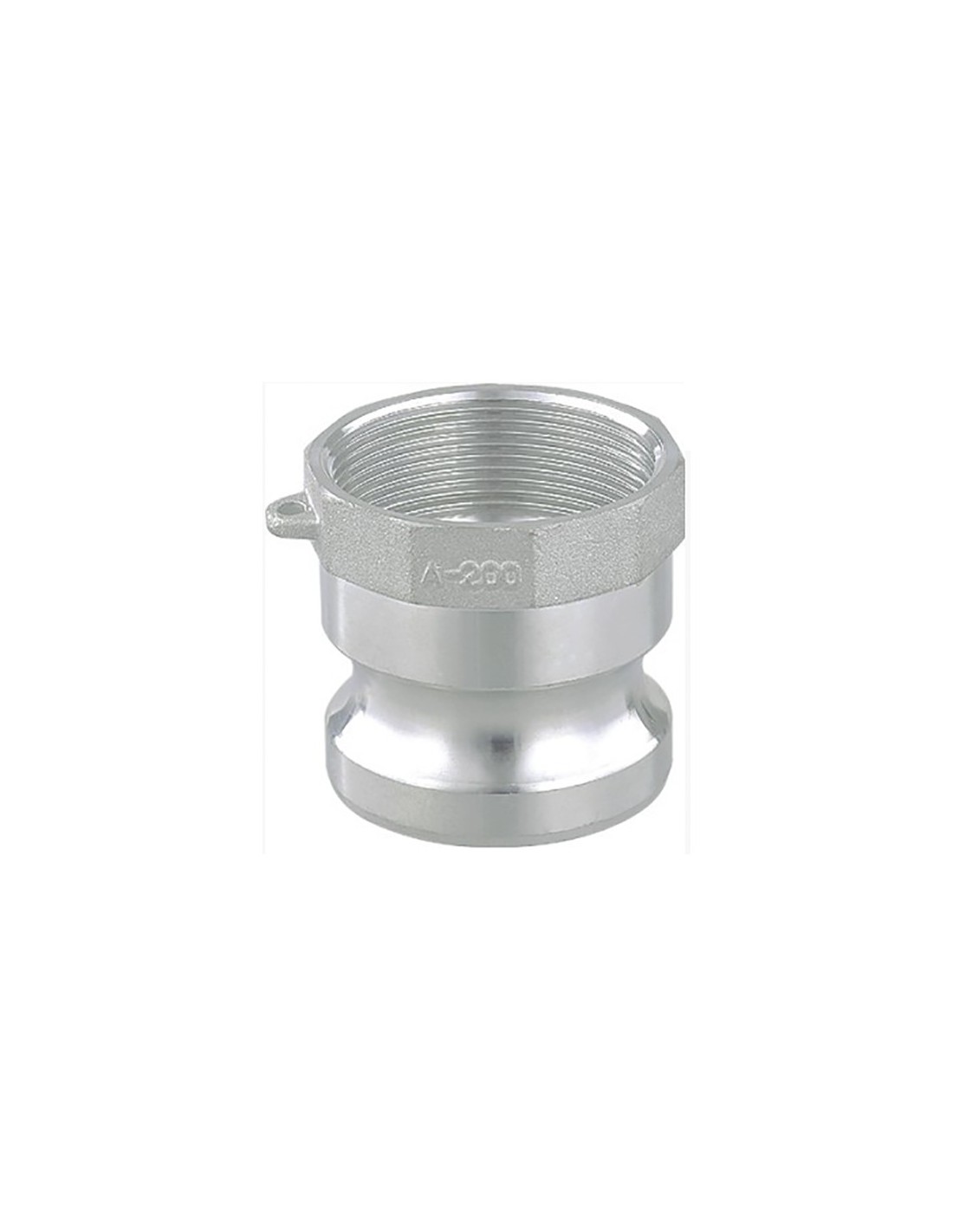

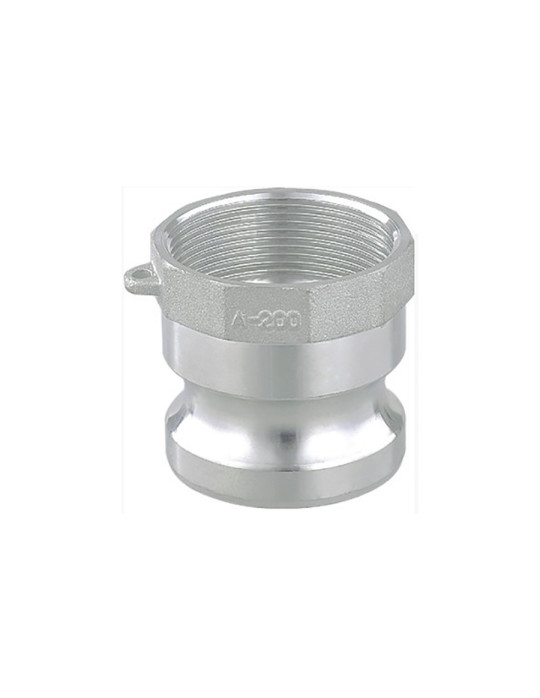

Aluminium cam coupling type A female adaptor

151437
Delivery 2 to 3 days
£6.07

£6.07 tax excl.

Type A female adaptor, aluminium construction, couplable with fittings of the same diameter, PS 16 bar (DN40 and DN50), PS 11 bar (DN65), PS 9 bar (DN80) and PS 7 bar (DN100).

Diameter

Attributs
Image Ref. Diameter Unit price Avail. Buy
Aluminium cam coupling type A female adaptor
151437 DN 40
£6.07
Available
Aluminium cam coupling type A female adaptor
151438 DN 50
£7.88
Available
Aluminium cam coupling type A female adaptor
151439 DN 65
£10.81
Available
Aluminium cam coupling type A female adaptor
151440 DN 80
£11.44
Available
Aluminium cam coupling type A female adaptor
151441 DN 100
£15.49
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

 Specifications:
- Made of ASG7 aluminium.
- BSP female threaded, (gas thread).
- Service temperature: -10 °C to +60 °C.
- Working pressure: PS 16 bar (DN40 and DN50), PS 11 bar (DN65), PS 9 bar (DN80) and PS 7 bar (DN100).

 DiameterReferenceTapping
DN40 151437 1" 1/2 F
DN50 151438 2" F
DN65 151439 2" 1/2 F
DN80 151440 3" F
DN100 151441 4" F
