Raccord à Cames Inox 316 type E adaptateur à douille annelé

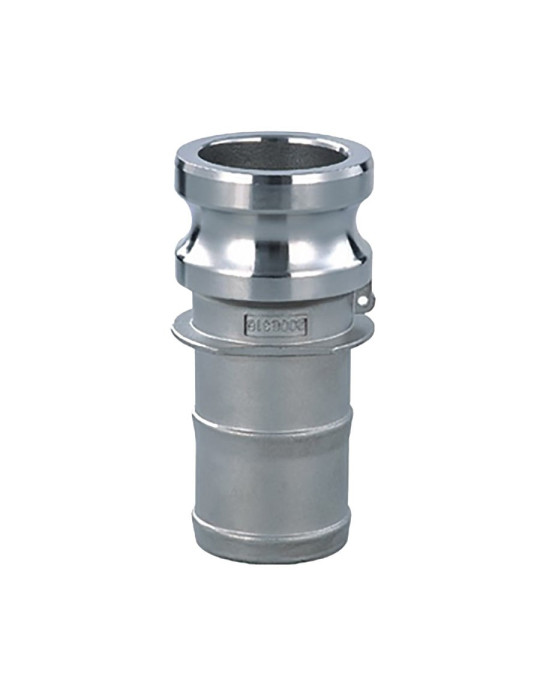

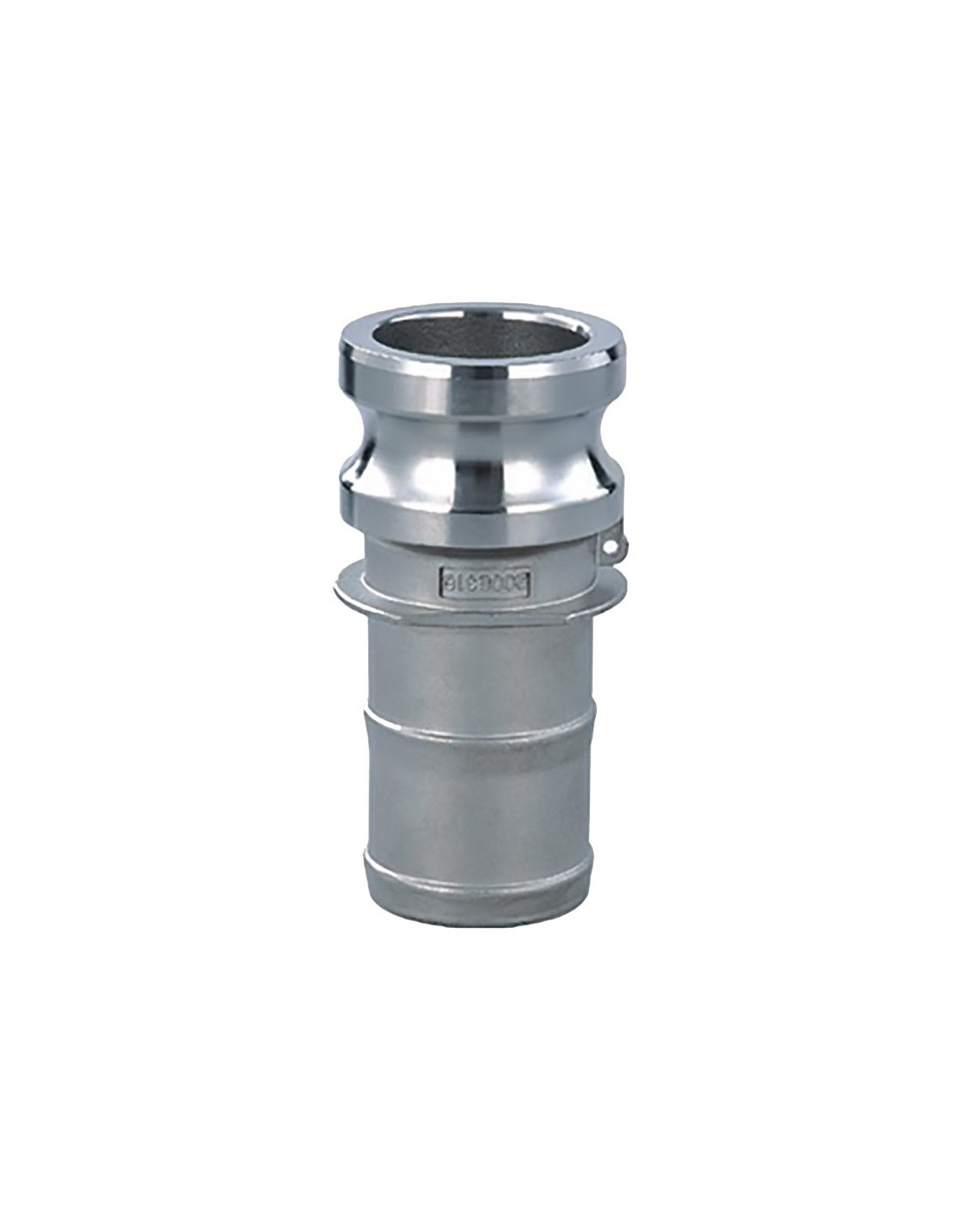

316 stainless steel cam coupling type E barbed sleeve adaptor

151526
Delivery 2 to 3 days
£26.51

£26.51 tax excl.

Barbed sleeve coupling, type E adaptor, is used to be fitted on a hose. It allows quick, simple and sealed connection. Easy to use and robust, it is used for the passage of all types of fluids, in: food, chemical, petrochemical industry, bulk transport of liquids and powders.

Diameter

Attributs
Image Ref. Diameter Unit price Avail. Buy
316 stainless steel cam coupling type E barbed sleeve adaptor
151526 DN 40
£26.51
Available
316 stainless steel cam coupling type E barbed sleeve adaptor
151527 DN 50
£35.44
Available
316 stainless steel cam coupling type E barbed sleeve adaptor
151528 DN 65
£44.37
Available
316 stainless steel cam coupling type E barbed sleeve adaptor
151529 DN 80
£54.98
Available
316 stainless steel cam coupling type E barbed sleeve adaptor
151530 DN 100
£81.21
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- Made of 316/CF8M stainless steel.
- Ringed hose tail.
- Service temperature: -10 °C to +60 °C.
- Working pressure: PS 16 bar (DN40 and DN50), PS 11 bar (DN65), PS 9 bar (DN80) and PS 7 bar (DN100).

 Diameter Reference Hose tail
(mm)
DN40 151526 38
DN50 151527 50
DN65 151528 63
DN80 151529 75.4
DN100 151530 100
