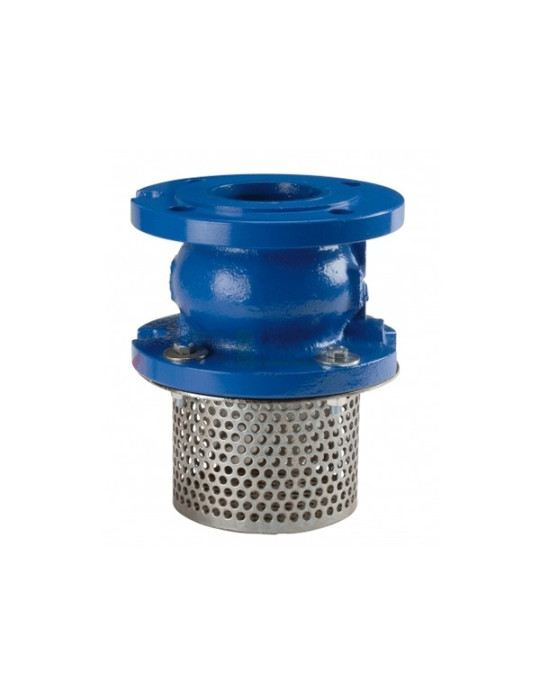

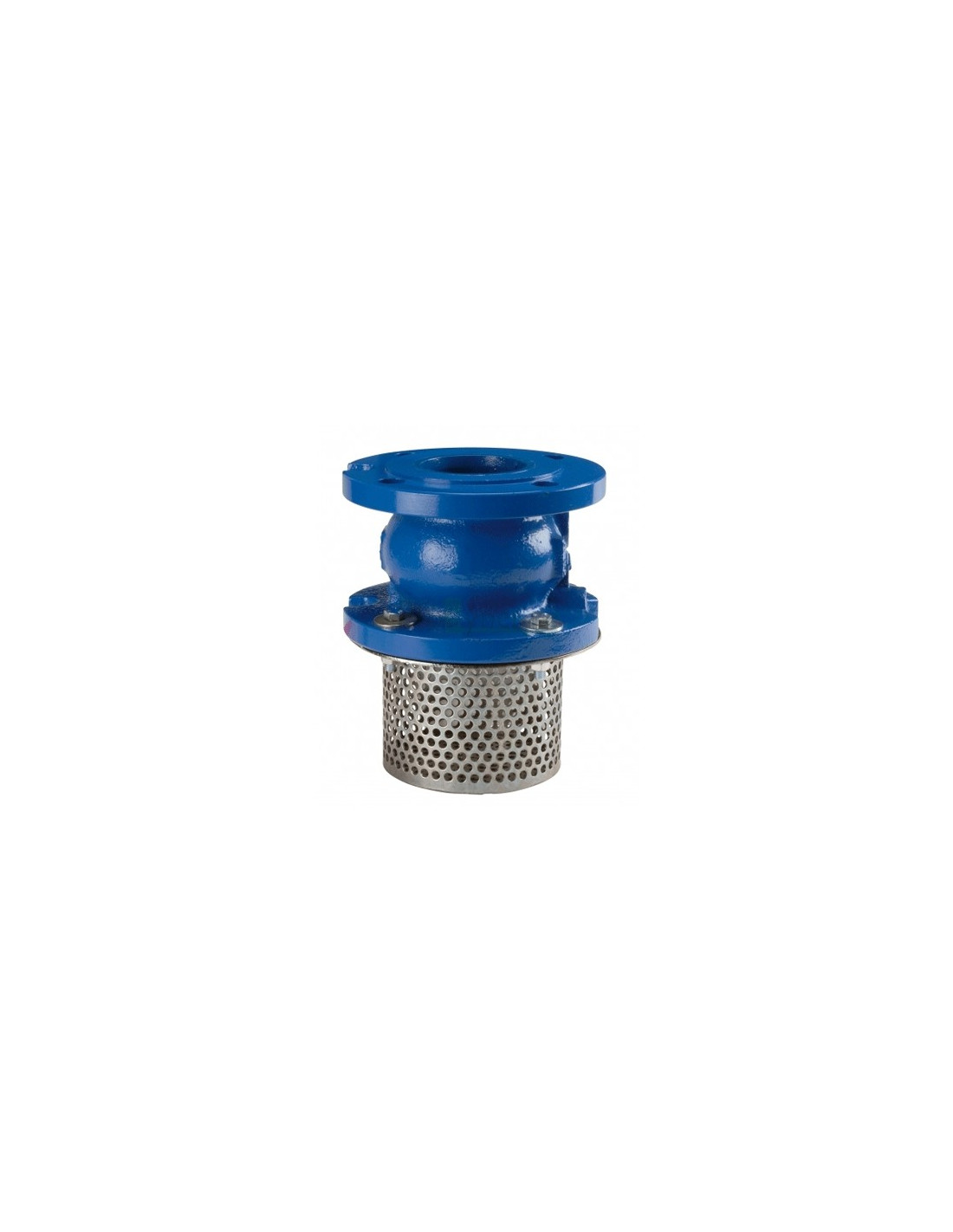

Clapet de pied en fonte à bride avec crépine acier zingué DN35-300

Cast iron foot axial disc check valve EPDM with spring flanged PN16 ACS - DN50-300

120110
Delivery 3 to 5 days
$238.36

$238.36 tax excl.

rating Read the review
Average rating: 9/10 Number of reviews: 1

Cast iron foot axial disc check valve EPDM with spring flanged PN16 ACS. This axial disc check valve is adapted for drinking water, heating and water distribution.

Diameter

Attributs
Image Ref. Diameter Unit price Avail. Buy
Cast iron foot axial disc check valve EPDM with spring flanged PN16 ACS - DN50-300
120110 DN 50
$238.36
Available
Cast iron foot axial disc check valve EPDM with spring flanged PN16 ACS - DN50-300
120111 DN 65
$297.01
Available
Cast iron foot axial disc check valve EPDM with spring flanged PN16 ACS - DN50-300
120112 DN 80
$384.54
Available
Cast iron foot axial disc check valve EPDM with spring flanged PN16 ACS - DN50-300
120113 DN 100
$487.89
Available
Cast iron foot axial disc check valve EPDM with spring flanged PN16 ACS - DN50-300
120114 DN 125
$648.96
Available
Cast iron foot axial disc check valve EPDM with spring flanged PN16 ACS - DN50-300
120115 DN 150
$765.35
Available
Cast iron foot axial disc check valve EPDM with spring flanged PN16 ACS - DN50-300
120116 DN 200
$1,252.30
Available
Cast iron foot axial disc check valve EPDM with spring flanged PN16 ACS - DN50-300
120117 DN 250
$3,584.65
Available
Cast iron foot axial disc check valve EPDM with spring flanged PN16 ACS - DN50-300
120118 DN 300
$4,954.27
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

For use in water supply and distribution, from a surface pump or engine-driven pump.

Specifications:
- Dimensions from DN 50 to 300.
- Nominal pressure: PN 16 bar.
- GN10/16 flanged connection.
- Mesh: 60/10 mm.
- Maximum temperature: + 130°C.
- Cast iron ogive check valve, EPDM seal, galvanised steel strainer, epoxy paint, all positions, vertical mounting.
- ACS compliant.

Nominal Ø Reference L
(mm)		 L1
(mm)		 L2
(mm)		 Ø B
(mm)		 Mesh Weight
(Kg)
DN50 120110 100 77 177 93 60mm
        		 6.01
DN65 120111 120  110  230  113  8.98
DN80 120112  140  125  265  128  10.95
DN100 120113  165  155  320  148  14.73
DN125 120114  195  170  385  178  21
DN150 120115  230  220  450  200  28.88
DN200 120116  290  300  590  255  49.58
DN250 120117  355  390  745  310  81.58
DN300 120118  400  410  810  360  138.38

 Customs number: 84813091.
