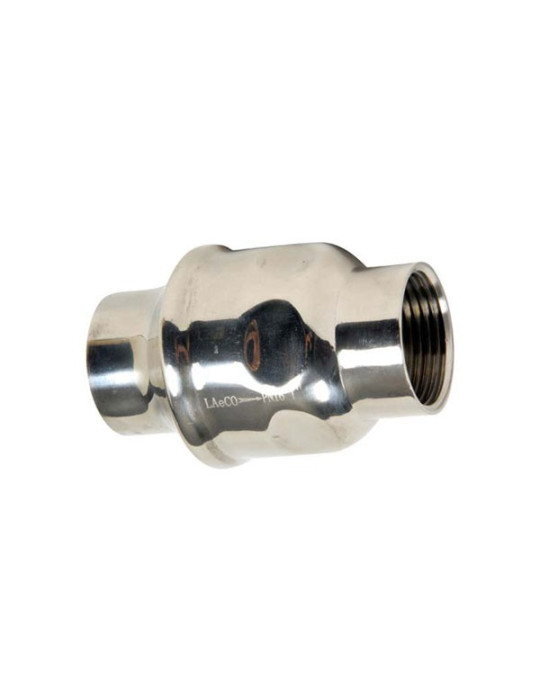

Clapet anti-retour F/F INOX 316

304 Stainless steel check valve stamped with spring FF

120131
Delivery 2 to 3 days
€30.00

€30.00 tax excl.

Stainless steel 304 check valve stamped with spring female/female. Size to DN 1/4" to 2“1/2. Maximum pressure to 16 bars.

Model

Attributs
Image Ref. Model Unit price Avail. Buy
304 Stainless steel check valve stamped with spring FF
120131 1/4"
€30.00
Available
304 Stainless steel check valve stamped with spring FF
120133 1/2"
€30.00
Available
304 Stainless steel check valve stamped with spring FF
120135 1"
€50.00
Available
304 Stainless steel check valve stamped with spring FF
120136 1" 1/4
€60.00
Available
304 Stainless steel check valve stamped with spring FF
120137 1"1/2
€73.33
Available
304 Stainless steel check valve stamped with spring FF
120138 2"
€95.00
Available
304 Stainless steel check valve stamped with spring FF
120139 2" 1/2
€153.33
Available
304 Stainless steel check valve stamped with spring FF
120132 3/8"
€30.00
Available
304 Stainless steel check valve stamped with spring FF
120134 3/4"
€40.00
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- Pressed stainless steel disc check valve.
- Body in ASTM A182 F304 stainless steel.
- Spring in ASTM A182 F304 stainless steel.
- Disc in ASTM A182 F304 stainless steel.
- In-line sealing by FKM gasket.
- PTFE guide ring.
- Installation in any position (observe the direction of flow shown by an arrow on the body).
- Short overall length.

Use:
- For compatible common fluids.
- Min. permissible temperature Ts: - 10°C.
- Max. permissible temperature Ts: + 150°C.
- Max. permissible pressure PN: 16 bar.

Connection:
- Female - Female.

Nominal Ø1/4"3/8"1/2"3/4"1"1" 1/41" 1/22"2" 1/2
Reference 120131 120132 120133 120134 120135 120136 120137 120138 120139
Pressure
opening (mbar)		 100 200 300 400 450 700
Length (mm) 66 72 83 105 115 125 145
Ø A (mm) 32 45 55 70 76 89 109
Ø D (mm) 18 22 24 30 38 46 51 64 80
Weight (Kg) 0.12 0.17 0.24 0.48 0.58 0.94 1.20


Strong points: end-fitting check valve, short overall length.


304 Stainless steel check valve stamped with spring FF

Standards:
- Manufactured to ISO 9001: 2008.
- DIRECTIVE 97/23/EC: Falls under article 3, § 3.
- BSP parallel threaded connections to ISO 228-1.
