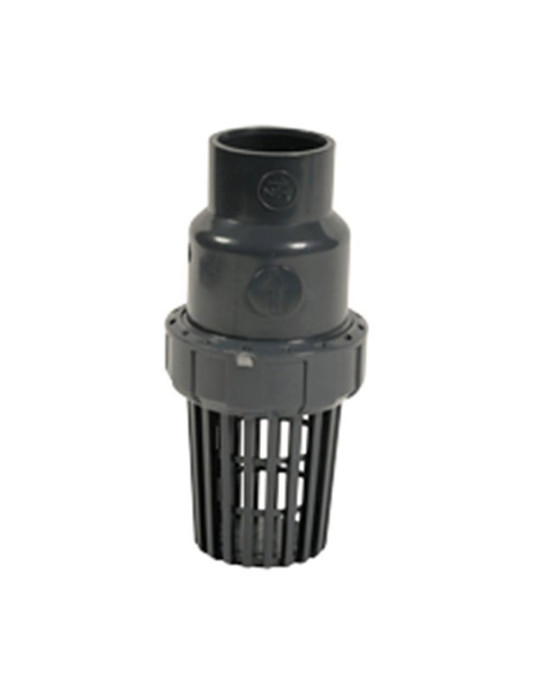

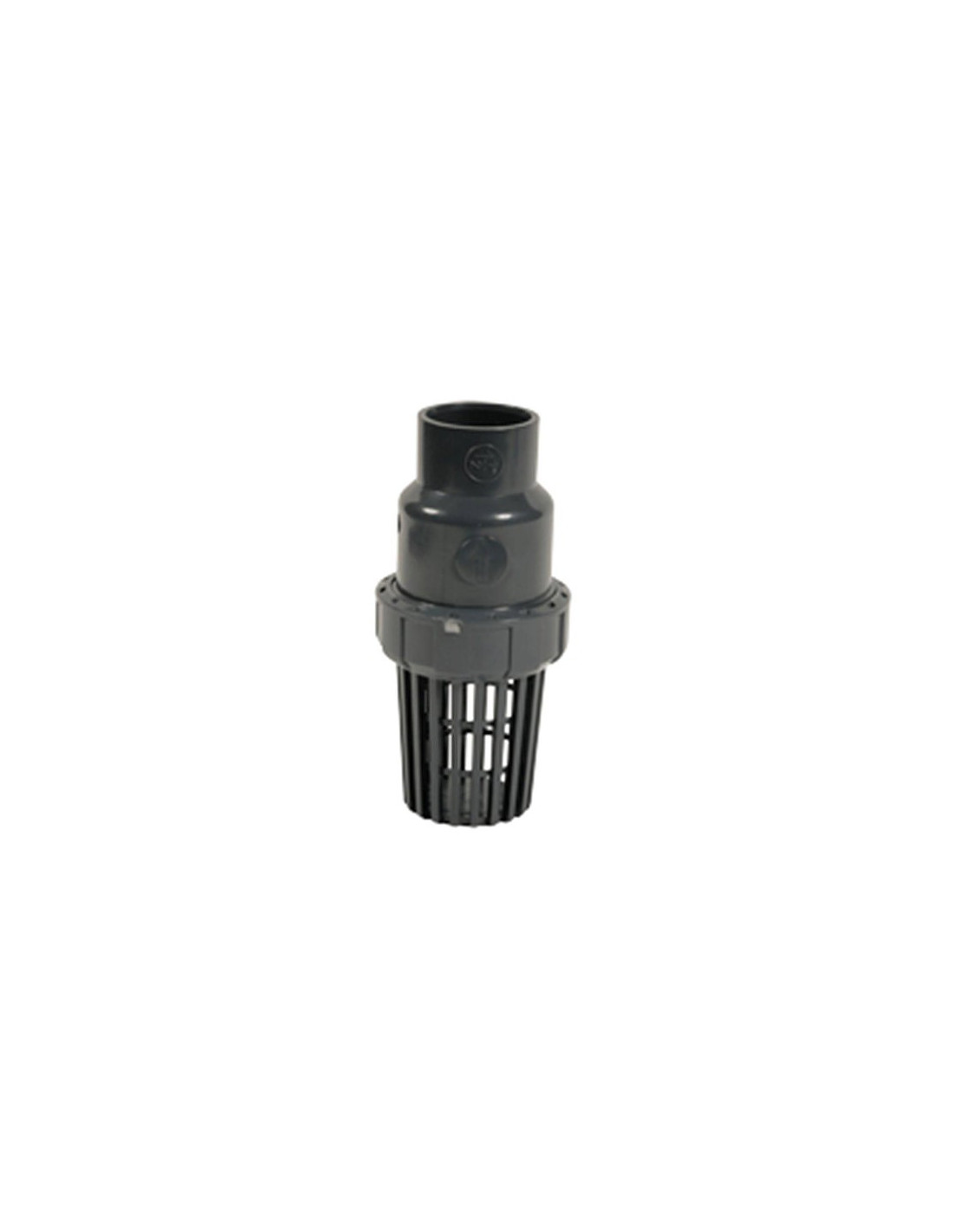

Clapet crépine de pied en PVC-U à coller

Solvent-weld PVC-U foot check valve with strainer

120236

Foot check valve with removable strainer, prevents loss of prime on the suction side of a transfer pump for water or acid or basic fluids. Diameter DN40 (PVC 50 ext) and DN50 (PVC 63 ext).

DN
Attributs
The product is not available for order.
Image Ref. DN
Solvent-weld PVC-U foot check valve with strainer
120236 40
Solvent-weld PVC-U foot check valve with strainer
120237 50
Total: 0,0
All prices with tax included.
Description

 Specifications:
- PVC-U body and strainer.
- EPDM gaskets.
- Vertical installation.
- Female solvent-weld socket connection (to DIN/ISO).
- UV-resistant treated materials.
- Fully dismountable model.

DN
4050
d1 (mm)
5063
Reference 120236 120237
PS (bar) 10
TS 0 to + 60 °C
d1 (mm) 50.30 63.30
d 2 (mm) 50.10 63.10
D (mm) 98 119
L (mm) 204 239
L1 (mm) 35 38



Solvent-weld PVC-U foot check valve with strainer
