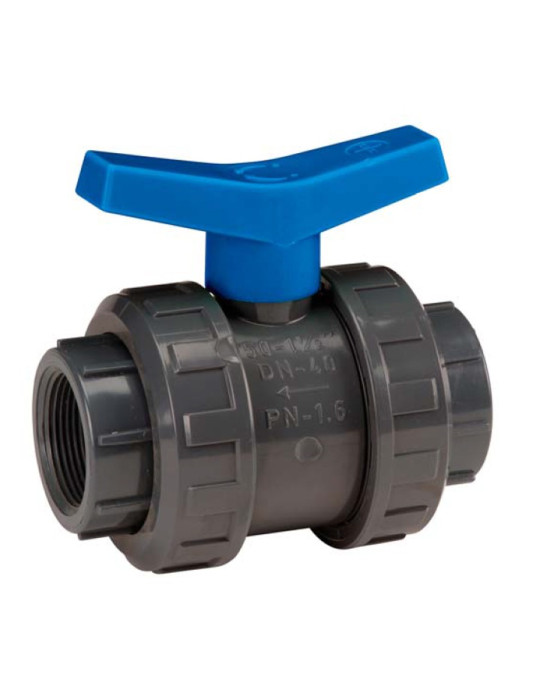

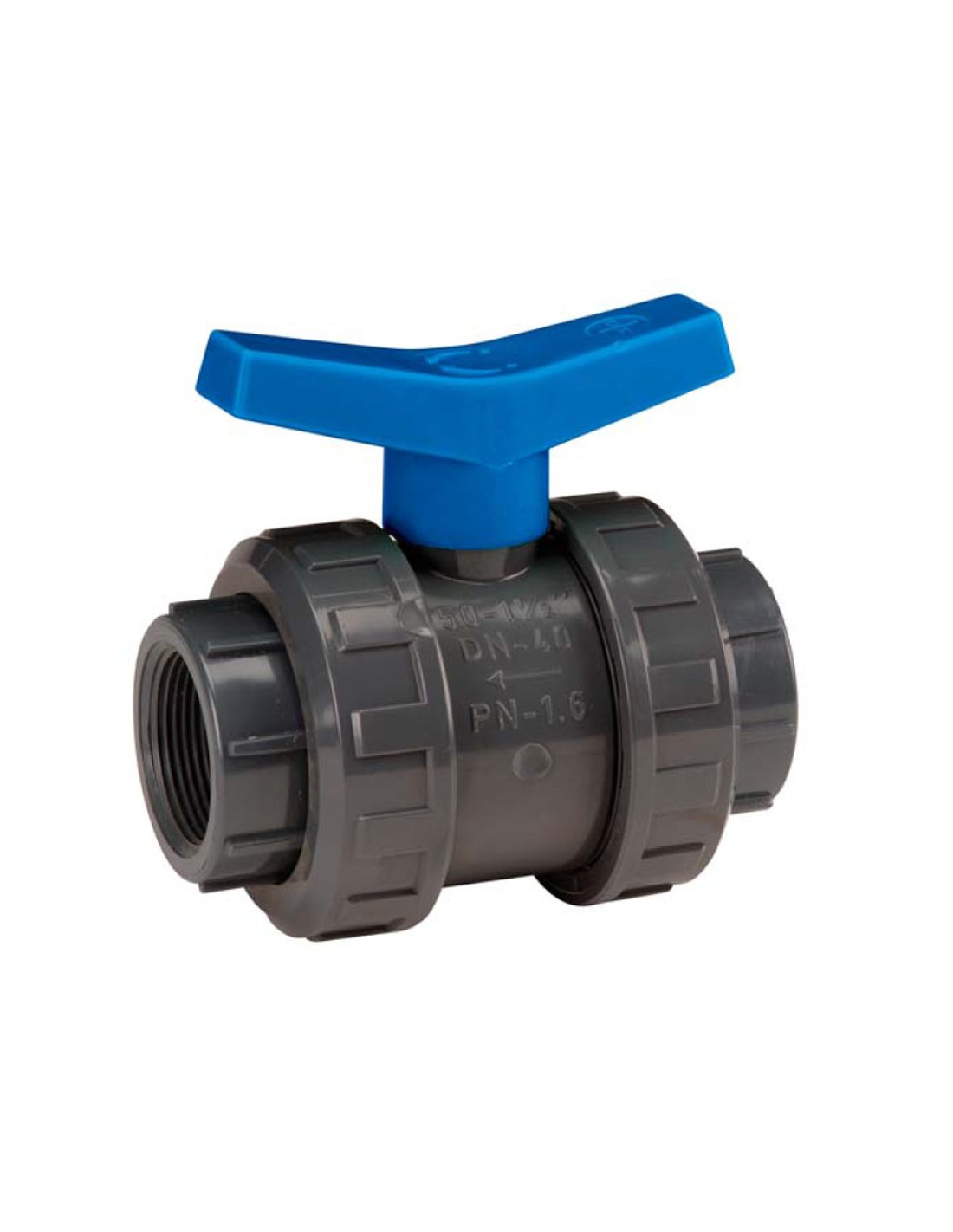

Vanne à sphère PVC 3 pièces F/F taraudées

PVC 3-piece valve F/F threaded

110160
Delivery 2 to 3 days
€13.83

€13.83 tax excl.

F/F threaded ball valve, PVC-U body and ball, double EPDM seal, available from 3/4" to 3".

Diameter

Attributs
Image Ref. Diameter Unit price Avail. Buy
PVC 3-piece valve F/F threaded
110161 1"
€20.33
Available
PVC 3-piece valve F/F threaded
110162 1" 1/4
€24.92
Available
PVC 3-piece valve F/F threaded
110163 1" 1/2
€30.00
Available
PVC 3-piece valve F/F threaded
110164 2"
€38.58
Available
PVC 3-piece valve F/F threaded
110165 2" 1/2
€79.42
Available
PVC 3-piece valve F/F threaded
110160 3/4"
€13.83
Available
PVC 3-piece valve F/F threaded
110166 3"
€107.33
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- Model for watering, irrigation, swimming pools, pumps, spas...
- PVC ball valve, full bore (except DN3"). 3-piece construction.
- Female / Female threaded.
- Blue handle.
- PVC body and ends.
- HDPE ball seals.
- EPDM O-rings.
- Max. Δp: 3 bar.
- Max. working temperature: 60°C.
- Max. Delta P 3  bar.
- Body, ball and ends in PVC.
- Ball seal: HDPE.
- O-rings: EPDM.

Ø Fitting
3/4"1"1" 1/41" 1/22"2" 1/23"
Ø Bore (mm) 20 25 32 40 50 63 63
Reference 110160 110161 110162 110163 110164 110165 110166
Max pressure (bar) 16 16 16 16 16 10 10
Max. temp. (°C) 60
Max. length (mm) 102 115 130 144 166 224 230
Weight (Kg) 0.204 0.309 0.455 0.784 1.131 2.537 3.676
