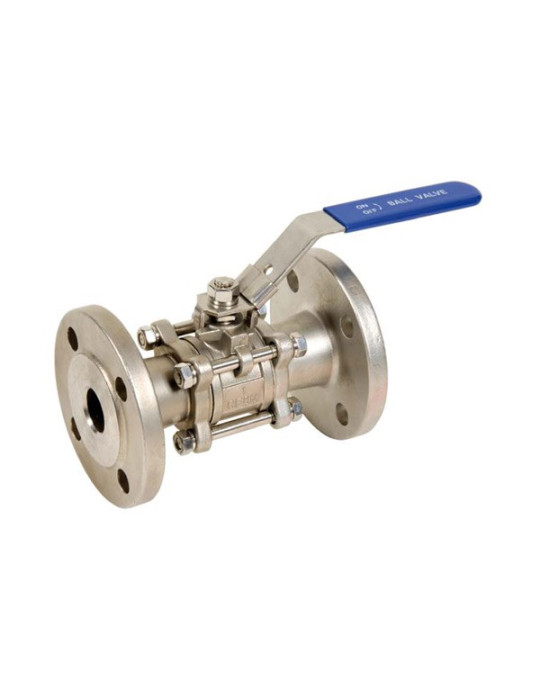

Uses:
- For compatible common fluids.
- Minimum and maximum permissible temperatures Ts: -30°C to + 180°C.
- Maximum permissible pressure PN: 40 bar.
Specifications:
- Body, end piece and ball in 316 stainless steel.
- Full bore.
- 304 stainless steel stem.
- PTFE gland packing, body gasket and seat.
- Lockable handle in 304 stainless steel.
- 3-piece model.
- R.F. flanges GN 40.
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
|---|---|---|---|---|---|---|---|---|---|
| Reference | 110258 | 110259 | 110260 | 110261 | 110262 | 110263 | 110264 | 110265 | 110266 |
| Ø bore (mm) |
15 | 20 | 25 | 32 | 38 | 50 | 65 | 80 | 100 |
| L (mm) | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 |
| E (mm) | 136 | 136 | 165 | 165 | 200 | 200 | 302 | 302 | 329 |
| H (mm) | 68 | 72 | 84 | 93 | 99 | 109 | 138 | 150 | 180 |
| Weight (Kg) | 2.25 | 3.5 | 4.3 | 6.25 | 7.65 | 10.9 | 16.5 | 24.2 | 35.4 |
Standards:
- Manufactured to ISO 9001 : 2000.
- DIRECTIVE 97/23/EC: CE No. 0036 Risk category II.
- Leak tests in accordance with standard EN 12266-1, Class A.
- R.F. flanges in accordance with standard EN 1092-1 PN40.
- Face-to-face dimensions in accordance with standard EN 558-1 series 28 ( NF 29355 DIN 3202 F1 ).
