£3.14 tax excl.
Delivery 2 to 3 days
| Image | Ref. | Diameter | Unit price | Avail. | Buy |
|---|---|---|---|---|---|
|
110454 | 1/2" |
£21.00
|
|
|
|
110456 | 1" |
£32.23
|
|
|
|
110455 | 3/4" |
£26.72
|
|
|
|
Total:
0,0
All prices with tax included.
|
|||||
Product is available
Product is no longer in stock
Product is no in stock, but is allowed to be back-ordered

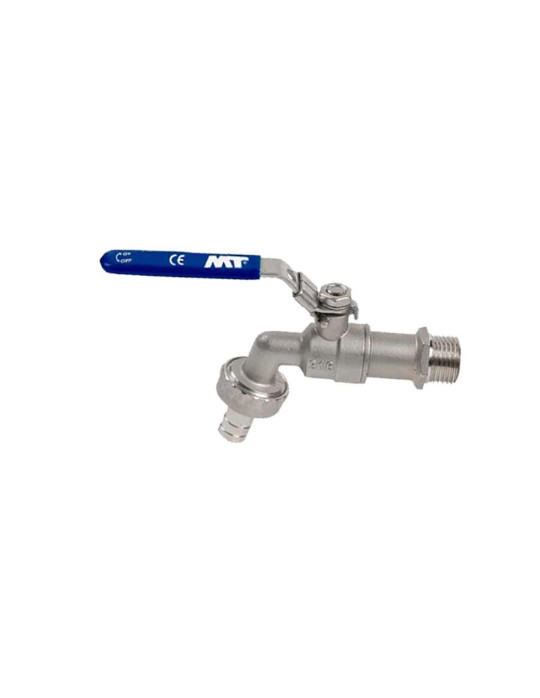

Specifications:
- Body and shaft in 316 stainless steel.
- Female thread, gas pitch, BSP, ISO 228/1, DIN 259.
- RPTFE packing gland.
- Flat blue handle, lockable.
- Full ball.
Use:
- For compatible common fluids, hot water, cold water, oils, food liquids, chemical liquids.
- Minimum and maximum permissible temperature: -10°C to + 120°C.
- Maximum pressure 16 bars.

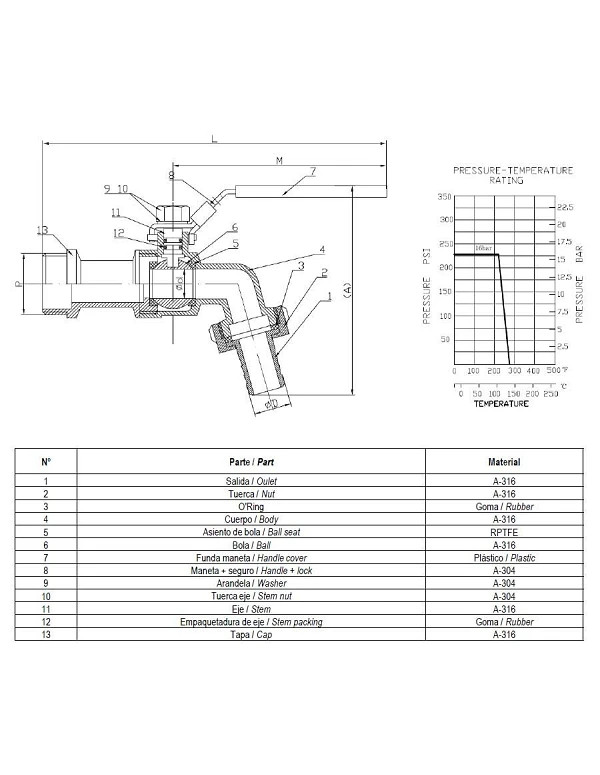

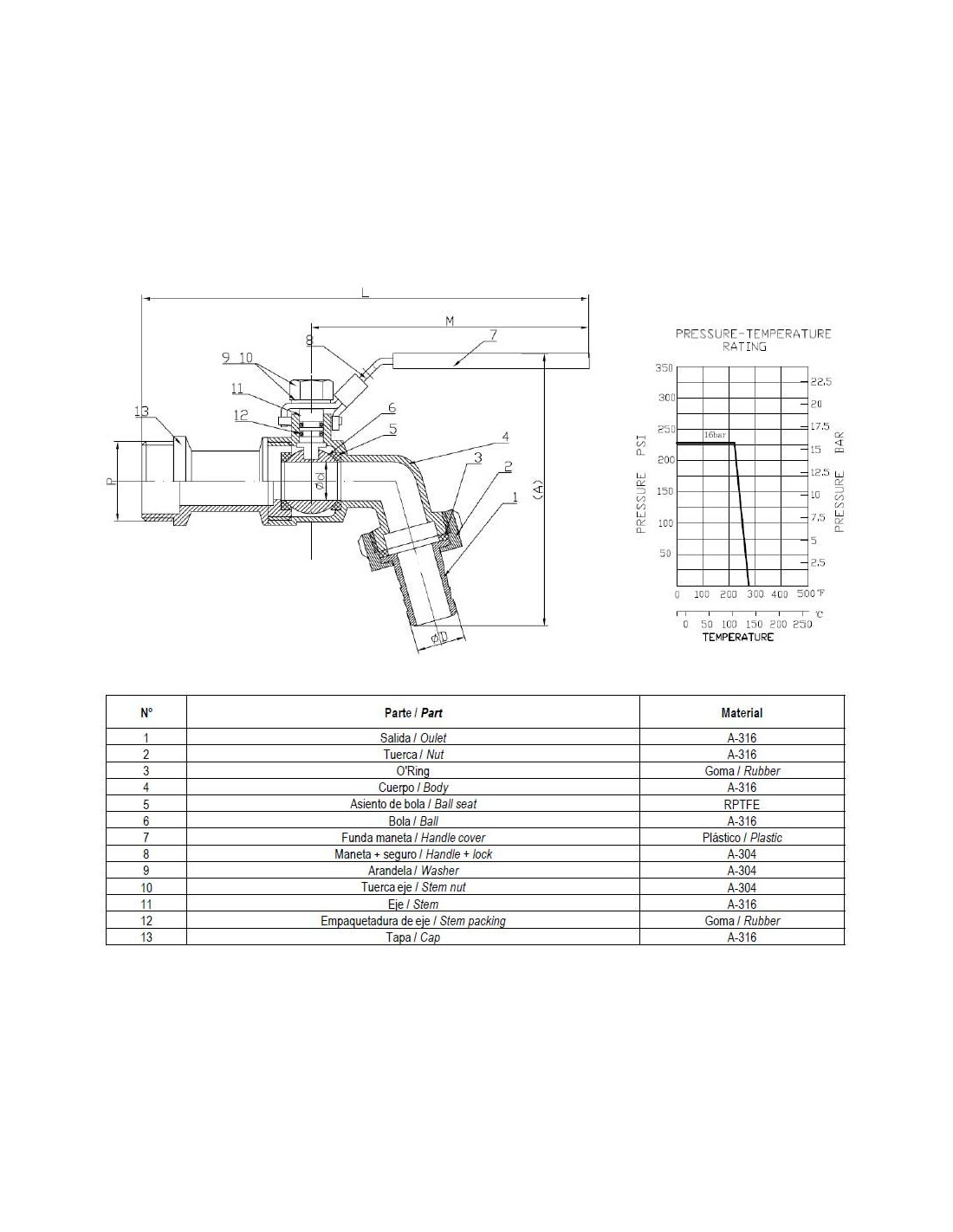

| Male x Nose |
Reference | Bore DN (mm) |
Ø D (mm) |
M (mm) |
L (mm) |
A (mm) |
|---|---|---|---|---|---|---|
| 1/2" x 3/4" |
110454 | 9.2 | 13 | 92 | 145 | 87 |
| 3/4" x 3/4" |
110455 | 12.8 | 16 | 92 | 155 | 87 |
| 1" x 1" |
110456 | 15 | 27.5 | 115 | 185 | 120 |
