316 stainless steel mini ball valve M/F

110479
Delivery 2 to 3 days
€19.50

€19.50 tax excl.

1/4 turn valve, 316 stainless steel ball, blue aluminium handle, PN 63 bar max, temperature from -10°C to +180°C, available in 1/4", 3/8" and 1/2" diameter, M/F BSP connection.

Diameter

Attributs
Image Ref. Diameter Unit price Avail. Buy
316 stainless steel mini ball valve M/F
110479 1/4"
€19.50
Available
316 stainless steel mini ball valve M/F
110481 1/2"
€25.17
Available
316 stainless steel mini ball valve M/F
110480 3/8"
€22.58
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- Body and shaft in 316 stainless steel.
- Female BSP thread, DIN 2999/259.
- Reduced bore.
- PTFE shaft seal.
- Blue aluminium handle.
- 316 stainless steel ball.
- Horizontal or vertical installation.

Use:
- For compatible common fluids, hot water, cold water, steam, chemical liquids, solvents, fluids and compressed air.
- Minimum and maximum permissible temperature: -10°C to + 180°C.

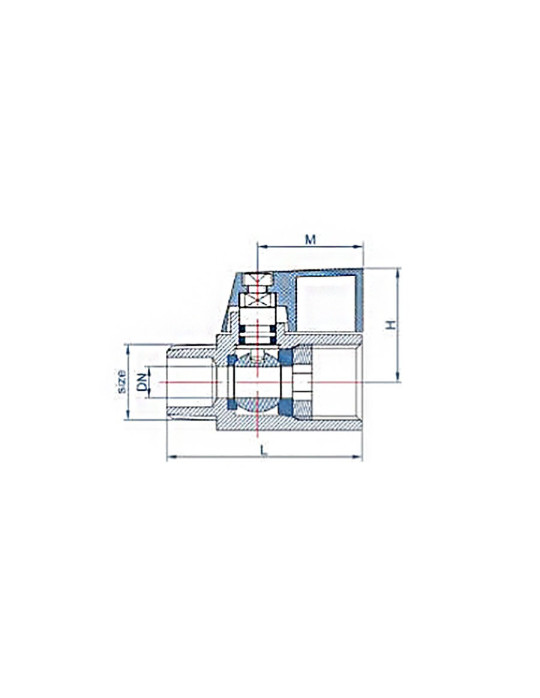

ModelReferenceBore
D (mm)		PN
(bar)		 HMLWeight
(g)
1/4" 110479 7.0 63 26.5 22.8 42 78
3/8" 110480 26.5 22.8 42 75
1/2"  110481 9.2 28.3 22.8 46 115
