Flanged cast iron float valve

Reference 110501

Delivery 1 to 2 weeks

€1,356.67

€1,356.67 tax excl.

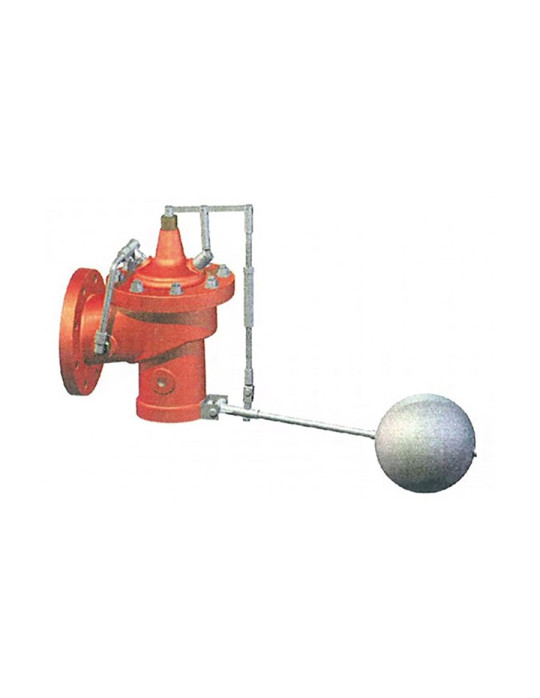

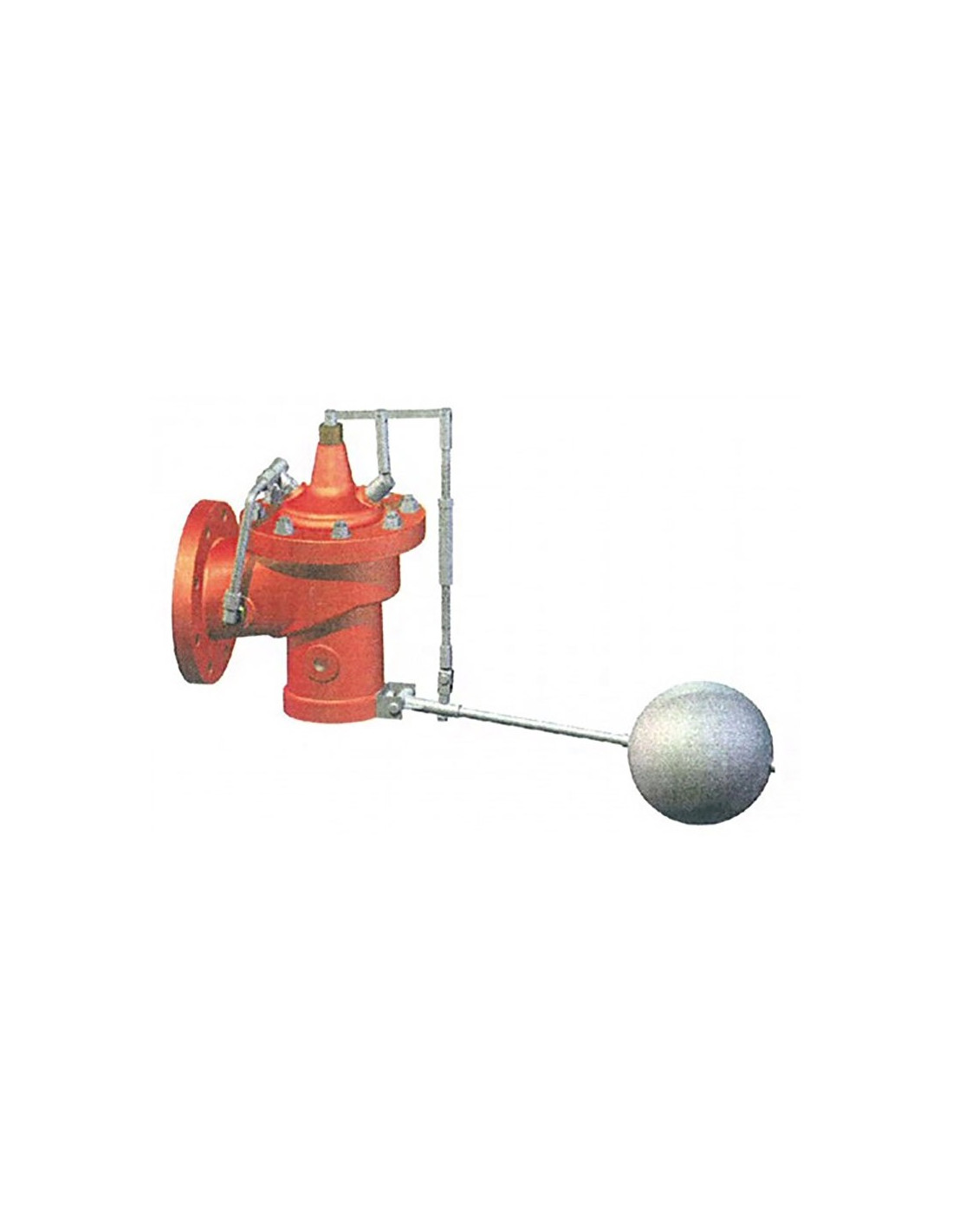

The assisted compensated float valve is installed on a tank supply line, in the high position, to guarantee that it fills to a practically constant level thanks to the gradual operation induced by the water level in the tank, from DN40 to DN150.

Diameter

Attributs

Image	Ref.	Diameter	Unit price	Buy
	110501	DN40/50	€1,356.67	Sum.:
	110502	DN60/65	€1,466.67	Sum.:
	110503	DN 80	€1,579.17	Sum.:
	110504	DN 100	€1,846.67	Sum.:
	110505	DN 125	€2,245.00	Sum.:
	110506	DN 150	€2,733.33	Sum.:
Total: 0,0 All prices with tax included.

Product is available
Out of stock

Product is no longer in stock
Can be back-ordered

Product is no in stock, but is allowed to be back-ordered

Description

Specifications:
- GGG-40 ductile cast iron body.
- Food-grade epoxy coating inside & outside.
- Removable seat in stainless steel - AISI 316.
- Moving parts & fasteners in stainless steel - AISI 303.
- EPDM diaphragm & gasket.
- Float arm & lever in stainless steel - AISI 303.
- Spherical float in polished stainless steel - AISI 304 Ø 180mm.

DN	40/50	60/65	80	100	125	150
Reference	110501	110502	110503	110504	110505	110506
Max min litres	870	880	890	1350	1365	1380
Weight (Kg)	13.6	14.3	16.4	30	41	57

Product Details

Attachments

ROBINET-REMPLISSAGE

Download (505.21KB)
