Raccord laiton droit femelle

DECA brass straight female threaded fitting

153058
Delivery 2 to 3 days
€7.92

€7.92 tax excl.

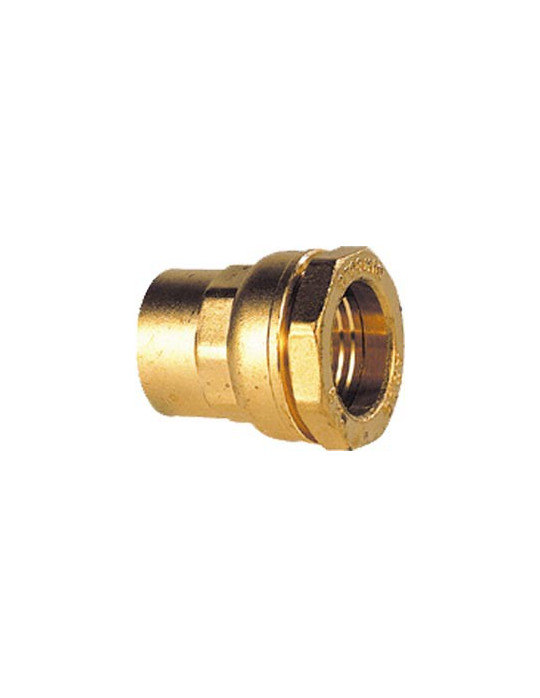

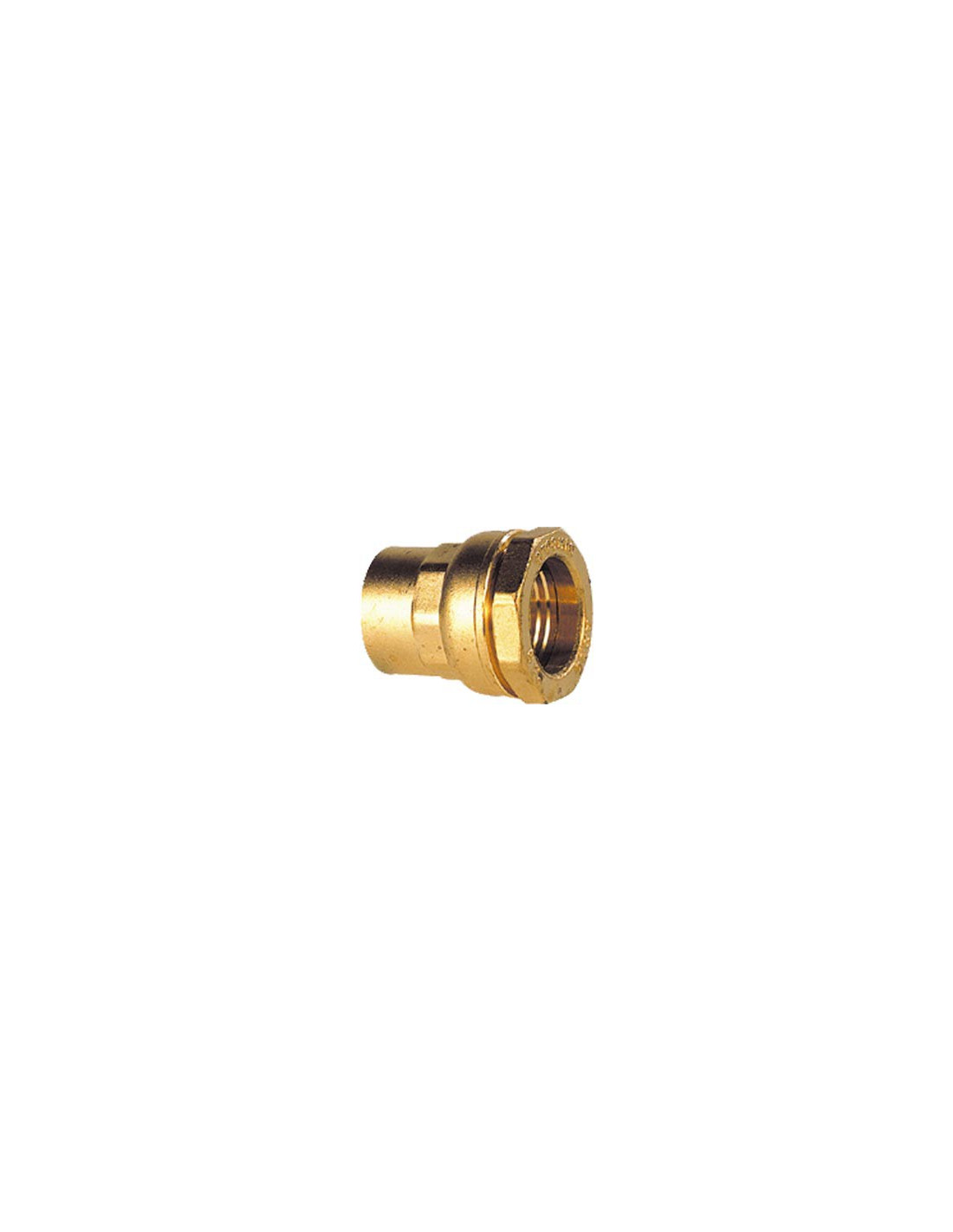

Female brass fitting for tightening on the outside of the HDPE hose - CW617N brass fitting.

Ø nominal

Attributs
Image Ref. Ø nominal Unit price Avail. Buy
DECA brass straight female threaded fitting
153058 20 - 1/2"
€7.92
Available
DECA brass straight female threaded fitting
153059 25 - 3/4"
€13.08
Available
DECA brass straight female threaded fitting
153060 25 - 1"
€13.42
Available
DECA brass straight female threaded fitting
153061 32 - 1"
€15.50
Available
DECA brass straight female threaded fitting
153062 40 - 1" 1/4
€23.50
Available
DECA brass straight female threaded fitting
153063 50 - 1" 1/2
€40.83
Available
DECA brass straight female threaded fitting
153064 63 - 2"
€42.25
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications :
- Compensation ring, grip ring, end piece and fitting in CW617N brass to EN 12165.
- NBR O-ring.
- Deep tube insertion.
- High grip ring with 3 ridges.
- Nominal pressure: PN 16 bar up to DN 63, PN 10 bar above.
- Service temperature: TS 40°C.

Outer diameter
of pipe (mm)		 20 25 25 32 40 50 63
Diameter
Nominal
 1/2" 3/4"  1"  1"  1" 1/4  1" 1/2  2"
Length
(mm)		 47.5 49.5 56 64.5 66.5 74.5
Weight
(Kg)		 0.135 0.169 0.230 0.254 0.416 0.573 0.971
Reference 153058 153059 153060 153061 153062 153063 153064
PN
(bar)		 16
