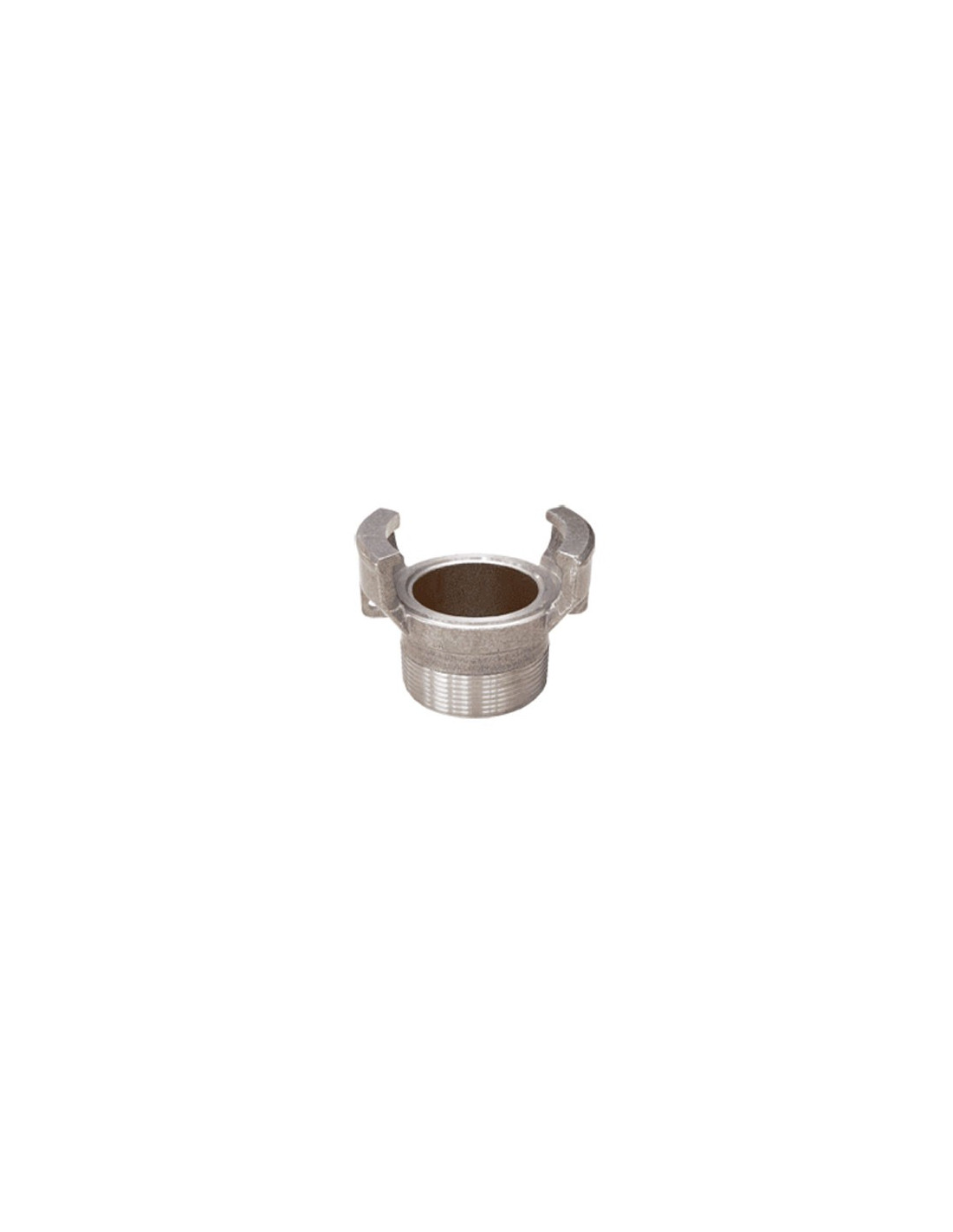

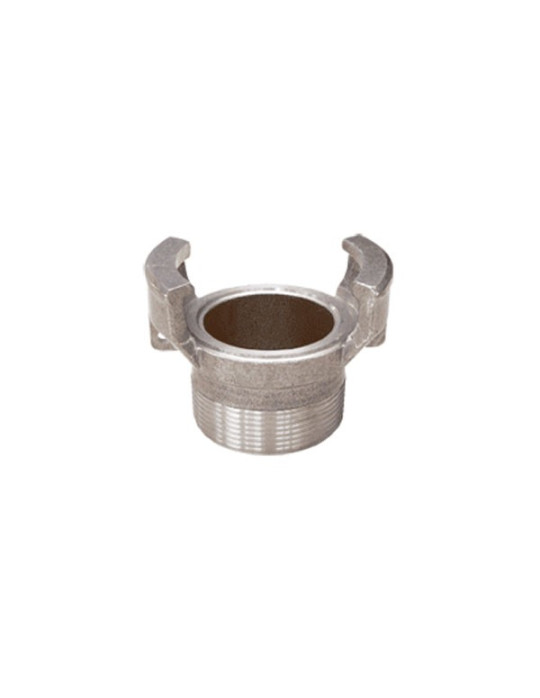

Demi raccord Guillemin mâle sans verrou Alu

Aluminium Guillemin male half coupling without lock

150414
Delivery 2 to 3 days
€6.83

€6.83 tax excl.

Guillemin male coupling, without lock, full range from DN20 to DN100, aluminium half coupling, without gasket, screw-on end.

Model

Attributs
Image Ref. Model Unit price Avail. Buy
Aluminium Guillemin male half coupling without lock
150414 DN20 x 3/4"
€6.83
Available
Aluminium Guillemin male half coupling without lock
150415 DN 25 x 1"
€7.33
Available
Aluminium Guillemin male half coupling without lock
150416 DN 32 x 1" 1/4
€8.33
Available
Aluminium Guillemin male half coupling without lock
150417 DN 40 x 1" 1/2
€9.83
Available
Aluminium Guillemin male half coupling without lock
150418 DN 50 x 2"
€11.33
Available
Aluminium Guillemin male half coupling without lock
150419 DN 65x2" 1/2
€13.19
Available
Aluminium Guillemin male half coupling without lock
150420 DN 80 x 3"
€19.83
Available
Aluminium Guillemin male half coupling without lock
150421 DN 100 x 4"
€25.42
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- Aluminium fittings
- Gasket-free.
- Compliant with standard NF-E 29572

Use:
- Irrigation, fire-fighting, hydrocarbons, compatible fluids
- Minimum and maximum permissible temperature Ts: - 10°C to + 80°C
- Maximum permissible pressure Ps: 16 bar

Diameter
nominal		Reference
DN 20 x 3/4" 150414
DN 25 x 1"  150415
DN 32 x 1" 1/4  150416
DN 40 x 1" 1/2  150417
DN 50 x 2"  150418
DN 63 x 2" 1/2  150419
DN 80 x 3"  150420
DN 100 x 4"  150421
