Raccord laiton coudé femelle - PN16

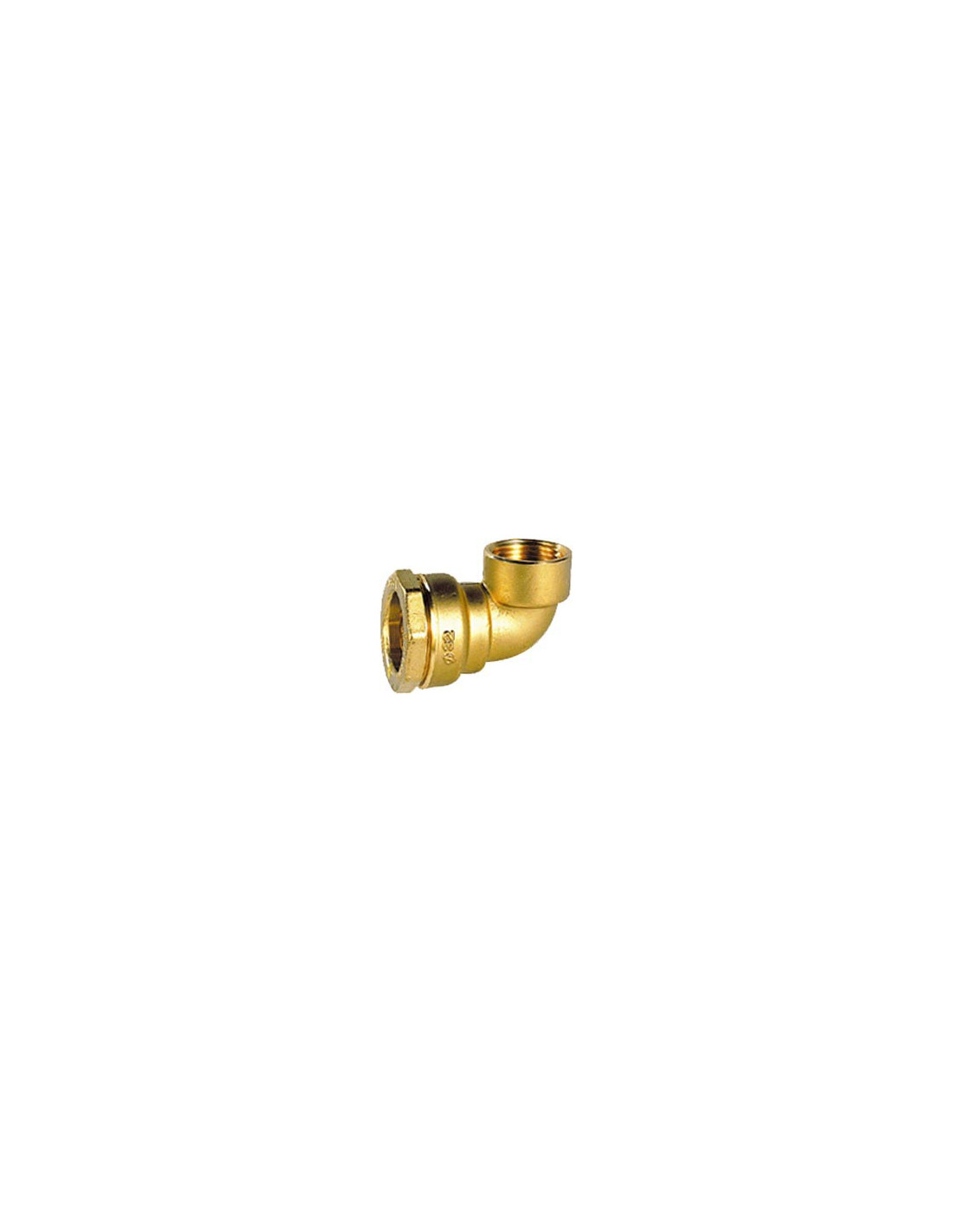

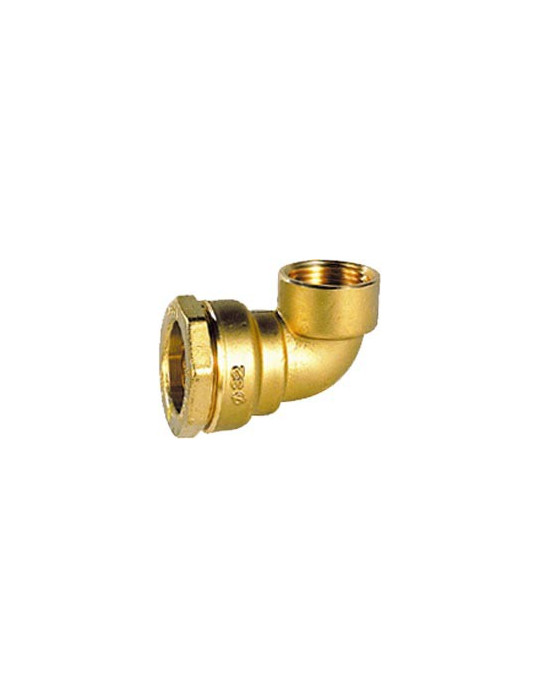

DECA brass female threaded elbow fitting

153032
Delivery 3 to 5 days
€13.42

€13.42 tax excl.

Female brass elbow fitting on the outside of the PN16 hose - CW617N brass fitting.

.

Ø nominal

Attributs
Image Ref. Ø nominal Unit price Avail. Buy
DECA brass female threaded elbow fitting
153032 25 - 3/4"
€13.42
Available
DECA brass female threaded elbow fitting
153033 32 - 1"
€22.17
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications :
- Compensation ring, grip ring, end piece and fitting in CW617N brass to EN 12165.
- NBR O-ring.
- Deep tube insertion.
- High grip ring with 3 ridges.
- Service temperature: TS 40°C.

Nominal Ø2532
Female 3/4" 1"
Length
(mm)		 28 32
Height
(mm)		 53.5 60.5
Weight
(Kg)		 0.233 0.338
Reference 153032 153033
PN
(bar)		 16
