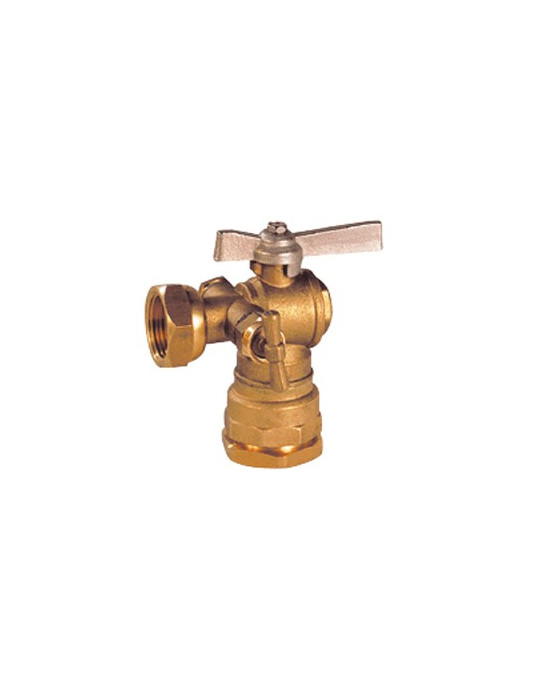

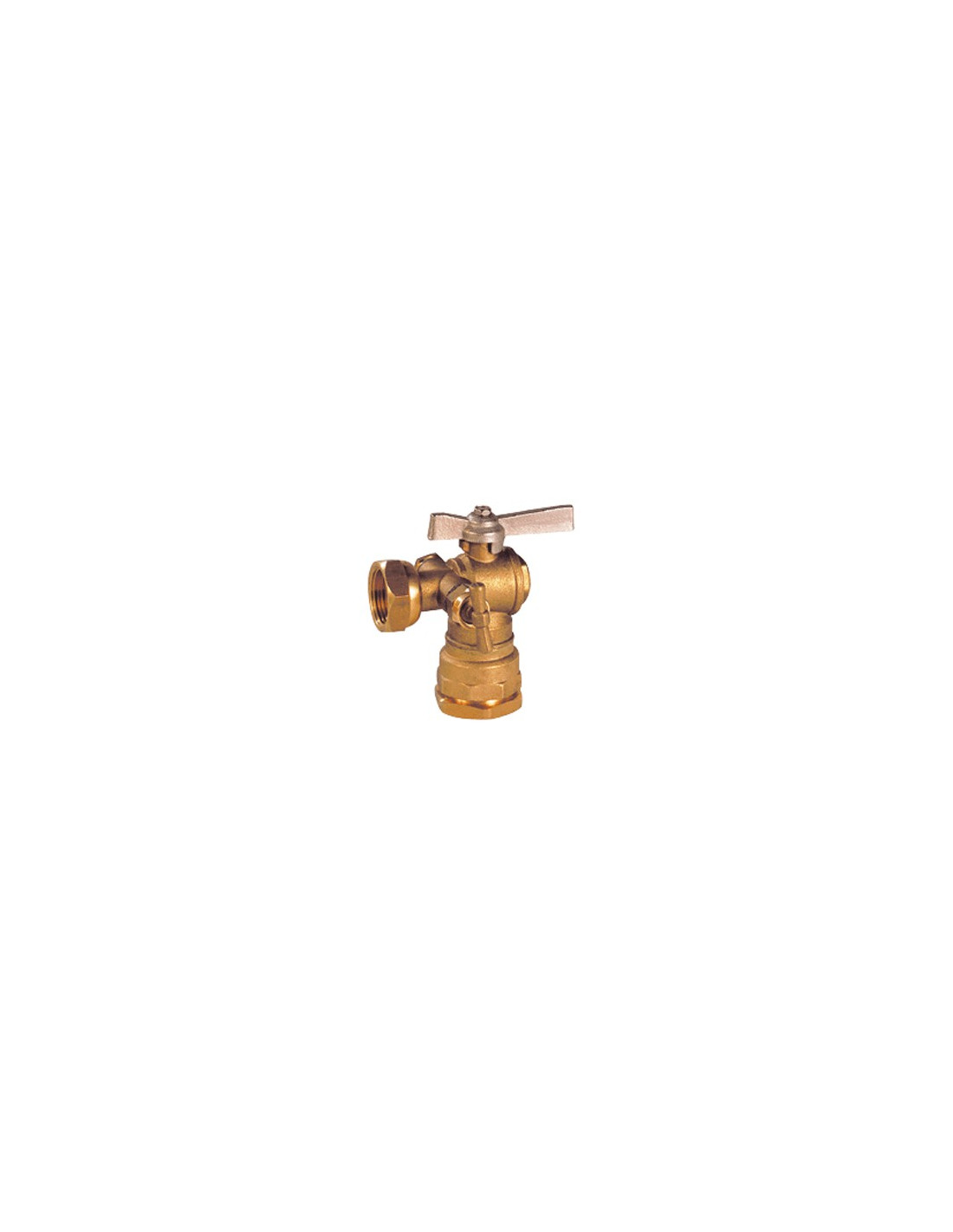

Vanne à écrou tournant + raccord DECA droit

Swivel nut valve + angled DECA fitting + bleed

153115
Delivery 3 to 5 days
€37.17

€37.17 tax excl.

rating Read the review
Average rating: 10/10 Number of reviews: 1

Brass ball valve with DECA elbow fitting (90°) + captive nut + drain tap, installation before or after the meter. Valve with 2/3 - 1/3 brass handle.

Description

Specifications :
- Captive nut.
- Drain valve.
- Brass lever 2/3 - 1/3.
- Compensation ring, grip ring, end piece and fitting in CW617N brass to EN 12165.
- NBR O-ring.
- Deep tube insertion.
- High grip ring with 3 ridges.
- Nominal pressure: PN 16 bar up to DN 63, PN 10 bar above.
- Service temperature: TS 40°C.

Nominal Ø 25
Reference 153115
PN (abr) 20
Nut 3/4"
Ø bore 15
L (mm) 64.5
E (mm) 70
H (mm) 38
H1 (mm) 95
W (across flats) (mm) 32
W1 (across flats) (mm) 39
Weight (Kg) 0.511



Swivel nut valve + angled DECA fitting + bleed
