Vanne sphérique Inox 304 alimentaire DIN M/M
Vanne sphérique Inox 304 alimentaire DIN M/M
Vanne sphérique Inox 304 alimentaire DIN M/M
Vanne sphérique Inox 304 alimentaire DIN M/M

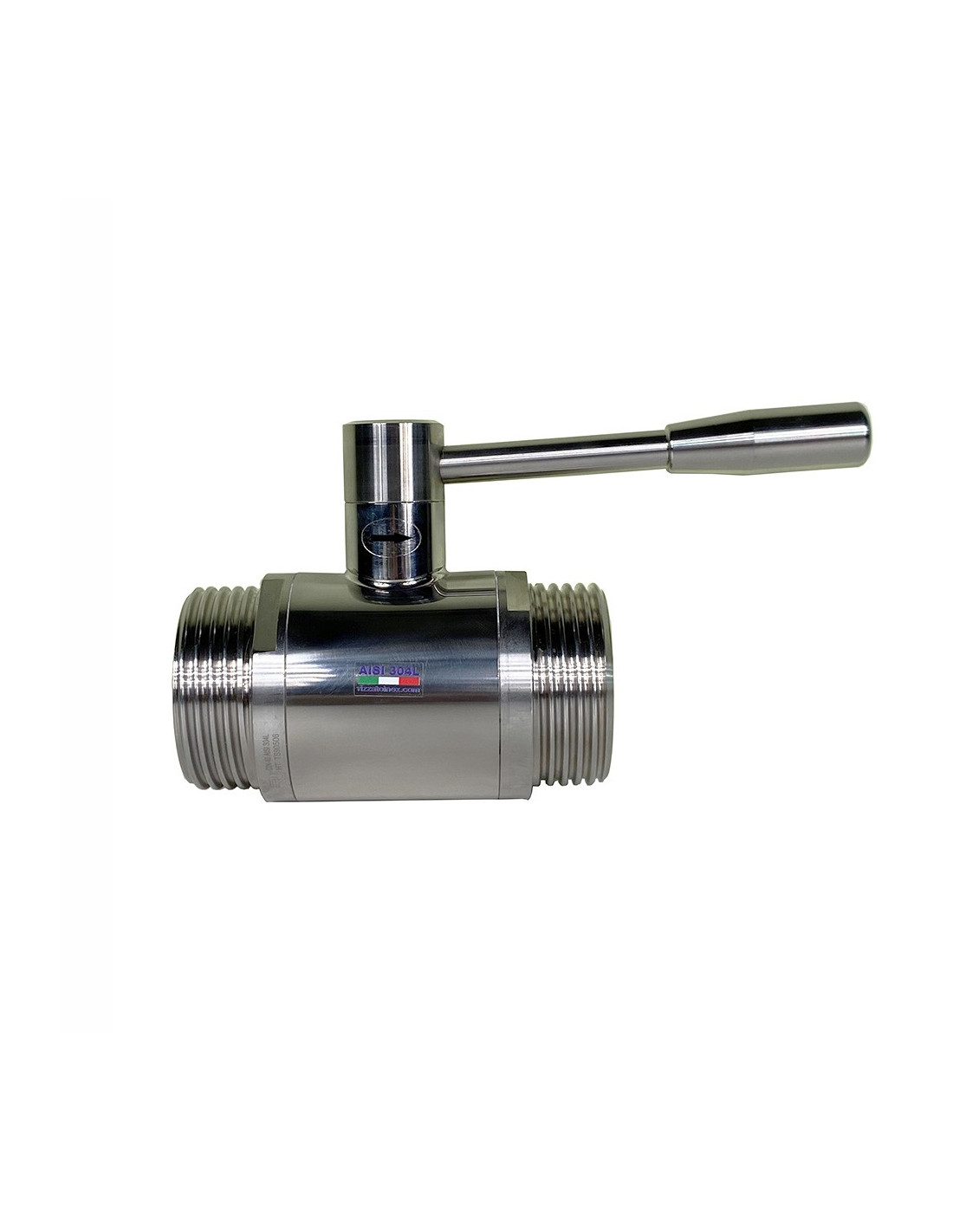

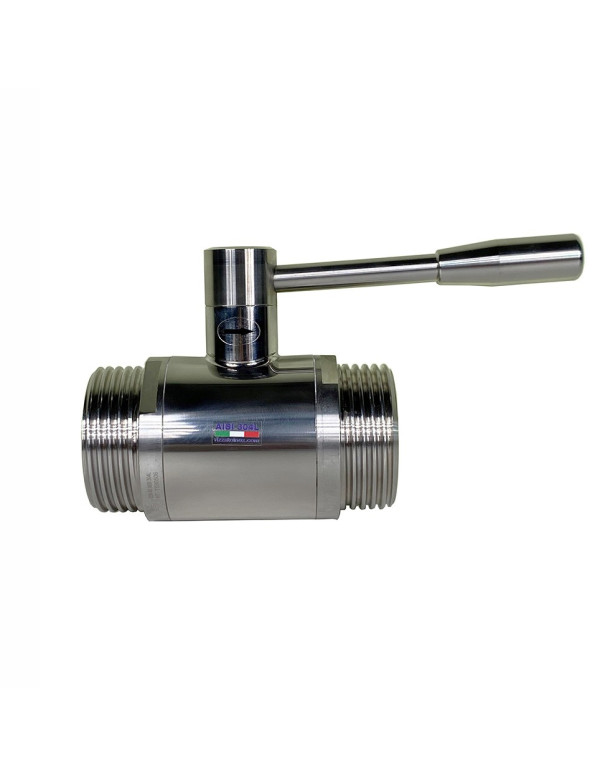

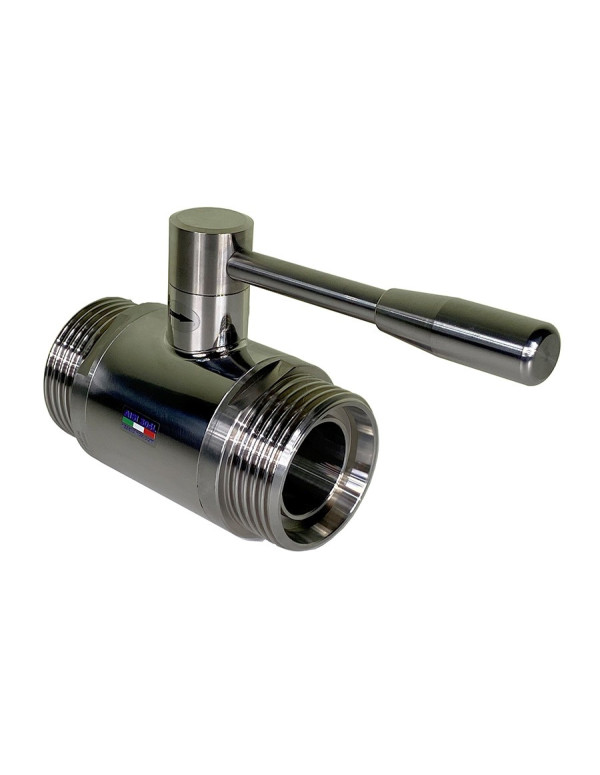

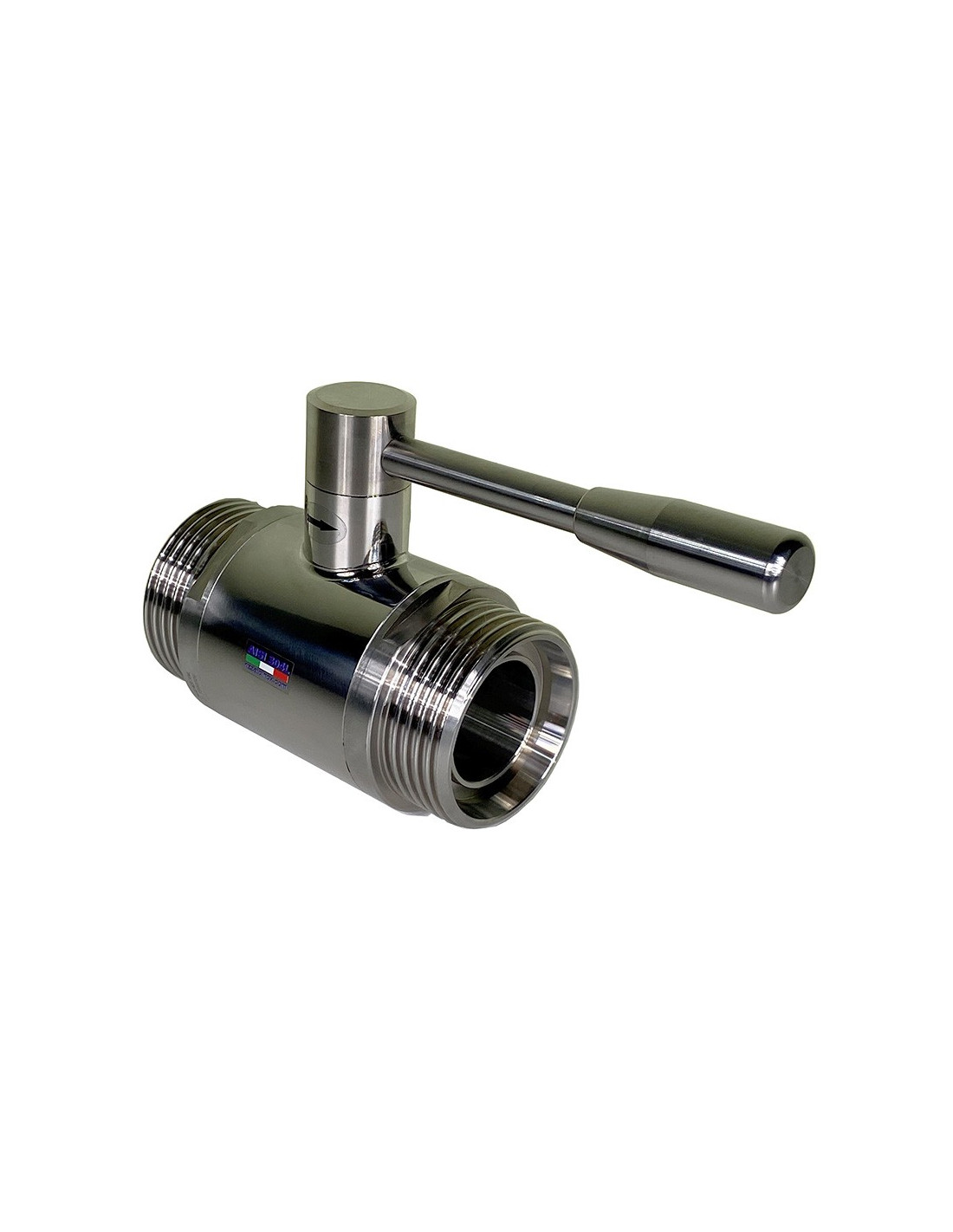

DIN M/M food-grade 304 stainless steel ball valve

114068
Delivery 2 to 3 days
€104.17

€104.17 tax excl.

Ball valve with DIN threaded / male threaded ends, PTFE and EPDM gasket and seal, entirely made of AISI 304 stainless steel. The valve is certified for food products and liquids and complies with standard DIN 11851 for use in the food, brewing and wine-making industries. Available in DIN 25 and 40 diameters.

Diameter

Attributs
Image Ref. Diameter Unit price Avail. Buy
DIN M/M food-grade 304 stainless steel ball valve
114068 25
€104.17
Available
DIN M/M food-grade 304 stainless steel ball valve
114069 40
€135.83
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Ball valve made of 304 stainless steel, DIN threaded/male threaded connection. This valve is certified for food products and liquids and is widely used in breweries, distilleries, the food industry and many other sectors that require equipment that ensures food safety.

Certification:
- DIN11851 certifies that the product is suitable for use in the food and chemical industries.
- FDA standard, title 21 CFR and related parts.
- MOCA certified.
- European Regulation EC 1935/2004.

DN
(mm)		 Reference Material Temperature °C

Max pressure
(bar)
25 114068 Aisi 304 -10°C / +90°C 20
40 114069 Aisi 304 15

Part Material Description
1 Aisi 304 Handle
2 Stem
3 EPDM O-ring
4 Aisi 304
 End
5 Ball
6 PTFE Gasket
7 EPDM O-ring
8 Aisi 304 Body

DIN M/M food-grade 304 stainless steel ball valve
