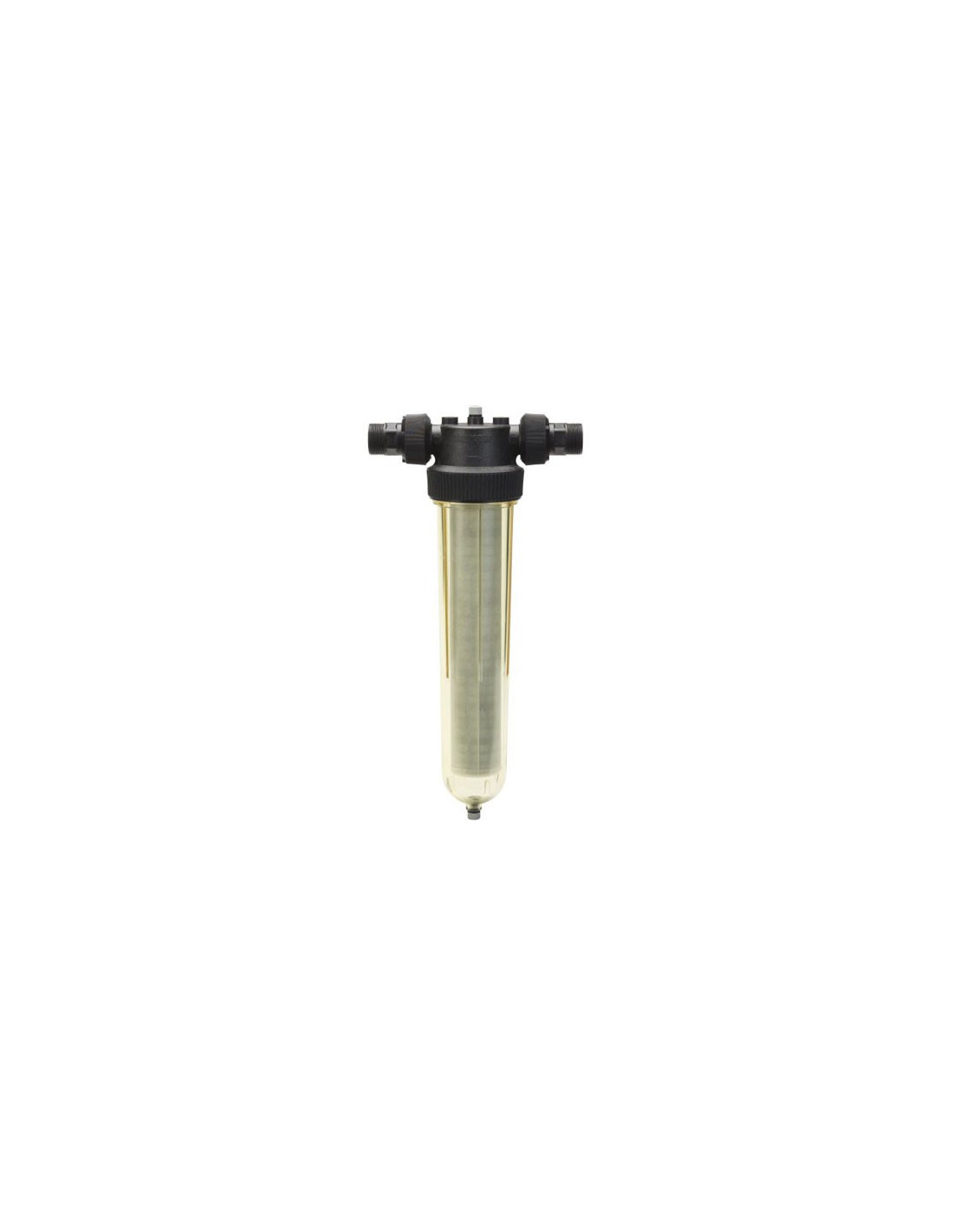

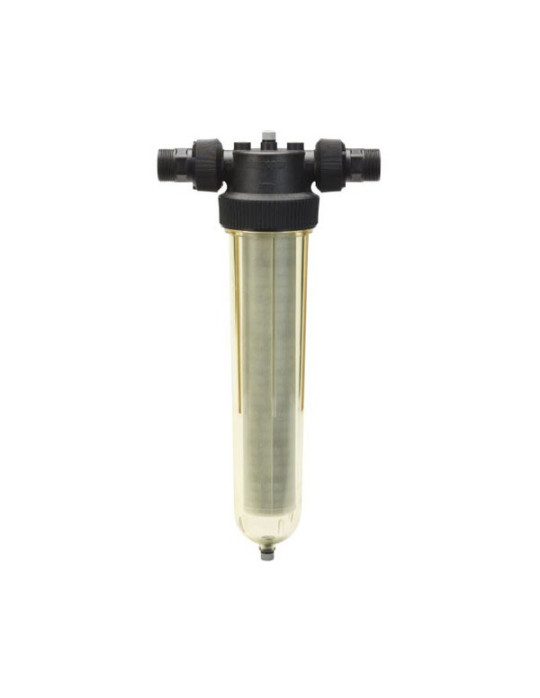

Filtre CINTROPUR NW32

CINTROPUR NW32 filter

703244
Delivery 2 to 4 days
€129.17

€129.17 tax excl.

The CINTROPUR NW32 filter, suitable for food and drinking water use, centrifugal effect by the precipitation of heavy particles at the bottom of the bell while the filter sleeve ensures the final filtration according to the chosen fineness.

Description

Filtration of solid particles present in water (earth, sand, rust, iron, etc.), protection of domestic, collective and agricultural sanitary water circuits. The protective filter will be ideally placed at the entrance to the installation to protect all connected devices.

Benefits :
- High flow rate up to 6.5 m3 / h.
- Low pressure drop.
- Centrifugal pre-filtration with cyclonic effect.
- Professional, robust and reliable device.
- Quick and easy lower purge.
- Exclusive, ecological and inexpensive filter screen system.
- Continuous visualization of the clogging of the filter screen (transparent bell).

Model NW32
Reference 703244
connecting diameter 1" 1/4
Average flow
 6.5 m3/h
Operating pressure
 10 bar
Use pressure
 16 bar
Max temperature 50 °C
Filtration surface 840 cm²
Sleeve 25µ
Weight (Kg) 1.7

Instalation:

CINTROPUR NW32 filter



Product Details
Attachments
Comments
All product reviews comply with DIRECTIVE (EU) 2019/2161
