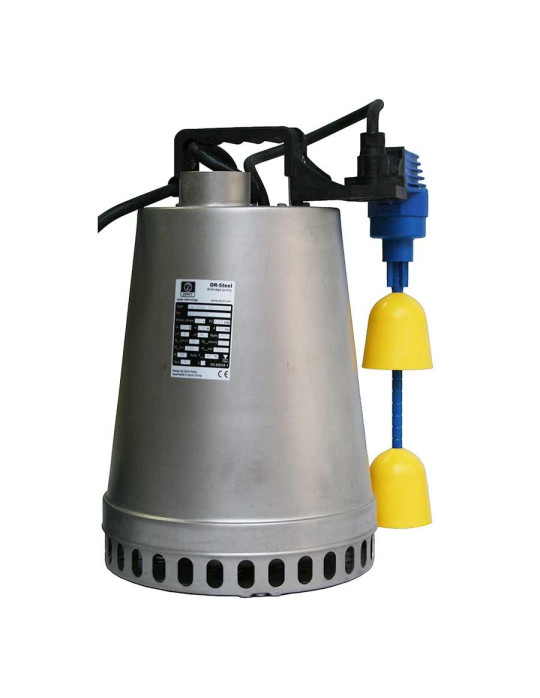

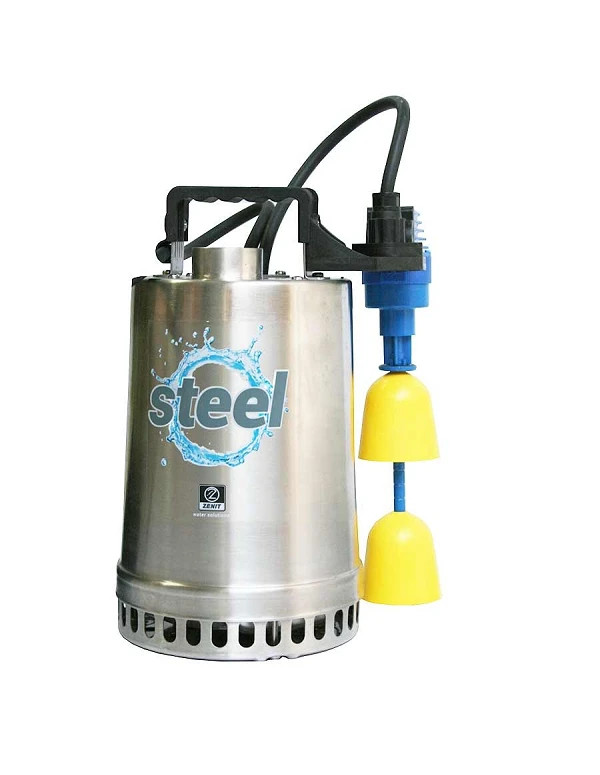

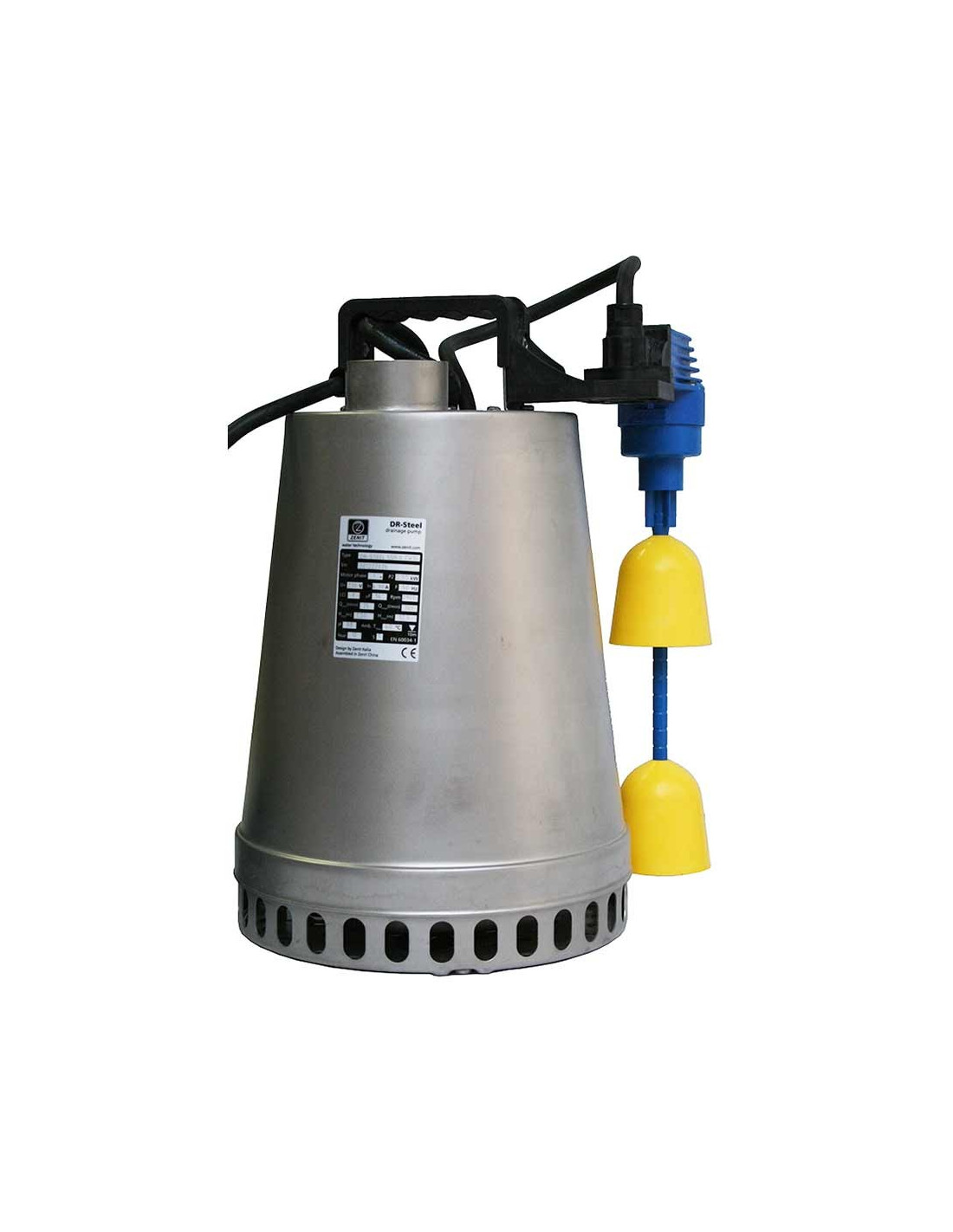

DR STEEL TCW clear water drainage pump

Submersible pump in 304 chrome-nickel stainless steel, supplied with 10m cable + standard plug, adjustable magnetic float.

Use:

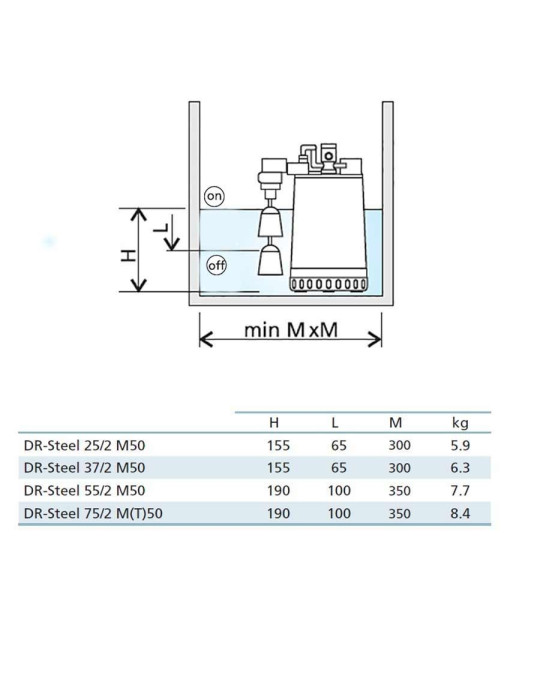

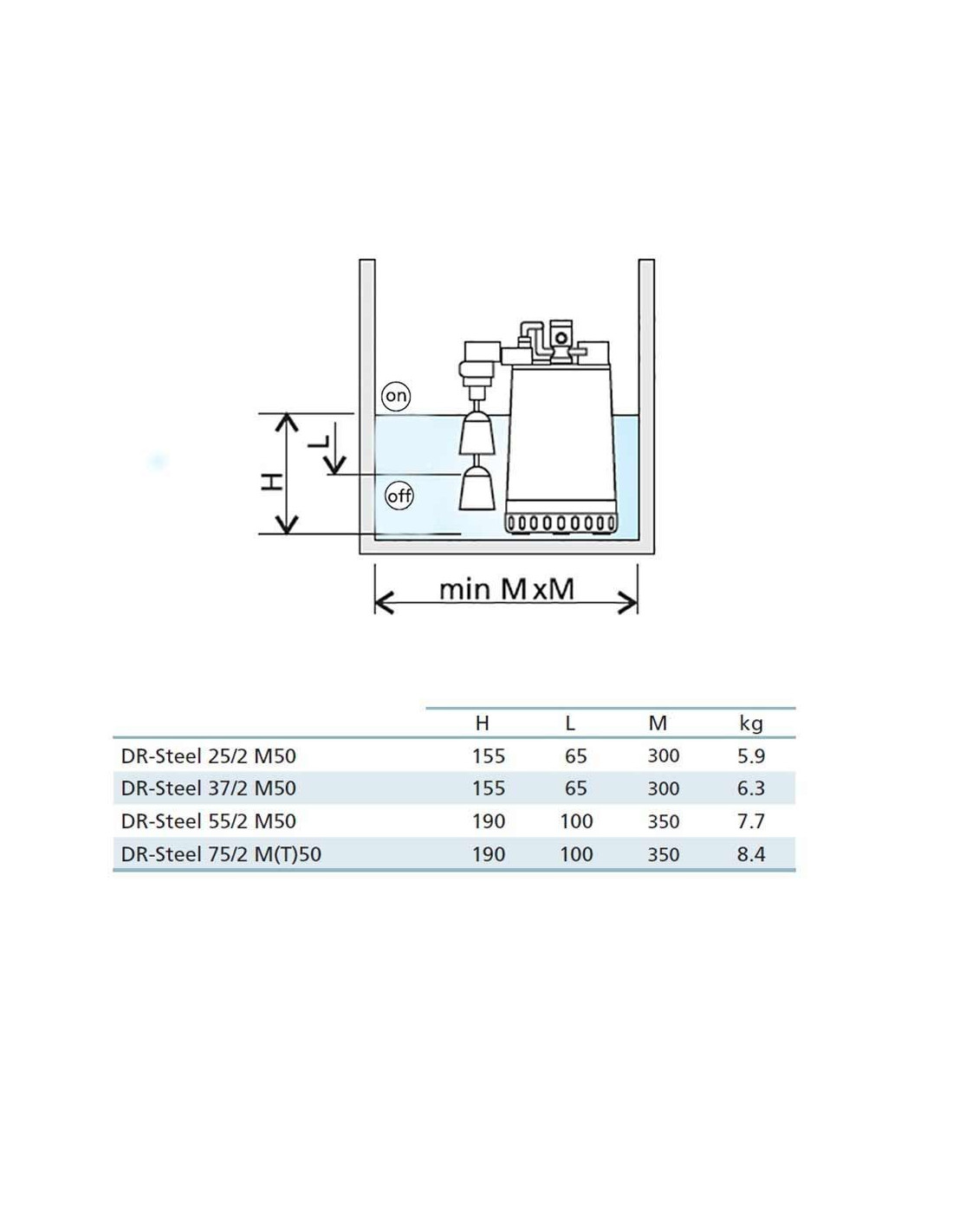

- Installation in a chamber of at least 30 x 30 cm, (models DR STEEL TCW 25/2 M50 and DR STEEL TCW 37/2 M50), chamber at least 35 x 35 cm, (models DR STEEL TCW 55/2 M50 and DR STEEL TCW 75/2 M50).
- Draining of flooded rooms, cellars, basements.
- Rainwater collection, for domestic and residential use.
- Emptying of sumps, pits, tanks.
- Drawing water from ponds, watercourses and wells.
- Pumping of non-aggressive liquid in the food and pharmaceutical industry.

Specifications:
- Pump body, motor frame and suction strainer in 304 chrome-nickel stainless steel.
- Open multi-channel impeller.
- 420 stainless steel shaft.
- Double mechanical seal, SIC-AI in an oil chamber with food-grade oil lubrication, V-ring in direct contact with the liquid.
- Adjustable vertical float switch. (see table below).
- Built-in thermal protection.
- Built-in capacitor.
- 304 stainless steel handle.
- Insulation class F.
- Operating temperature 40°C (90°C max. for 3 min).
- pH of pumped liquid: 6 - 14.
- Maximum 30 starts/hour.
- 2-year warranty.

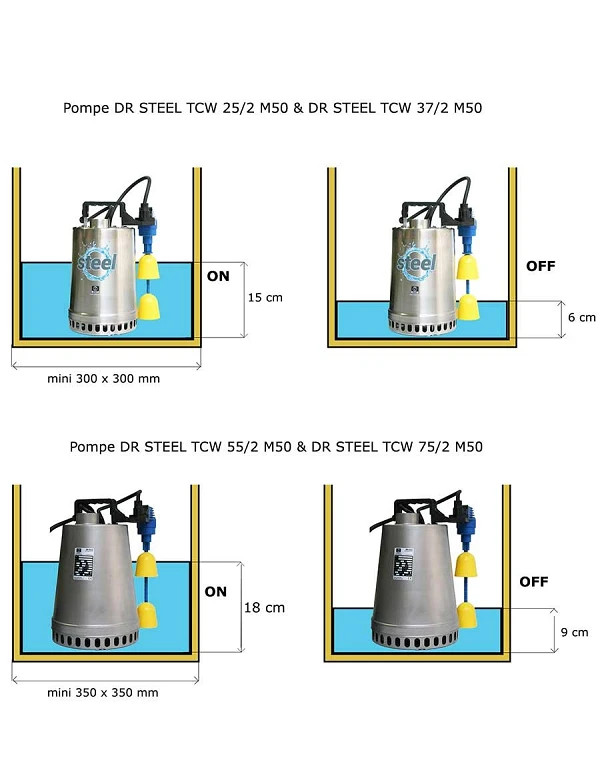

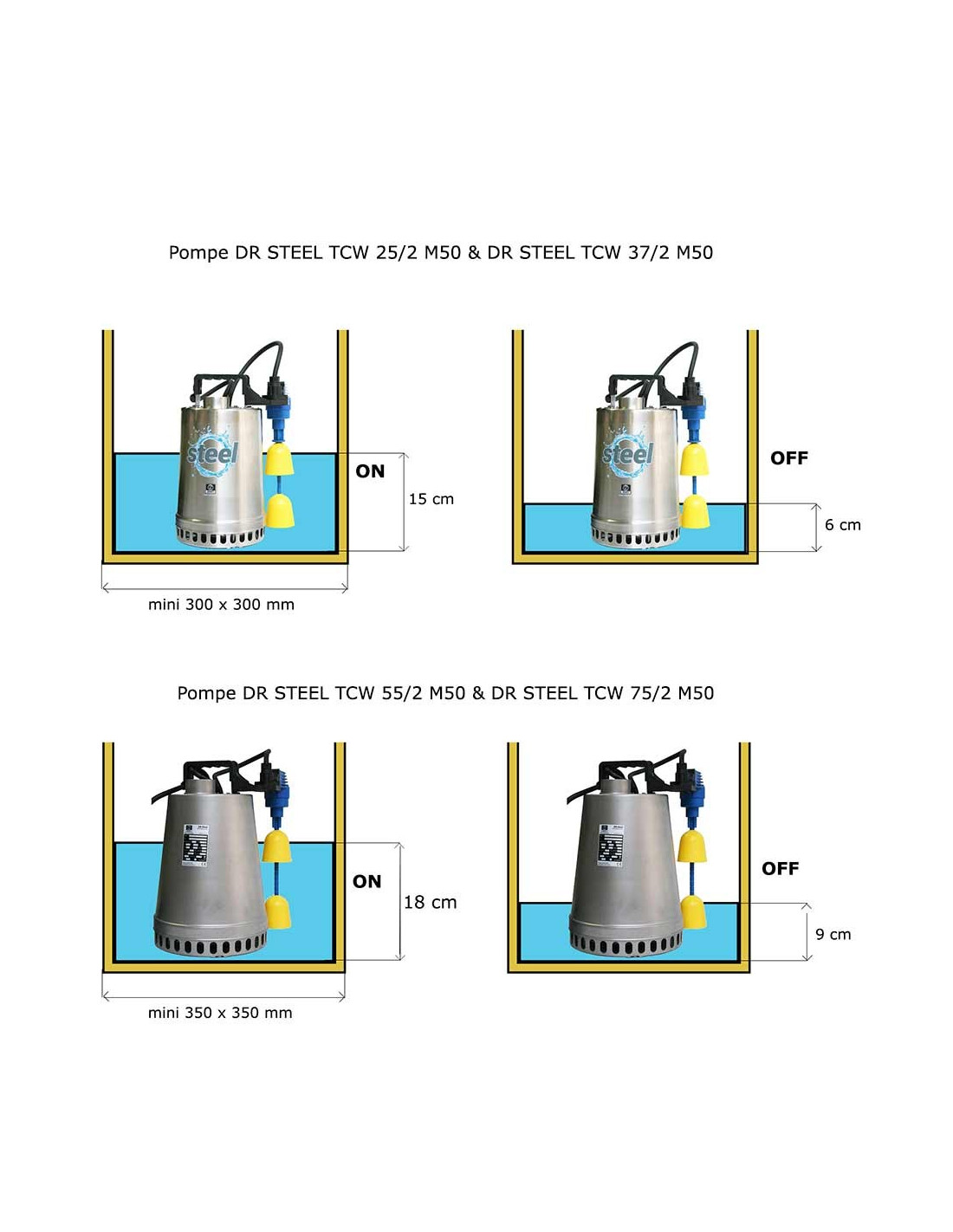

Vertical magnetic float:
- Both floats down: Pump starts at 10 cm from the floor, pump stops at 6 cm from the floor.
- One float down and the other up: Pump starts at 15 cm from the floor, pump stops at 6 cm from the floor.
- Both floats up: Pump starts at 15 cm from the floor, pump stops at 10 cm from the floor.
