Use:
- Ideal for sea water and corrosive liquids.
Specifications:

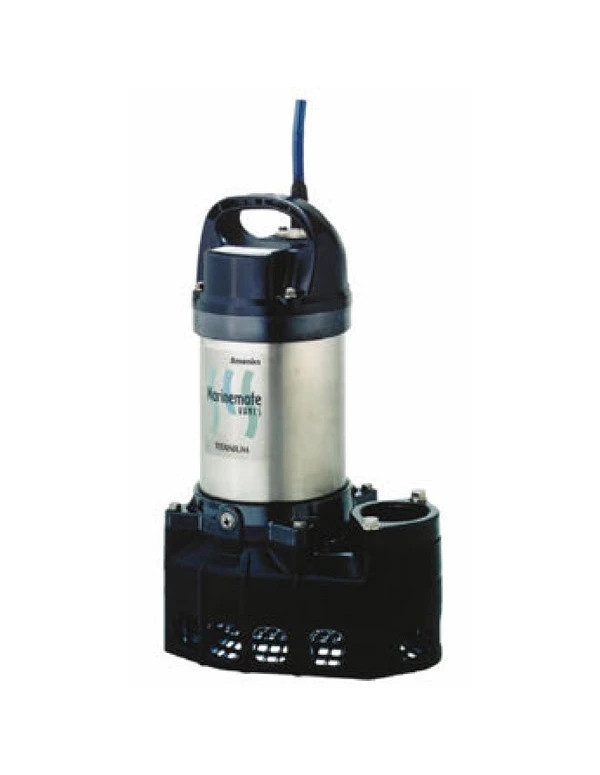

- Pump made entirely of titanium and synthetic resin.
- Very corrosion resistant.
- No contact between the pumped liquid and the seals.
- Vortex impeller with free and full passage in the volute.
- The Vortex effect and the position of the impeller limit abrasion and prevent clogging.
- Impeller, shaft, motor casing and screws in titanium.
- The other parts are in synthetic resin.
- Sealed by two seals in a paraffin bath.
- TMA version: with level detection probe, automatic start and stop.
| Model | 50TM2.4S | 50TM2.75 | 50TMA2.4S |
|---|---|---|---|
| Reference | 210284 | 210285 | 210286 |
| Power (Kw) | 0.40 | 0.75 | 0.40 |
| Automatic probe | WITHOUT | WITH | |
| Power supply (V) | 230 | 400 | 230 |

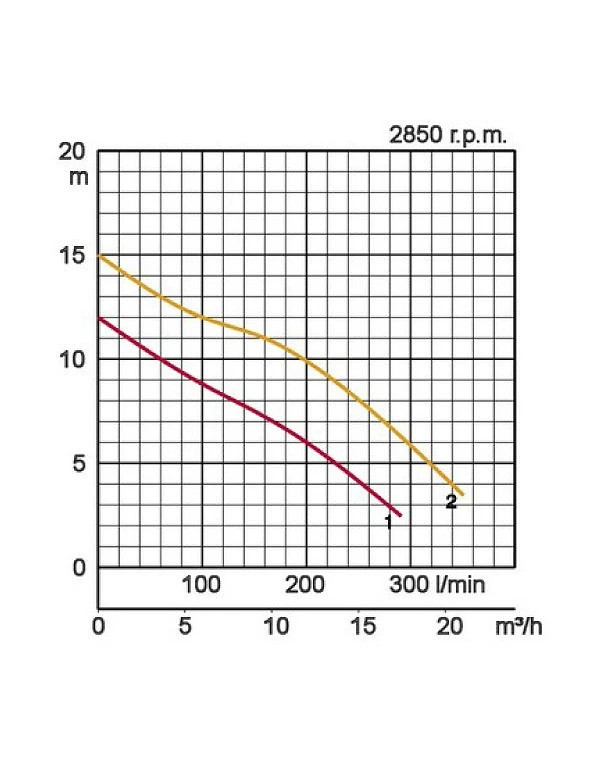

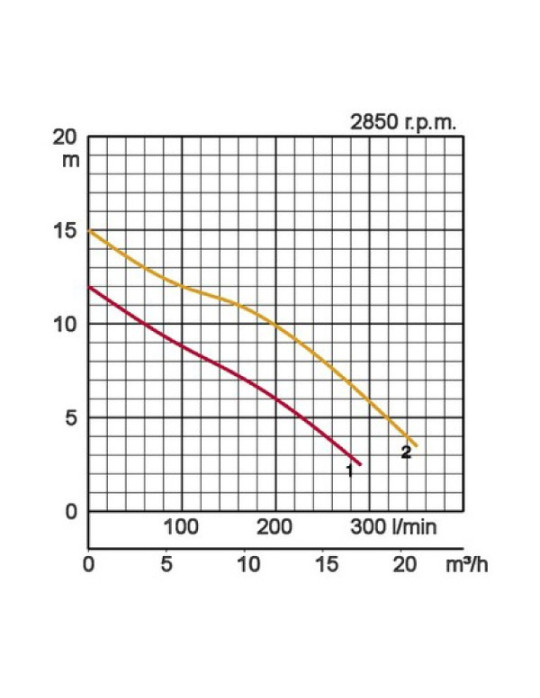

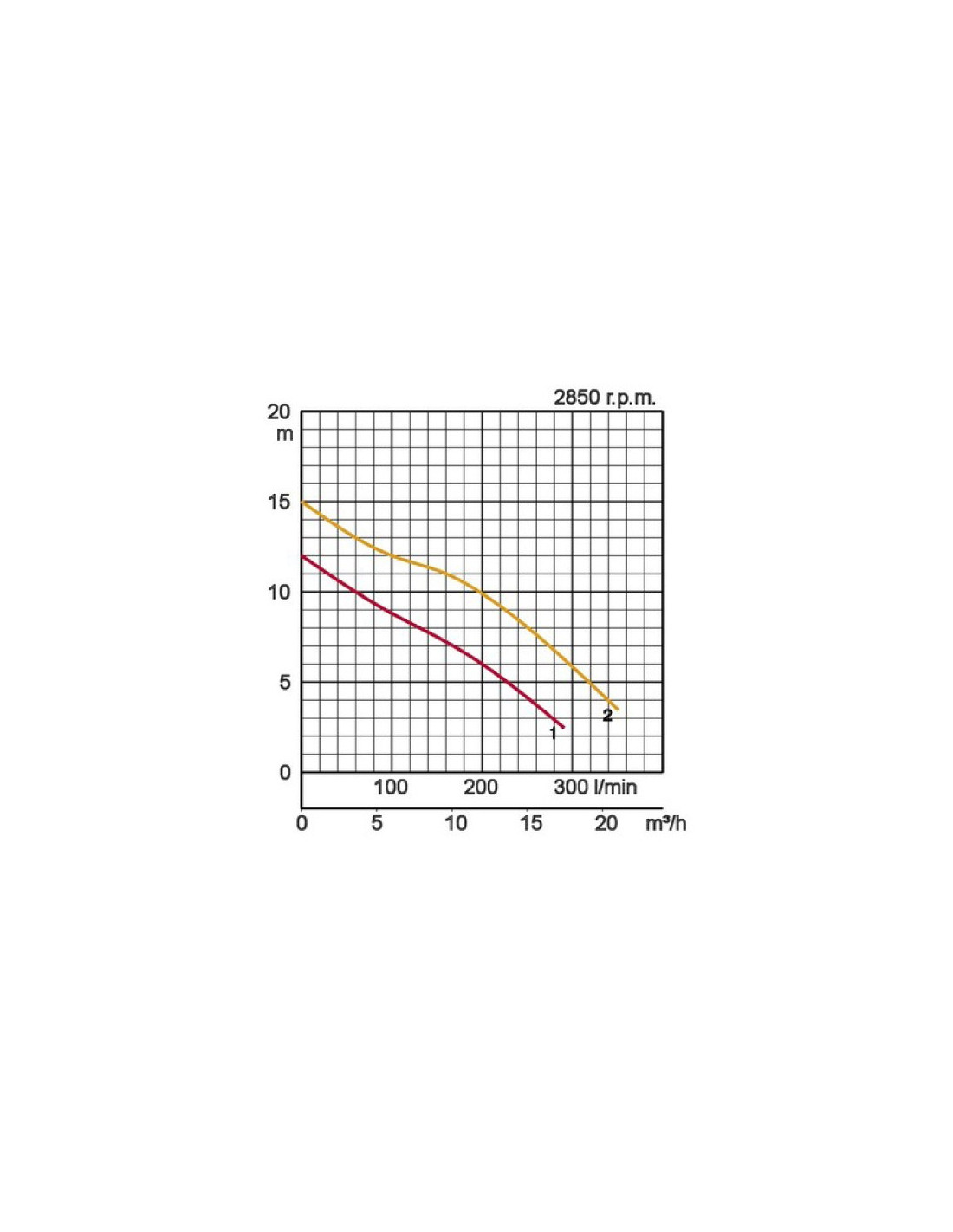

| Max. flow rate (m3/h) | 17.4 | 21 | 17.4 |
| Max TDH (m) | 12 | 15 | 12 |
| Ø discharge (mm) | 50 | ||
| Particle size (mm) | 10 | ||
| Fluid temperature | 0 to 40 °C | ||
| Built-in motor protection | WITH | ||
| Weight (Kg) | 7.9 | 9.1 | 8.1 |
Dimensions:
| Models | A | A1 | A2 | B | B1 | D | D1 | D2 | H | W1 |
|---|---|---|---|---|---|---|---|---|---|---|
| 50TM2.4S 50TMA2.4S |
236 | 115 | 81 | 102 | 90 | 162 | 76 | 86 | 360 | 110 |
| 50TM2.75 50TMA2.75 |
236 | 115 | 81 | 102 | 90 | 162 | 76 | 86 | 374 | 110 |
