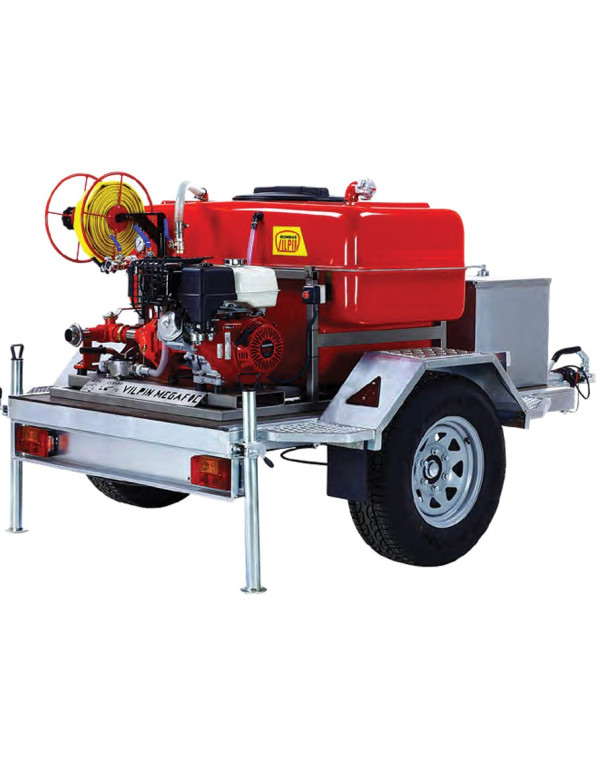

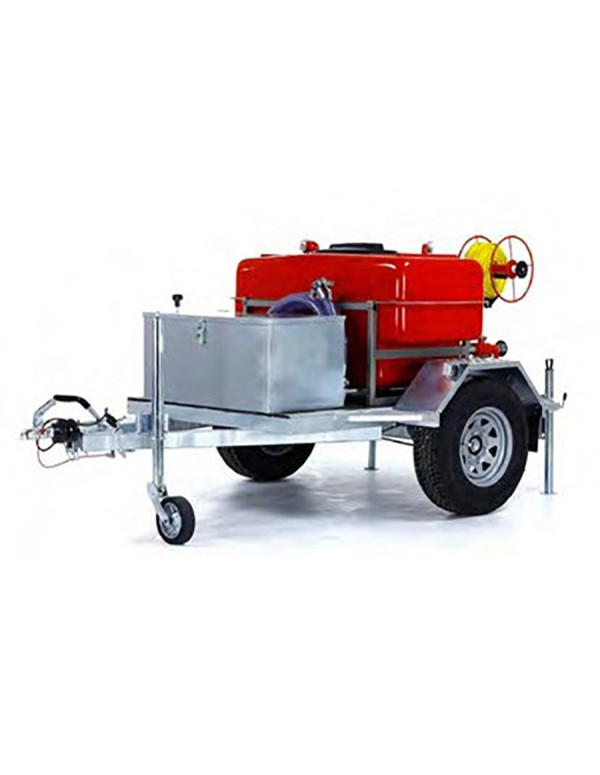

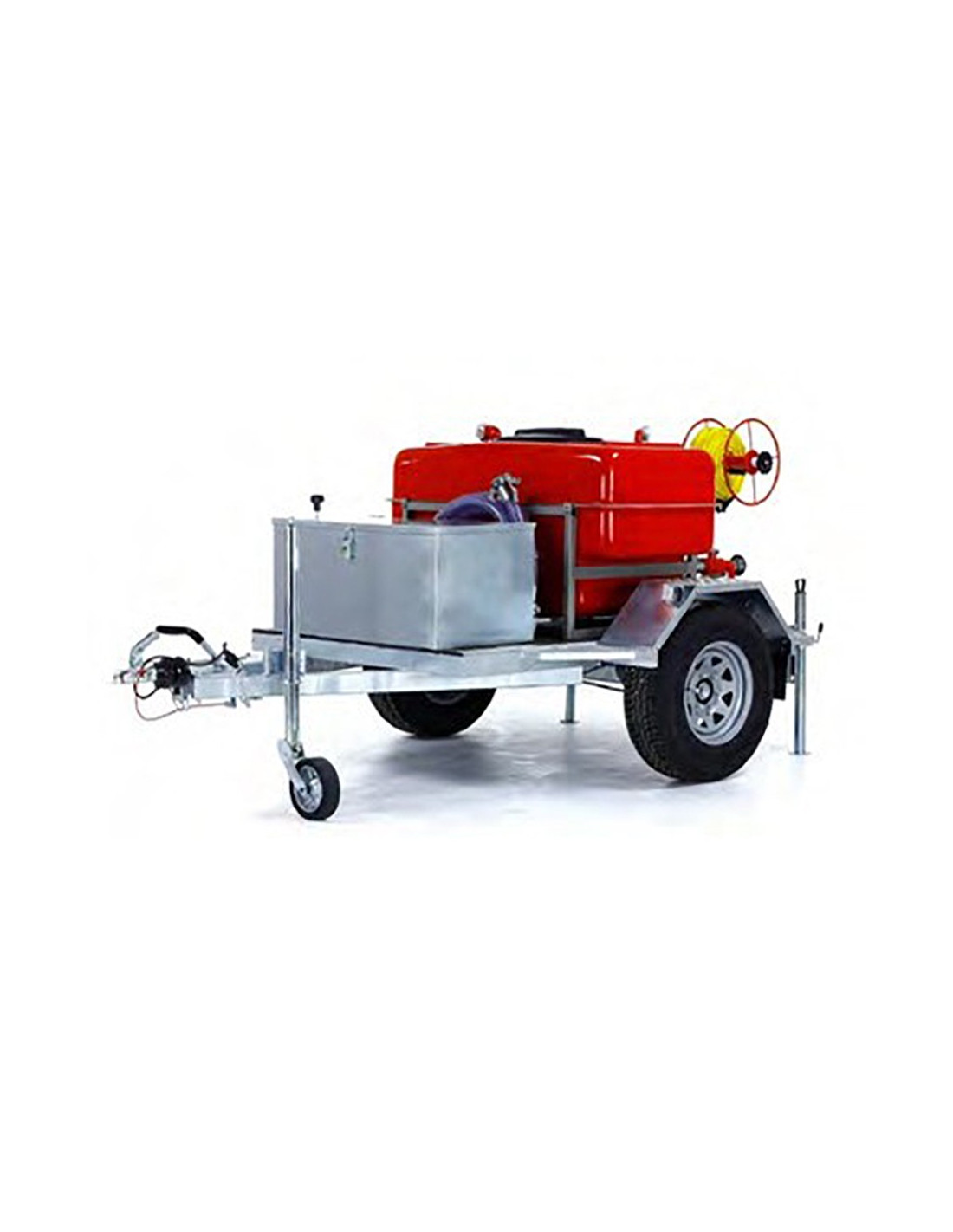

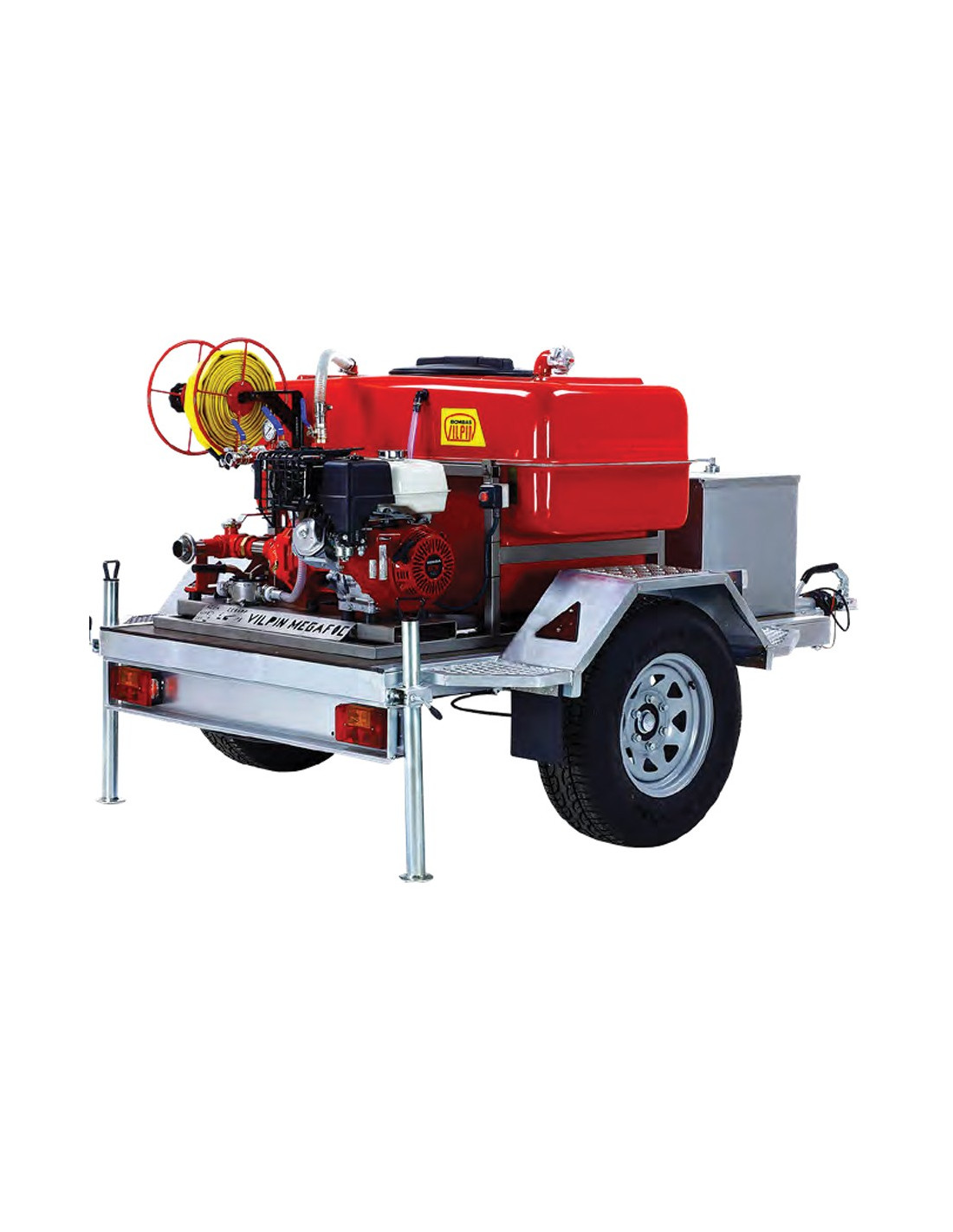

Remorque tout terrain d'intervention lutte incendie

The all-terrain fire-fighting response trailer is configured to intervene and act quickly in the event of outbreaks of fire or other emergency situations. Fully made from high-quality materials, HONDA engines, VILPIN pumps and selected accessories. The 180-600 fire-fighting response trailer is a reliable and robust system that you can count on for each of your interventions.

Uses:
- Civil protection.
- Fire-fighting.
- Cleaning.
- Irrigation.
- Lifting.

Specifications:
- Honda GX-390 engine - 13 cv - 3600 rpm, manual start.
- Vilpin engine-driven pump, centrifugal type, model 2RD 50/13, with hardened aluminium body, double bronze impellers.
- Max pressure 18 bar.
- Flow rate 180 l/min.
- Set of Guillemin fire couplings, suction DN40 and discharge DN40 + DN25.
- Reel: For 40 metre hose, diameters 25 to 45.
- Oil-filled pressure gauge 25 bar.
- Priming: By stainless steel manual pump.
- Filter at pump inlet.
- 600 litre tank.
- All stainless steel chassis.
- Set of valves, filter, check valve, fittings.
- Can be fully dismantled.

Trailer:
- CE approved, DREAL approved, TUV certified.
- D60 retractable jockey wheel, with automatic lifting.
-GVW 1350 Kg, overrun brakes, reinforced tubular welded chassis, hot-dip galvanising treatment,, Al-Ko 1350 Kg axle, fixed drawbar, Al-Ko brake linkage and brake control.
- 5-sided mudguards in 15/10m hot-dip galvanised.
- 174R14C wheel. (14 inch reinforced van).
- Recessed lighting.


Find the product data sheet available to download.
