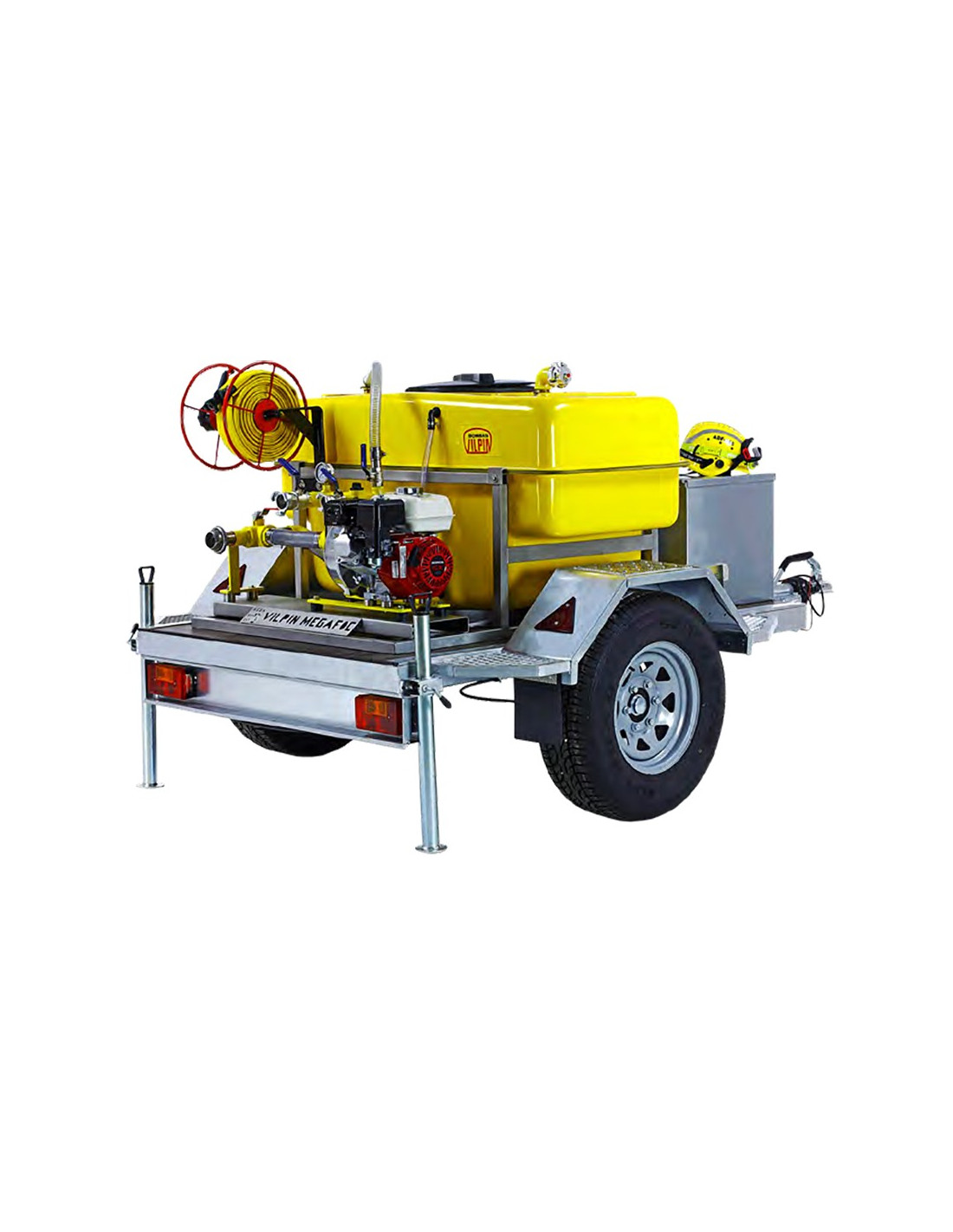

The all-terrain fire-fighting response trailer is configured to intervene and act quickly in the event of outbreaks of fire or other emergency situations. Fully made from high-quality materials, HONDA engine, VILPIN pump and selected accessories. The 90-600 fire-fighting response trailer is a reliable and robust system that you can count on for each of your interventions.
Uses:
- Civil protection.
- Fire-fighting.
- Cleaning.
- Irrigation.
- Lifting.
Specifications:
- Honda GX-200 engine - 6.5 cv - 3600 rpm, manual start.
- Vilpin engine-driven pump, centrifugal type, with hardened aluminium body, double bronze impellers.
- Max pressure 10 bar.
- Flow rate 320 l/min.
- Set of Guillemin fire couplings, suction DN40 and discharge DN40 + DN25.
- Reel: For 40 metre hose, diameters 25 to 45.
- Pressure gauge: Oil-bath up to 15 bar.
- Priming: Self-priming.
- Filter at pump inlet.
- 600 litre tank.
- All stainless steel chassis.
- Set of valves, filter, check valve, fittings.
- Can be fully dismantled.
Trailer:
- Class B approval.
- "V" arm.
- Jockey wheel with threaded Ø60 mm axle.
- 1350 Kg axle, KNOTT brake, reinforced chassis.
- All-terrain wheel 235/75 R-15.
| Model | REMORQUE 90-600 |
|---|---|
| Reference | 225226 |
| Max pressure (bar) | 9 |
| Max flow rate (l/min) | 300 |
| Protected area | 31000 m2 |
| Power (hp) | 6.5 |
| Motor | HONDA GX 200 |
| Pump | VILPIN |
| Suction | 1" 1/2 |
| Discharge | 1" 1/2 + 1" + 1" |
| Start-up | Self-priming |
| Fuel | Unleaded petrol |
| Suction (m) | 6 |
