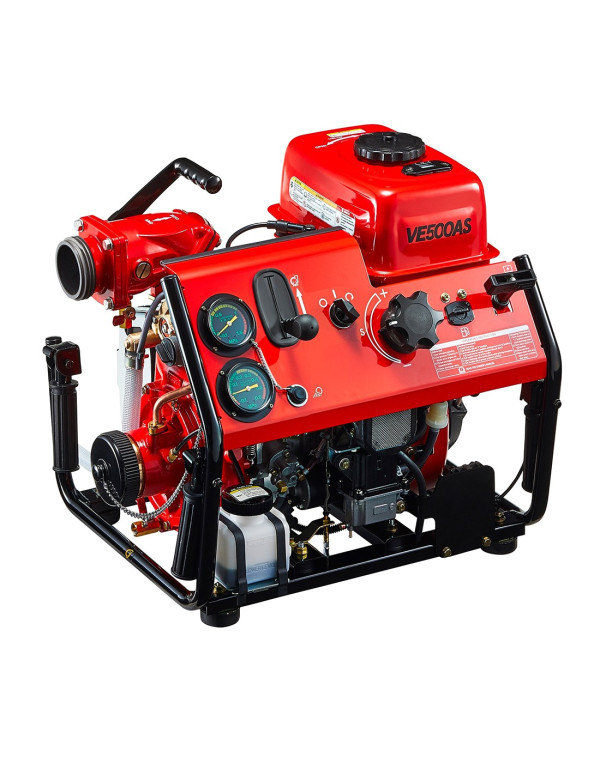

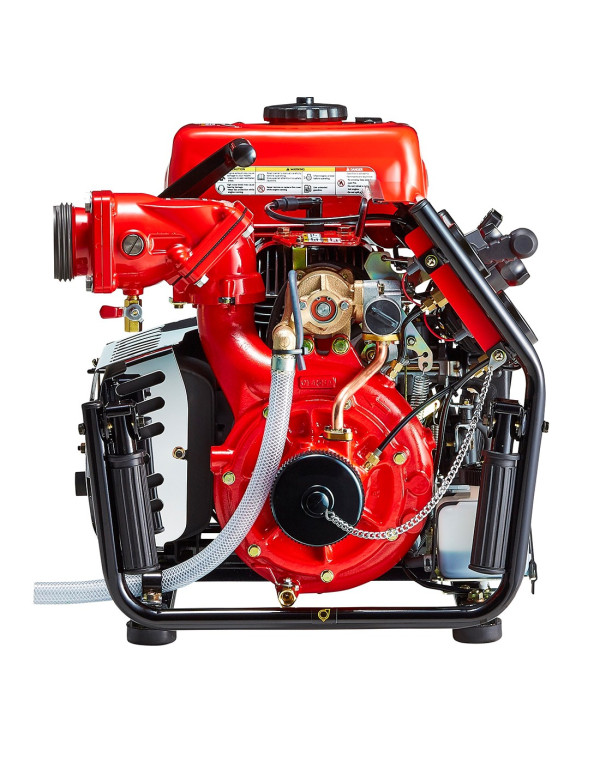

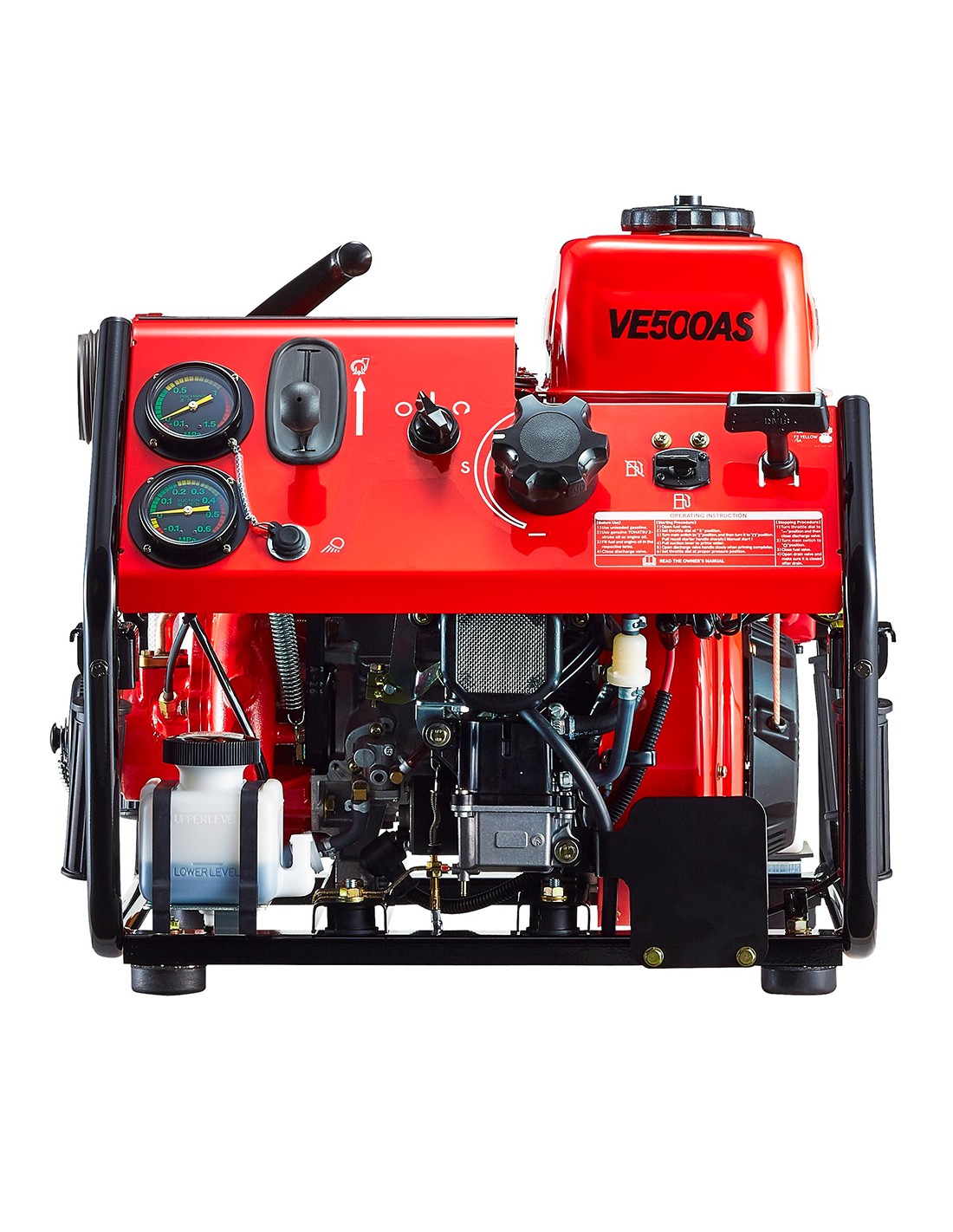

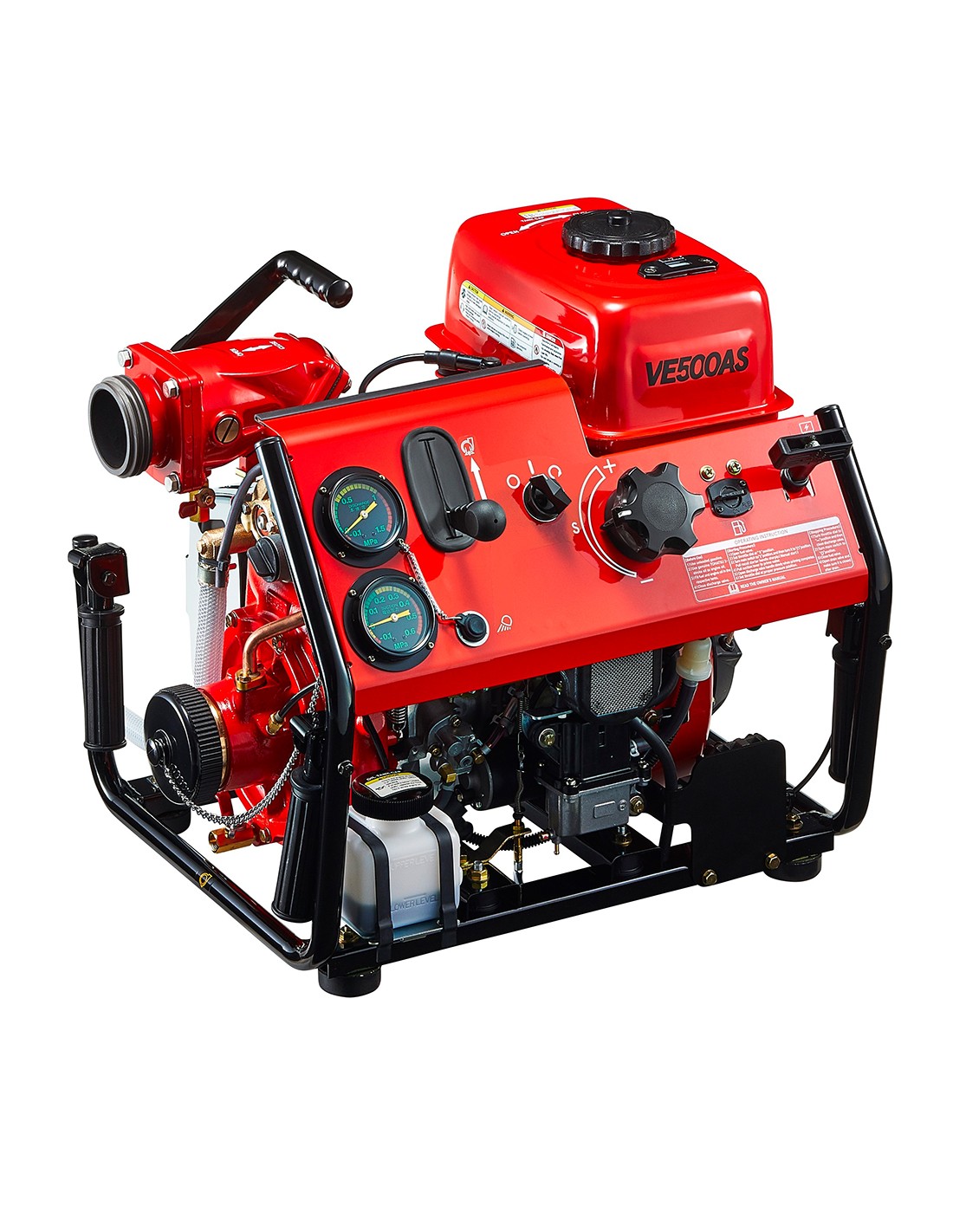

Light and compact, made of cast aluminium and bronze alloy, which makes it very easy to handle and transportable by one or two people. Power matched to the pump, which allows it to take in exactly the right amount of petrol and oil, in exact proportions. Warning by indicator light + buzzer when the oil level reaches ¼, silencer on the air intake and exhaust, itself air-cooled by air circulation, full cowling protection against water spray, ¼-turn ball valve outlet, dashboard, fitted with a pumped liquid pressure gauge, an engine oil pressure vacuum gauge, an accelerator, fuse.
Specifications:
- High-pressure engine-driven pump.
- Discharge outlet adjustable to 90°.
- Automatic choke.
- 1/4-turn ball discharge valve.
* The bonus: supplied with start-up service:
- Fitting and filling of battery.
- Fitting of suction piping.
- Fitting of discharge piping.
- Oil filling.
- Petrol filling, approximately 3 l.
- Pump start-up test.
- Test report: see attachment.
| Model | VE500AS |
|---|---|
| Reference | 225279 |
| Power (CV) | 11.7 |
| 2-stroke engine |
air-cooled |
| Fuel | petrol |
| Flow rate | 524 l/min / 6 bars |
| Particle size (mm) | 0.5 |
| Start-up | Manual + electric |
| Suction-Discharge | 2" 1/2 |
| Tank capacity (L) | 5.95 |
| Consumption (L/h) | 5.4 |
| Length (mm) | 555 |
| Width (mm) | 505 |
| Height (mm) | 537 |
| Empty weight (kg) | 50 |
After use and in the event of prolonged storage, open the valve under the carburettor to drain the bowl and thus avoid deposits in it.
