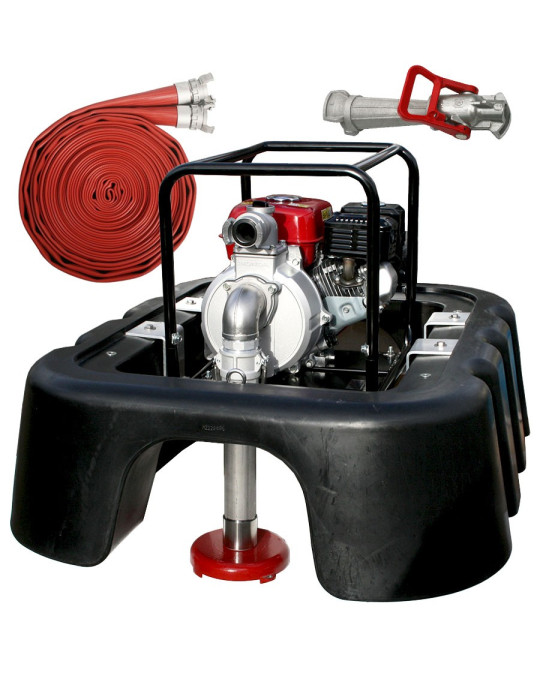

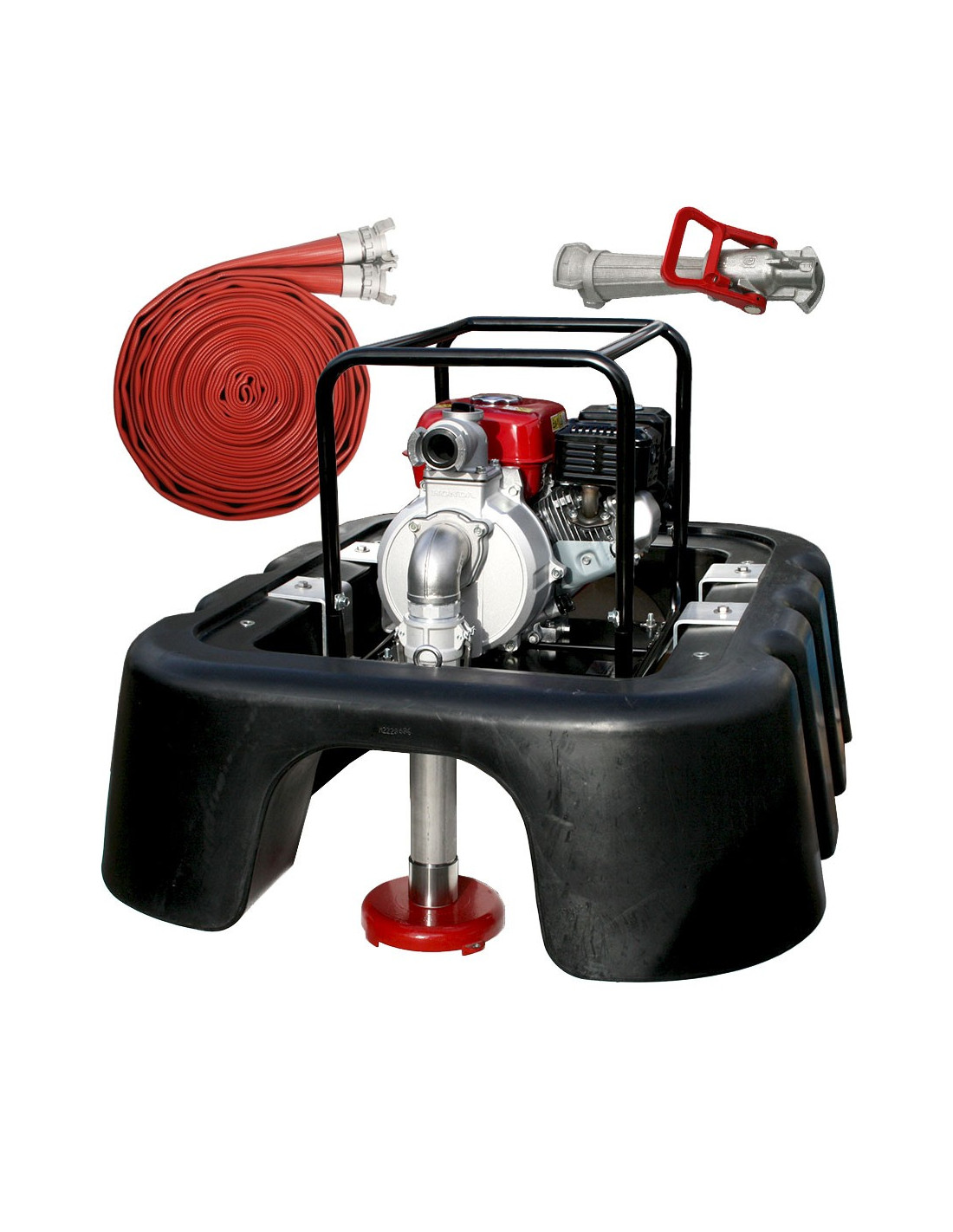

Honda WH20 XT EX engine-driven pump specifications:
- Pump body in pressure die-cast aluminium.
- Cast iron impeller and cast iron volute
- Silicon carbide mechanical seal.
- Anti-vibration rubber motor mounts.
- Honda GX 160 4-stroke petrol engine.
- Recoil starter.
Application:
- Pressure cleaning.
- Fire prevention.
- Transporting water over long distances.
Specifications:
- 1 4-stroke petrol engine-driven pump, GX 160 / clear water, Honda WH20 XT EX / PS 5 bar /
- 1 black polyethylene float, with 8 M8 inserts, designed for 100 kg of buoyancy.
- 2 aluminium Omega brackets + A2 stainless steel bolts.
- 1 316 stainless steel 90° elbow F/F 2".
- 1 316 stainless steel 2" spool, length 300 mm
- 1 aluminium cam adapter M DN50 + 1 aluminium cam coupler F DN50.
- 1 cast aluminium draining strainer with removable stainless steel suction grille.
- 1 aluminium DSP coupling 40 F 2".
- Aluminium DSP 40/45 flat fire hose, crimped - PS 20 bar / length 20m.
- 1 Aluminium fire-fighting lance with 3-position aluminium diffuser valve.
- With installation and maintenance instructions.
- CE certificate for the Honda WH 20 XT EX engine-driven pump.
- Spark plug wrench.
| Model | RADEAU-WH20 XT |
|---|---|
| Reference | 225256 |
| Displacement (cm³) | 163 |
| Max flow rate (m3/h) | 27.0 |
| Head (m) | 50 |
| Max pressure (bar) | 5.0 |
| Honda engine | GX 160 |
| Max. particle size (mm) | 3.0 |
| Suction | DN50 - 2" |
| Discharge |
DSP 40 |
| Maximum suction head (m) | - 8 |
| Running time (h) |
1.5 |
| Dimensions (mm | Length 1100 x Width 900 x Height 650 |
| Empty weight (kg) | 46 |
