Specifications:
- Pump body in pressure die-cast aluminium.
- Cast iron impeller and volute.
- Silicon carbide mechanical seal.
- Anti-vibration rubber motor mounts.
- Honda GX 160 4-stroke petrol engine.
- Recoil starter.
Application:
- Pressure cleaning.
- Fire prevention.
- Transporting water over long distances.

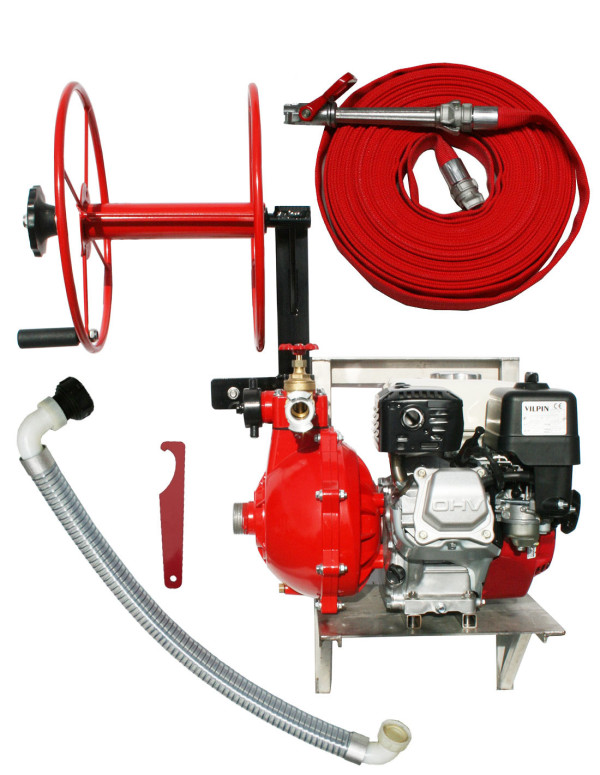

Composition:

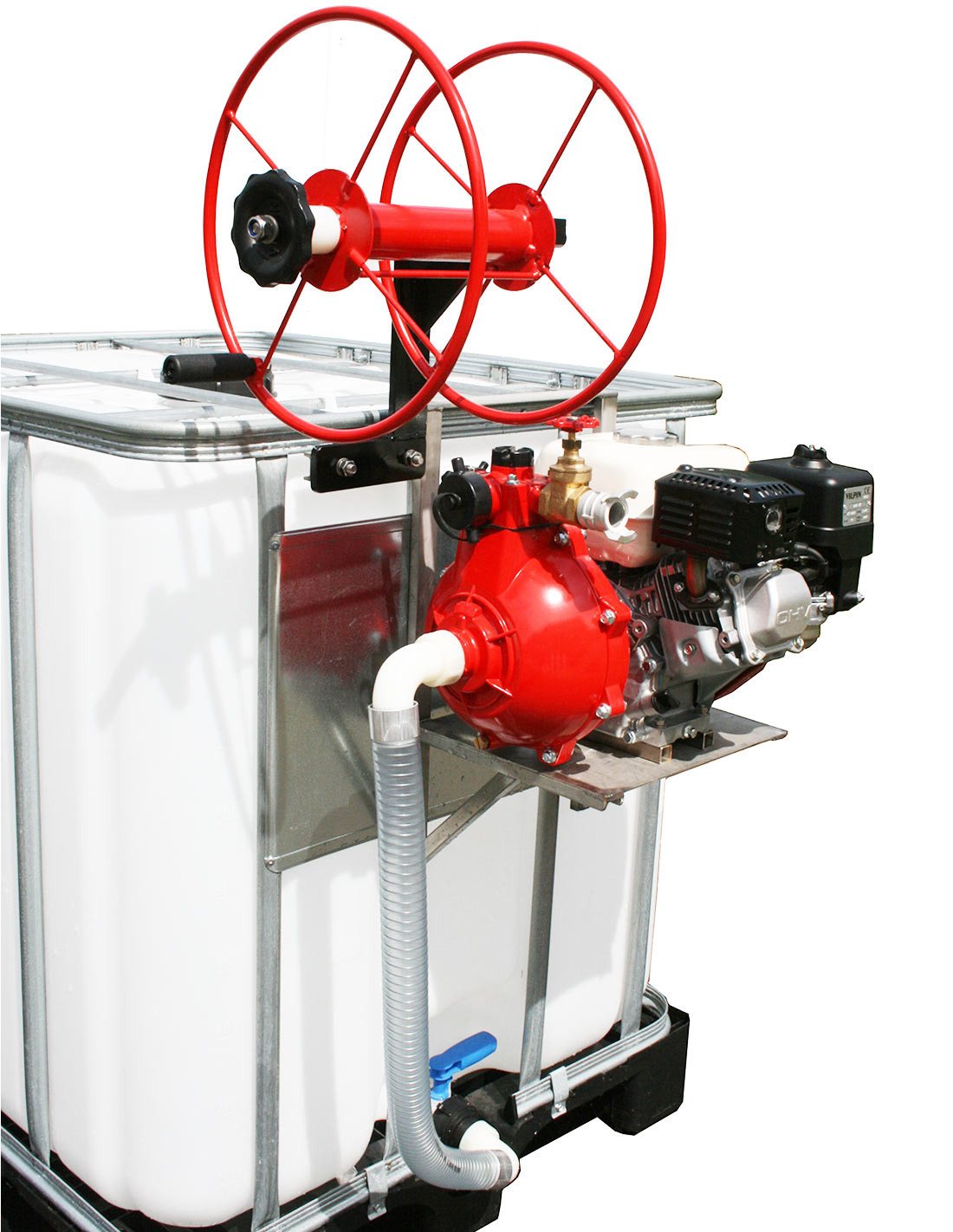

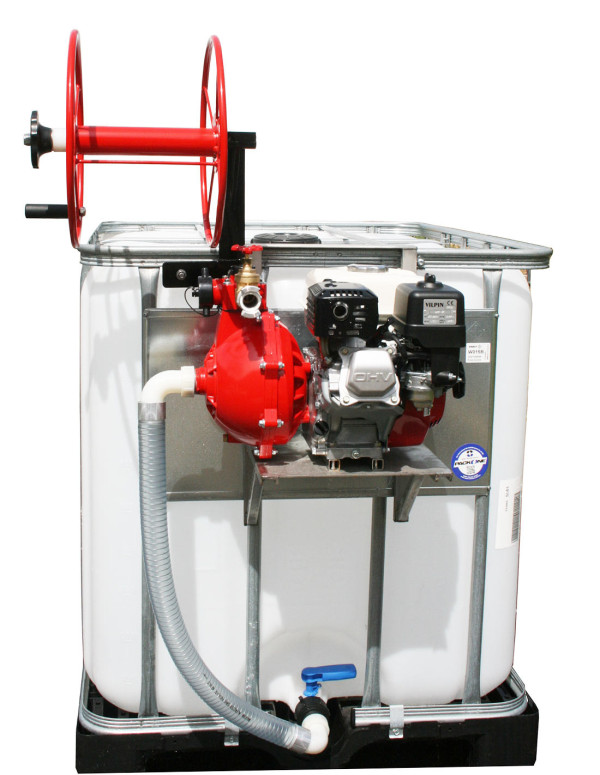

- 1 stainless steel chassis specially for IBC tank/container.
- 1 high-pressure self-priming engine-driven pump with Honda GX20 engine, 6.5 CV.
- 1 Reel with support for flat hose, capacity 50 m in DN25, with ergonomic drum lock (IBC FIRE 2 model).
- 1 IBC to BSP M 1" 1/2 adaptor fitting.
- 1 flexible ringed PVC suction hose DN40, length 1m, with two BSP F 1" 1/2 fittings.
- 1 DN25 discharge hose crimped with Guillemin couplings, length 20m.
- 1 3-position nozzle, Guillemin DN20 connection.
- 1 female Guillemin DN20 coupling with lock at discharge.
- 1 ball valve with handwheel at discharge.
- 1 tricoise hose coupling spanner.
- 1 maintenance and start-up instruction leaflet.
- CE certificate.
- 2-year warranty.
| Model | IBC FIRE 1 |
IBC FIRE 2 |
|---|---|---|
| Reference | 225282 | 225351 |
| Displacement (cm³) | 163 | 163 |
| Max flow rate (m3/h) | 20.0 | 20.0 |
| Max pressure (bar) | 8.0 | 8.0 |
| Honda engine | GX 160 | GX 160 |
| Max. particle size (mm) | 3.0 | 3.0 |
| Suction coupling | Hose BSP F 1" 1/2 |
Hose BSP F 1" 1/2 |
| Delivery coupling |
BSP M 1" 1/2 BSP M 1" Guillemin DN20 |
BSP M 1" 1/2 BSP M 1" Guillemin DN20 |
| Reel | WITHOUT | WITH |
| Sold | WITHOUT IBC | WITHOUT IBC |
| Running time (h) |
1.5 | 1.5 |
| Kit weight (kg) | 35 | 42 |
Customs number: 84138180 - Country of origin: Spain
