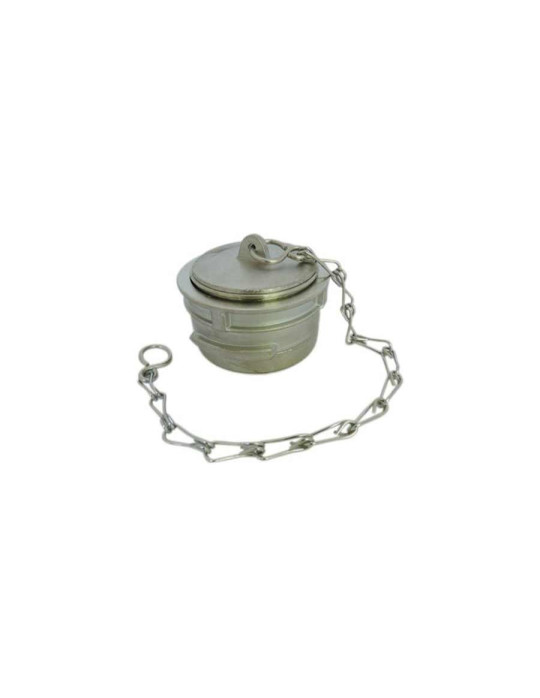

Stainless steel cap with lock and chain

Stainless steel cap with lock and chain

150512
Delivery 2 to 3 days
€22.92

€22.92 tax excl.

Stainless steel cap with lock and chain for symmetrical couplings. Available size from DN 20 to DN 100.

Model

Attributs
Image Ref. Model Unit price Avail. Buy
Stainless steel cap with lock and chain
150514 DN 65
€41.50
Available
Stainless steel cap with lock and chain
150516 DN 100
€71.58
Available
Stainless steel cap with lock and chain
150515 DN 80
€52.58
Available
Stainless steel cap with lock and chain
150513 DN 50
€31.58
Available
Stainless steel cap with lock and chain
150512 DN 40
€22.92
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

Specifications:
- Plug with 316 stainless steel lock (moulded).
- Cylindrical BSP tapping in accordance with standard NF EN ISO 228-1.
- Minimum / Maximum temperature: - 10°C + 180°C.
- Maximum pressure: 16 Bar.
- FKM gasket.

- Compliant with standard NF-E 29572 Material: Stainless steel

Diameter
nominal		 DN40 DN50 DN65 DN80 DN100
Reference 150512 150513 150514 150515 150516
Ø A (mm) 48 60 75.3 94 114
Ø B (mm)  54 68 83 101 121
Ø C (mm) 38 51 65 81.5 100
L1 (mm) 36 43 43 39 53
L2 (mm) 8 12.5 10.5 12 13
Weight (Kg) 0.36 0.49 0.67 1.03 1.79
