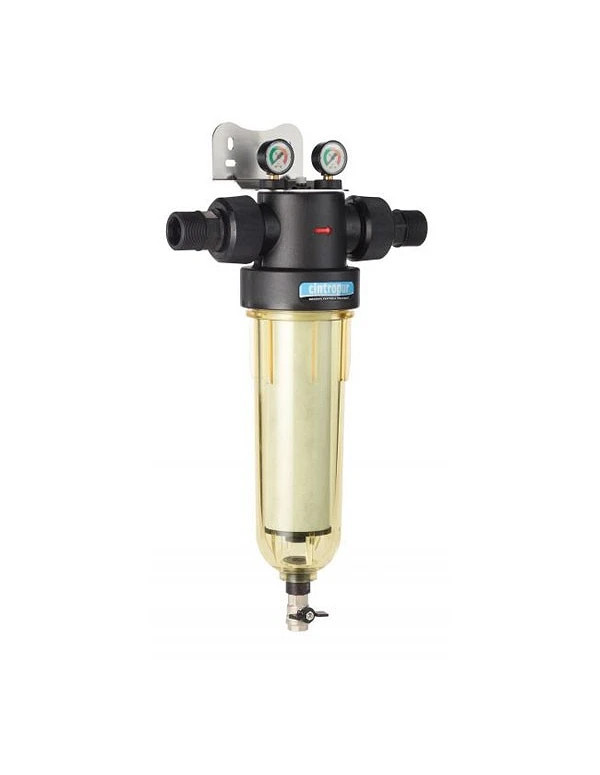

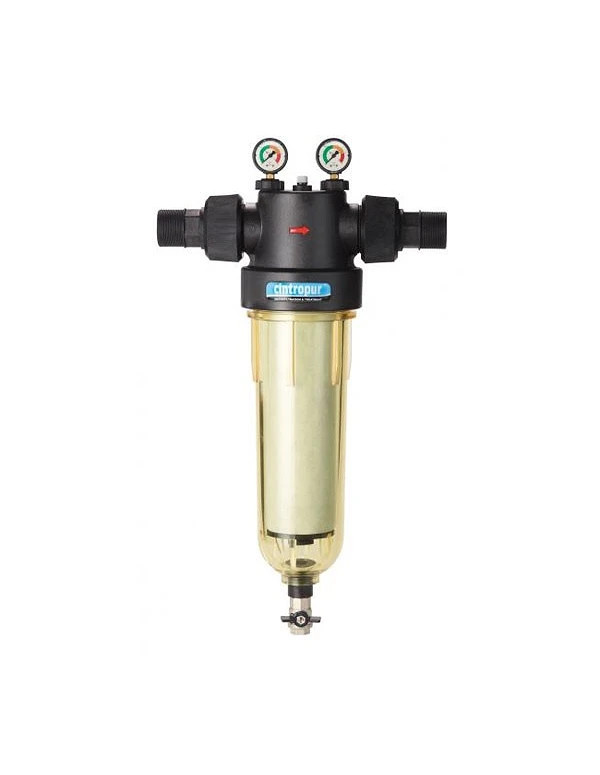

CINTROPUR NW500 filter

Principle:
The CINTROPUR® propeller transforms the water flow into a centrifugal effect by the precipitation of heavy particles in the bottom of the bell while the filter sleeve ensures filtration finish depending on the fineness chosen.


Applications:
- Filtration of collective sanitary networks.
- Filtration of water for drinking animals , watering, milking parlor supply ...
- Filtration of industrial water, process water.
- Filtration of rainwater.

Features:
- Manufactured in high quality synthetic material, CINTROPUR® filters are suitable for food and drinking water use.

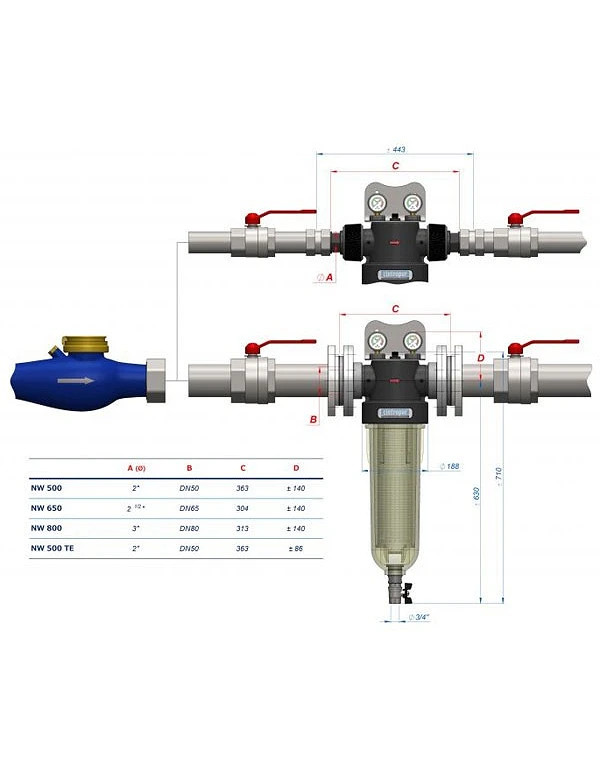

- Connection thread head, metric 76 for 500 heads.
- Centrifugal propeller with cyclonic effect of the water flow.
- Sleeve with 25µ mounted filter web. Possibility of filtration (5, 10, 25, 50, 100, 150 and 300µ).
- Optimal tightness thanks to the internal and external overmolded seals.
- 3/4 "drain valve.
- Glycerine bath gauges, indication of the network pressure.

The filter is delivered as standard with a 25μ filter veil and a release key.
