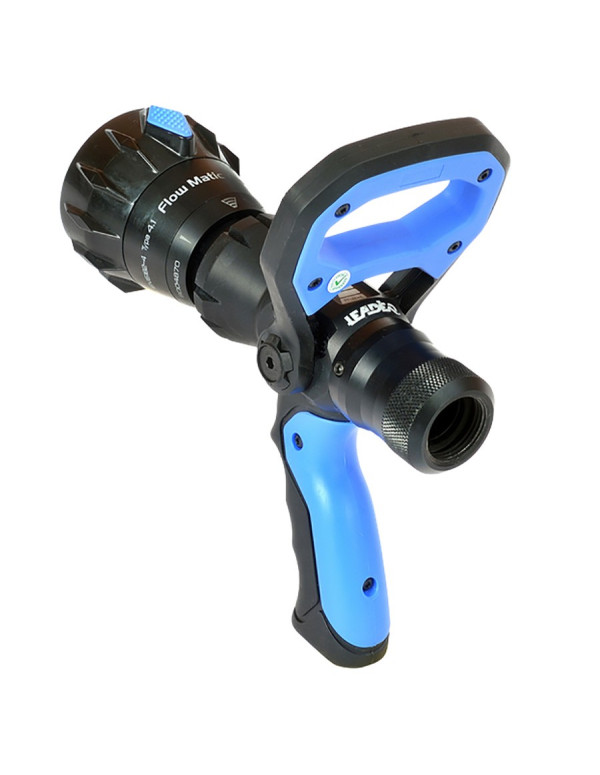

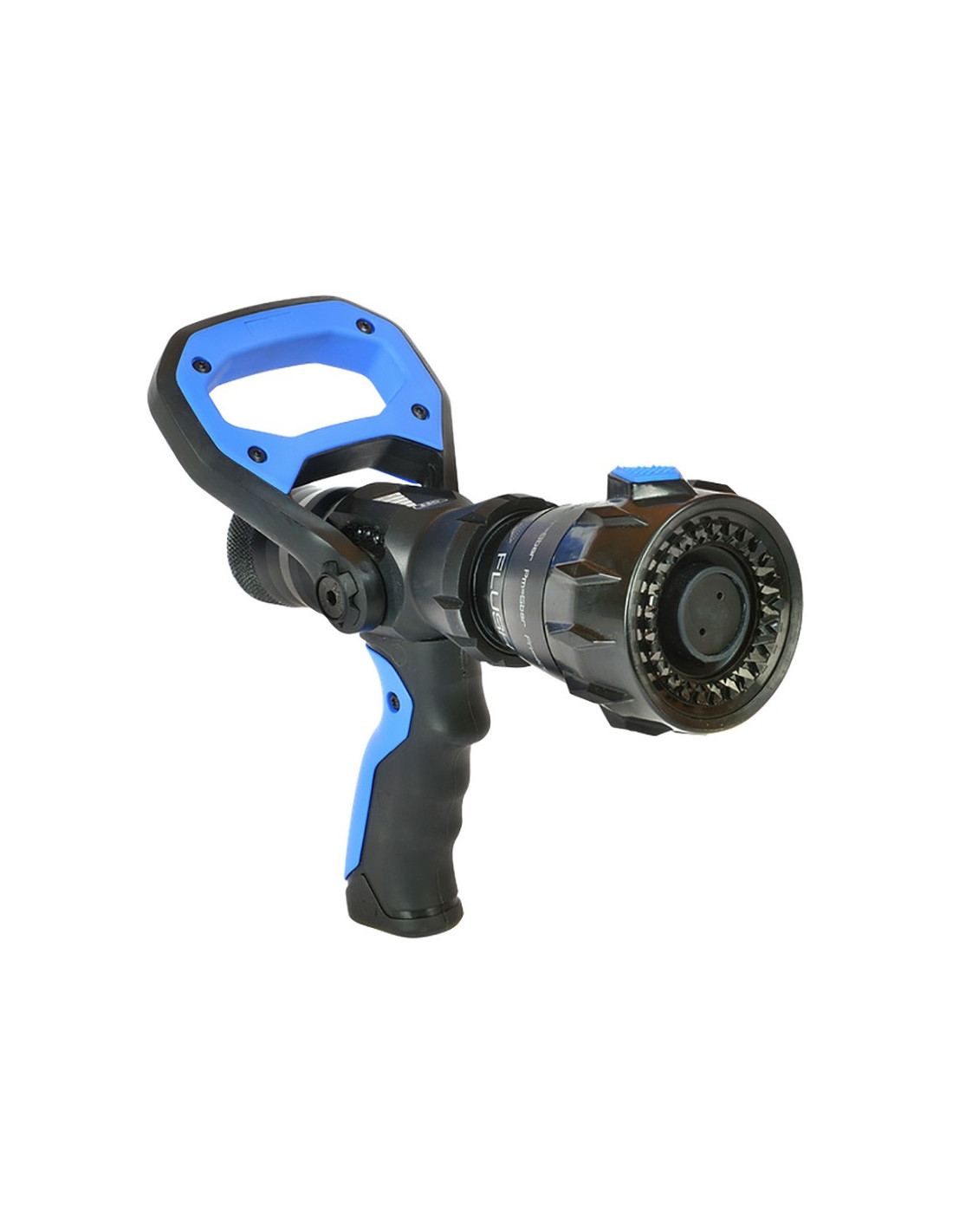

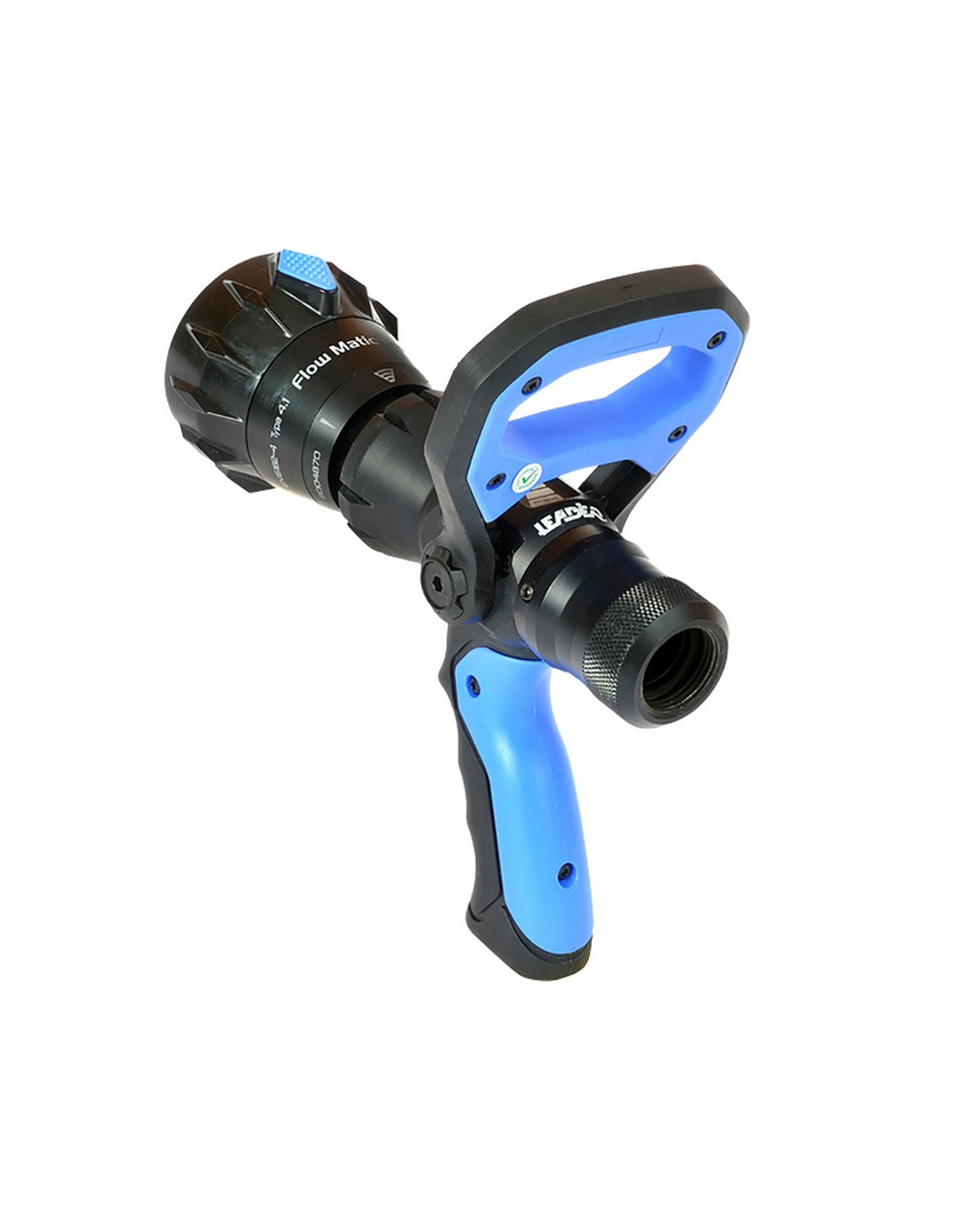

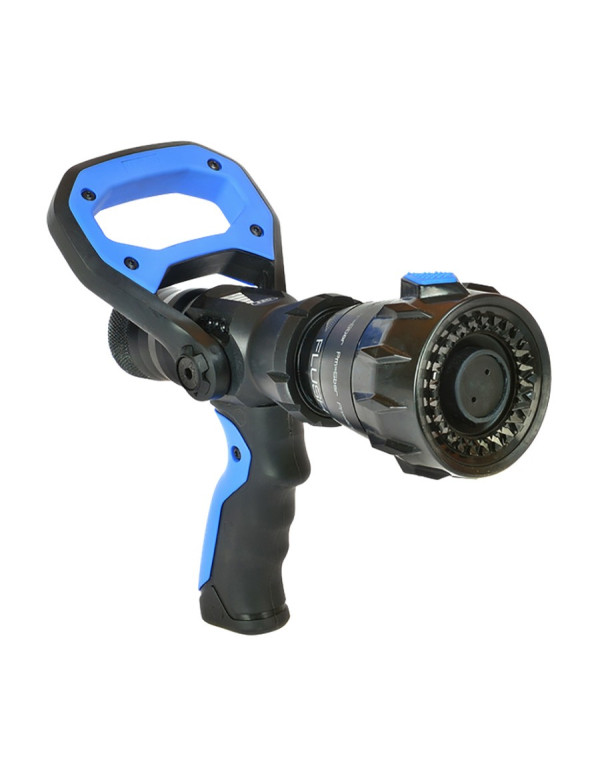

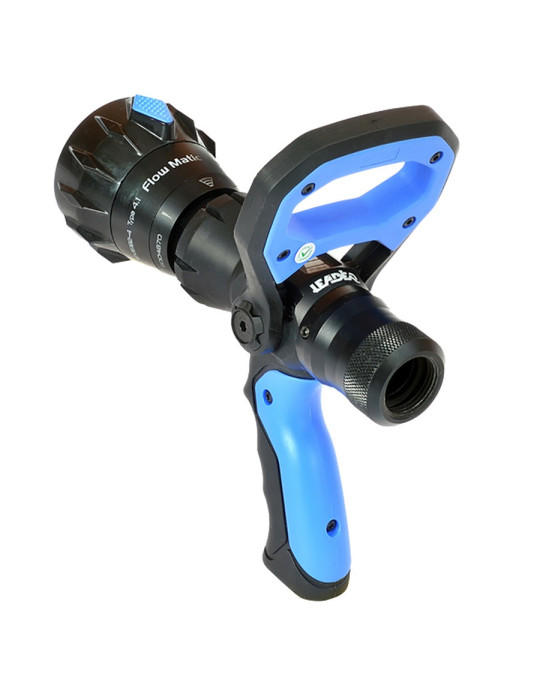

FLOWMATIC automatic fire-fighting nozzle

508364

The FLOWMATIC automatic fire-fighting nozzle is designed for unrivalled efficiency; it features pressure regulation that optimises its range even when the pressure drops and allows pulsing from 2 bar. Available from 0 to 500 l/min.

Optimum flow
Attributs
The product is not available for order.
Image Ref. Optimum flow
FLOWMATIC automatic fire-fighting nozzle
508364 0 à 250 l/min
FLOWMATIC automatic fire-fighting nozzle
508365 0 à 400 l/min
FLOWMATIC automatic fire-fighting nozzle
508366 0 à 500 l/min
Total: 0,0
All prices with tax included.
Description

The extremely easy-to-use flow handle, operating a sliding barrel, makes it possible to vary the flow rate without distorting the jet.

Specifications:

- PN40 = for high-pressure applications.
- Hard anodised aluminium body.
- 6 positions (5 + shut-off) controlled using a large handle for immediate response.
- Adjustment from straight jet to protective spray in a quarter turn.
- Stainless steel sliding barrel.
- A powerful diffusion cone to push back flames.
- Ideal for Pulsing with opening at 2 bar.
- Unbreakable teeth: no maintenance required.
- The polyurethane bumper: resists high temperatures, hydrocarbons and chemicals.
- Inlet filter for protection against debris (1.5 and 2’’).


Model

FLOWMATIC 250

FLOWMATIC 400

FLOWMATIC 500
Reference 508364 508365 508366
Flow rates from 2 to 6 bar
0 to 250 l/min 0 to 400 l/min 0 to 500 l/min
Weight (kg)
 1.65 1.75 2.2
Dimensions (L*w*h cm)
 25 x 12x 23 26 x 13 x 25
Material Hard anodised aluminium
Purge ring Yes
Format Compact Regular
Thread
 BSP F
Coupling inlet
 1" F 1.5" F 1.5" F
