Specifications:
- Motor casing, pump body and impeller in G20 cast iron.
- 416 stainless steel shaft.
- Mechanical seals: upper seal in silicon carbide, graphite; intermediate seal in silicon carbide; lower seal: lip seal, lubricated in oil chamber.
- Insulation class F.
- IP 68 protection.
- 4-pole motor 1450 rpm.
- Pumped liquid temperature: continuous operation = 40 °C and intermittent operation = 80 °C.
- HO7RNF power cable, length 10 metres.
- Maximum 30 starts per hour.
- 2-year warranty.

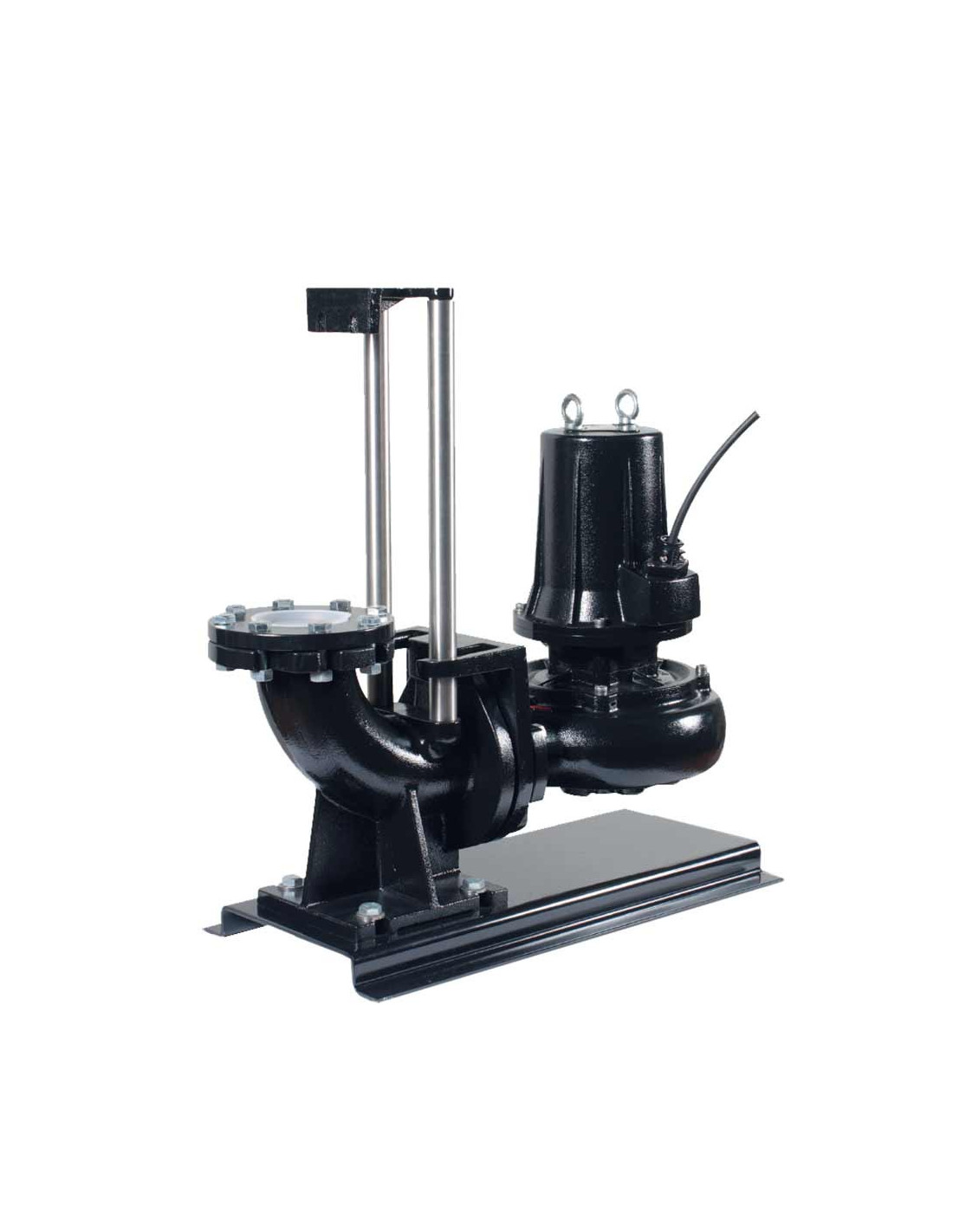

Composition of the set:
- 1 cast iron lift pump with vortex impeller, KV DN80 series, 4 poles.
- 1 steel plate support base, with epoxy treatment.
- 1 cast iron duckfoot bend, elbow with DN80 flanged outlet.
- 1 cast iron upper bracket, guide bar.
- 2 304 stainless steel guide bars, diameter 1", (2 x 2 metres).
- 1 DN80 counter flange, with 3" centre tapping.
- 1 set of bolts, (fixings and flanges).
| Model | PA-KV 200/80-4T | PA-KV 300/80-4T | PA-KV 400/80-4T |
|---|---|---|---|
| Reference | 210441 | 210442 | 210443 |
| Power (Kw) | 1.50 | 2.20 | 3.00 |
| Power supply | Three-phase | ||
| Current (A) | 3.6 | 4.9 | 6.5 |
| Speed (rpm) | 1450 | ||
| Max. head (m) | 8.0 | 10.0 | 12.0 |
| Max flow rate (m3/h) | 47.0 | 54.0 | 78.0 |
| Discharge | DN80 | ||
| Free passage (mm) | 79 | ||
| Weight (Kg) | 125.0 | 131.0 | 137.0 |
