Cast iron vortex impeller lift pump kit DN100 - PA-KV (4 poles)

Specifications:
- Motor casing, pump body and impeller in G20 cast iron.
- 416 stainless steel shaft.
- Mechanical seals: upper seal in silicon carbide, graphite; intermediate seal in silicon carbide; lower seal: lip seal, lubricated in oil chamber.
- Insulation class F.
- IP 68 protection.
- 4-pole motor 1450 rpm.
- Pumped liquid temperature: continuous operation = 40 °C and intermittent operation = 80 °C.
- HO7RNF power cable, length 10 metres.
- Maximum 30 starts per hour.
- 2-year warranty.

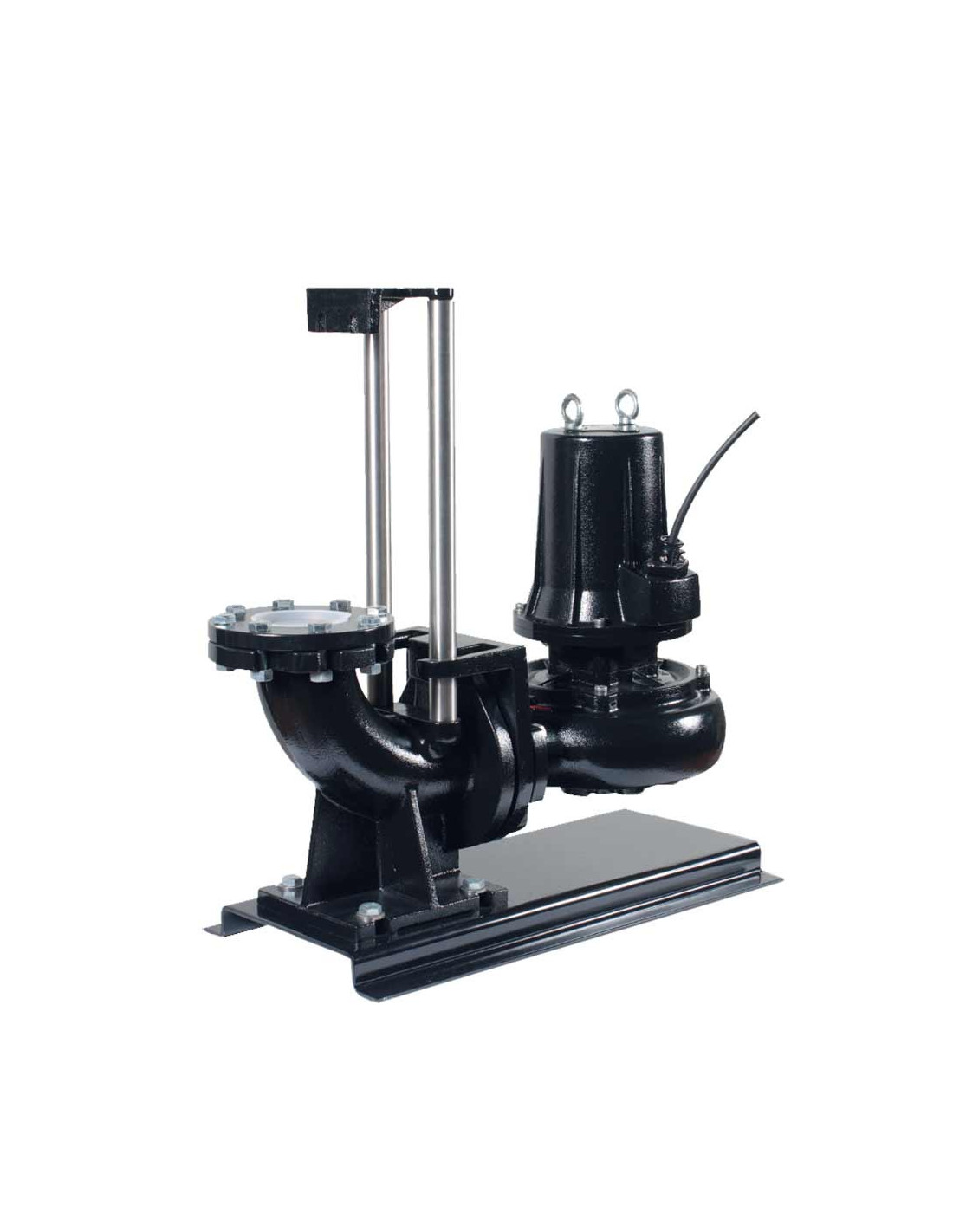

Composition of the set:
- 1 cast iron lift pump with vortex impeller, KV DN80 series, 4 poles.
- 1 steel plate support base, with epoxy treatment.
- 1 cast iron duckfoot bend, elbow with DN100 flanged outlet.
- 1 cast iron upper bracket, guide bar.
- 2 304 stainless steel guide bars, diameter 1", (2 x 2 metres).
- 1 DN100 counter flange, with 4" centre tapping.
- 1 set of bolts, (fixings and flanges).
