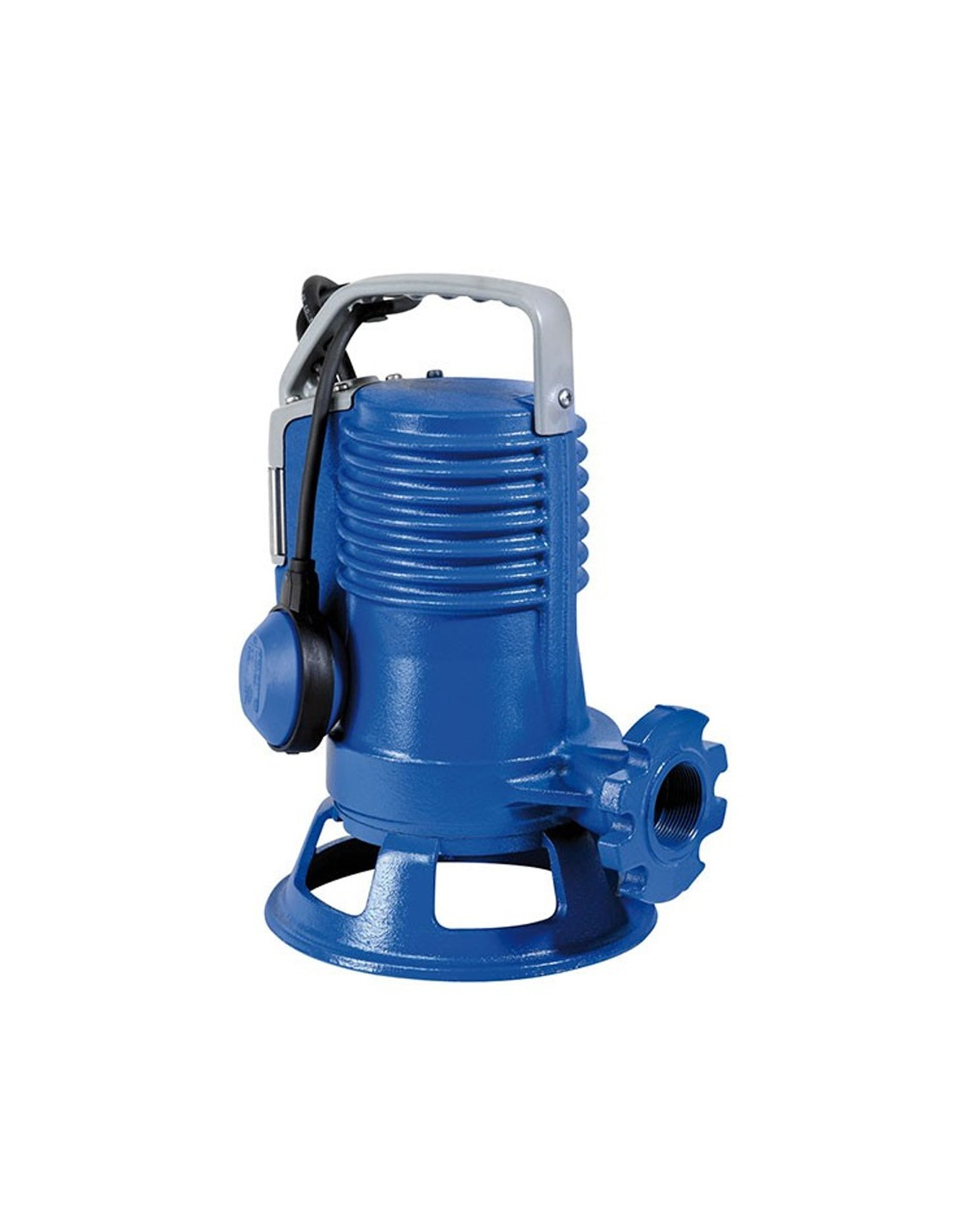

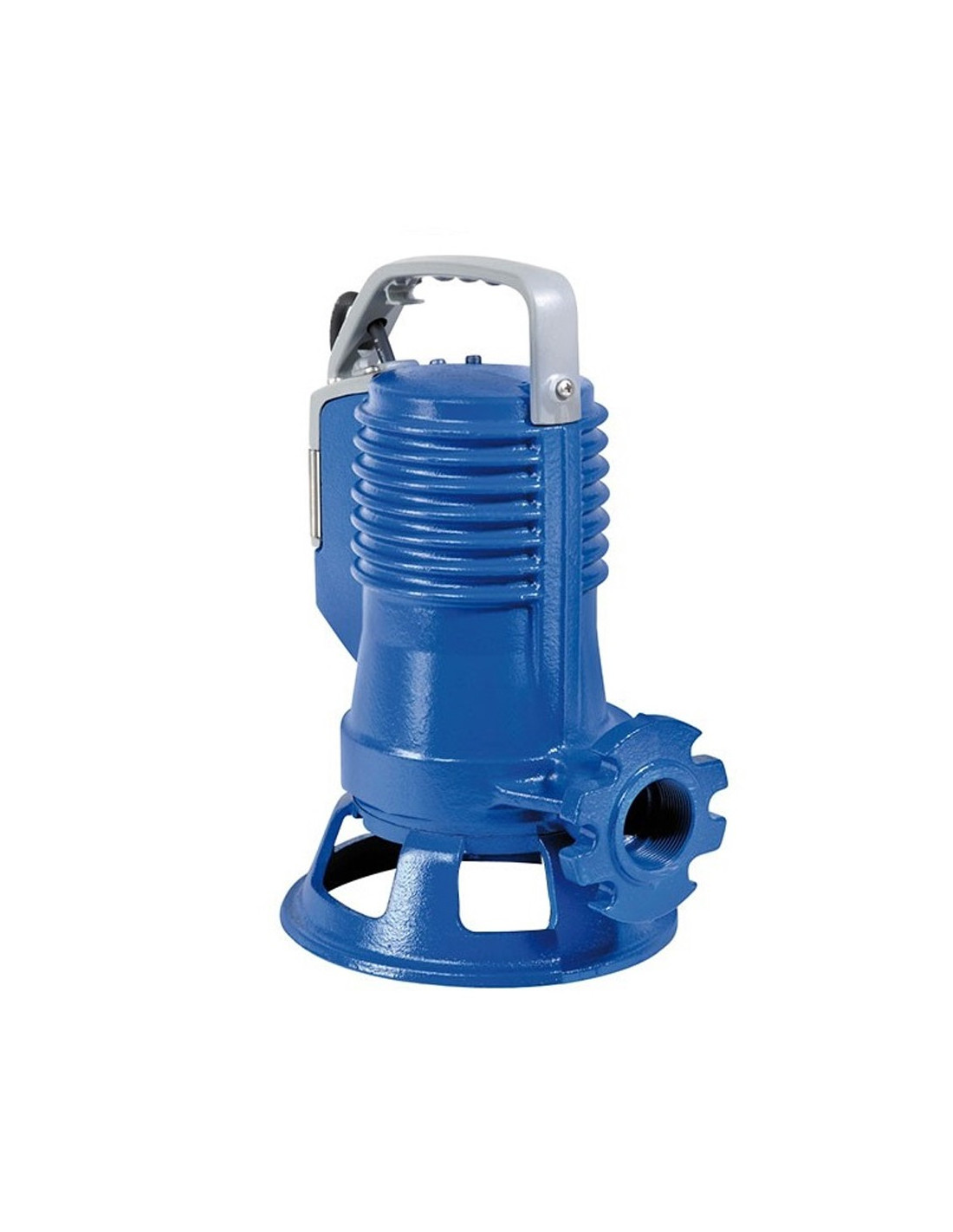

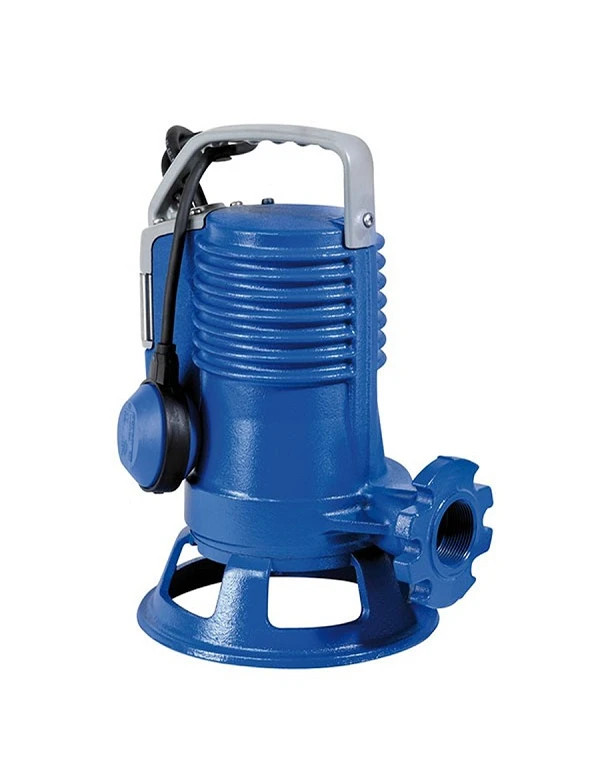

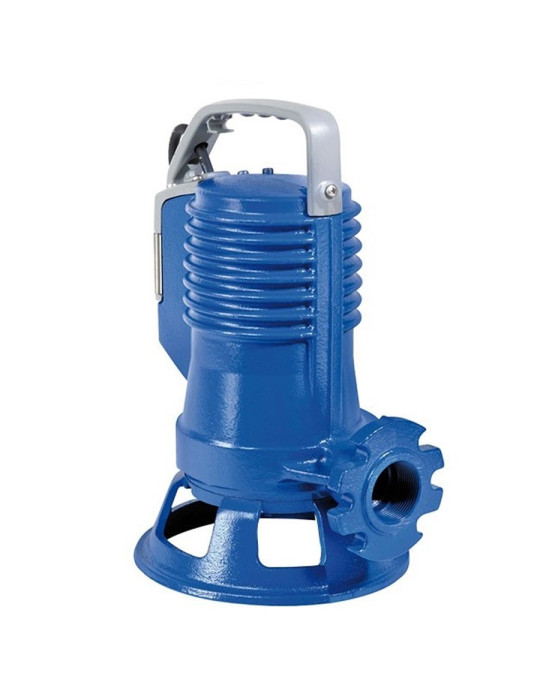

ZENIT GR BLUE PRO 150 grinder pump

210221
Last items in stock
$1,304.44

$1,304.44 tax excl.

rating Read the 2 reviews
Average rating: 9.5/10 Number of reviews: 2

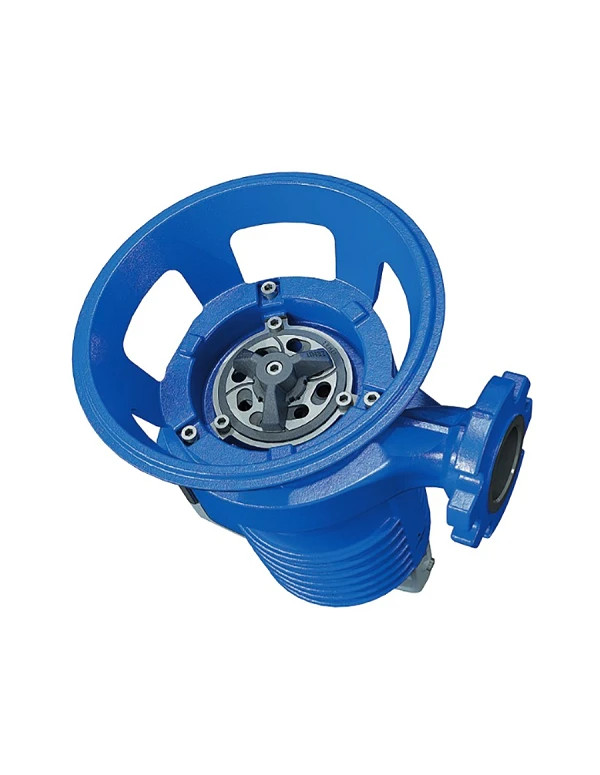

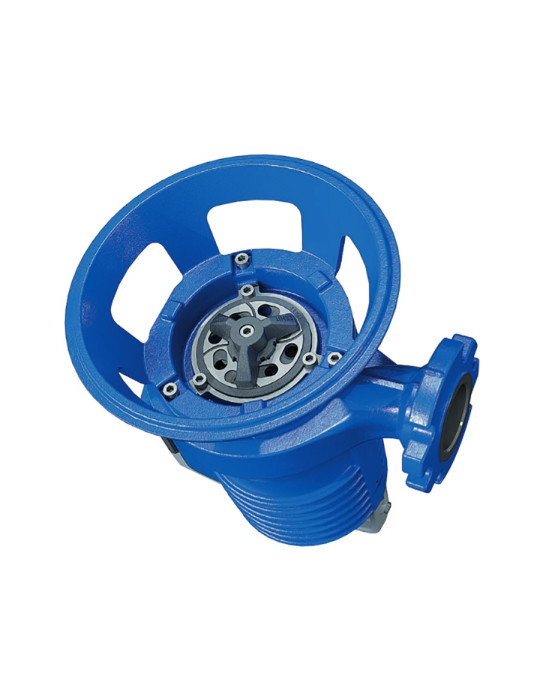

The GR BLUE PRO 150 pump is fitted with a macerator made up of a rotating blade and a machined disc with sharp cutting edges to finely cut fibrous matter, single-phase power supply, power 1.10 Kw, automatic on/off float switch. 3 models available, single-phase with float or three-phase, with or without float.





Model

Attributs
Image Ref. Model Unit price Avail. Buy
ZENIT GR BLUE PRO 150 grinder pump
210221 230V (avec flotteur)
$1,304.44
Available
ZENIT GR BLUE PRO 150 grinder pump
210222 400V (sans flotteur)
$1,289.54
Available
ZENIT GR BLUE PRO 150 grinder pump
210223 400V (avec flotteur)
$1,339.82
Available
Total: 0,0
All prices with tax included.
Available Product is available
Out of stock Product is no longer in stock
Can be back-ordered Product is no in stock, but is allowed to be back-ordered
Description

GR BLUE PRO 150 cast iron submersible pump with grinder system that macerates organic matter and solids. Thanks to the grinder system, the elements contained in the liquid are ground up, allowing lifting without the risk of clogging or blocking the pipes.

Use:
- Pumped liquid: waste water and loaded water that may contain solids and/or long, non-aggressive fibres.
- Temperature range: from 0°C to 40°C.
- Maximum immersion: under 20 m of water.
- Installation: fixed or portable in vertical position.
- Optional claw for GR.

Pump:
- Pump body, impeller and base in cast iron.
- Chrome-plated steel grinder system.
- Aluminium alloy handle.
- Double mechanical seal in oil bath, in silicon carbide.
- Horizontal outlet 1"1/2.

Motor:
- Submersible type, dry asynchronous for continuous duty, perfectly watertight encapsulated.
- Perfectly watertight and easily accessible housing for capacitor and cables.
- Class F stator.
- IP 68.
- Stainless steel rotor shaft mounted on selected, oversized lifetime-greased ball bearings to guarantee durability and quiet running.
- AUT. versions in Single-phase and Three-phase fitted with an adjustable level switch for automatic operation.
- Single-phase models supplied with starter box with 80 capacitor.
- Pump supplied with 10 metres of cable.

Model GR BLUE PRO
150 MONO AUT		 GR BLUE PRO
150 TRI		 GR BLUE PRO
150 TRI AUT
Reference 210221 210222 210223
Power (Kw) 1.10
Voltage (V) 230 400
Current (A) 7.5 3.2
capacitor (µF) 30 -
Height
max (m)		 21.1
Max flow rate (m3/h) 18
H max
immersion (m)		 20
Ø
discharge 		1" 1/2 Female
Float
switch		 WITH WITHOUT WITH
Cable
electrical (m)
 10
 Weight (Kg) 24



Dimensions:

GR BLUE
150 PRO		 A B C D E F G H J Weight
(Kg)
285 125 410 100 G 1" 1/2 230 14 90 90° 24



ZENIT GR BLUE PRO 150 grinder pump











Possible installations:

ZENIT GR BLUE PRO 150 grinder pump





Product Details
Attachments
Comments
All product reviews comply with DIRECTIVE (EU) 2019/2161
rating 10
04/12/2018
Hubert
Pompe broyeuse
rating 9
09/26/2017
Patrick
Tout à fait le produit adapté à mes besoins venant compléter en pompe de secours la station de relevage Blue box Zenit. Service après vente à la hauteur. Mci H2o Patrick Touati
